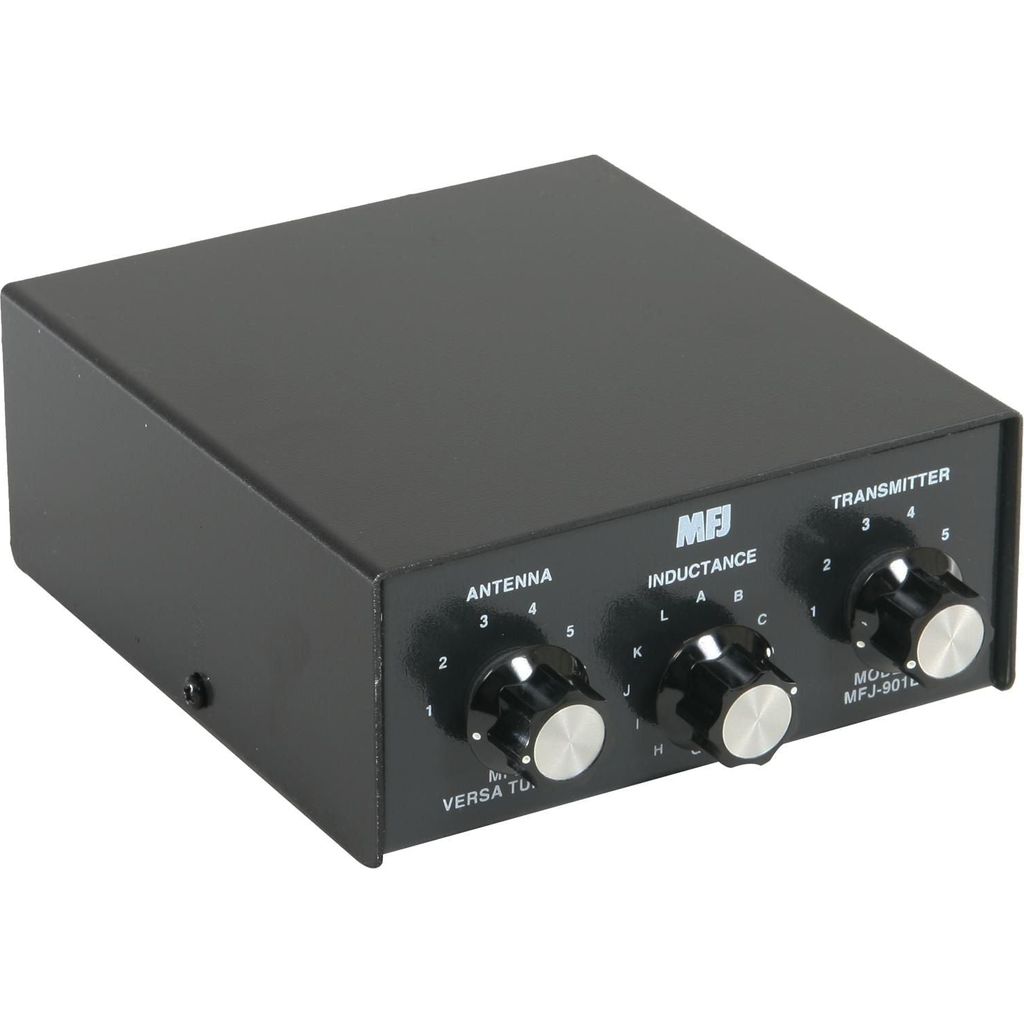

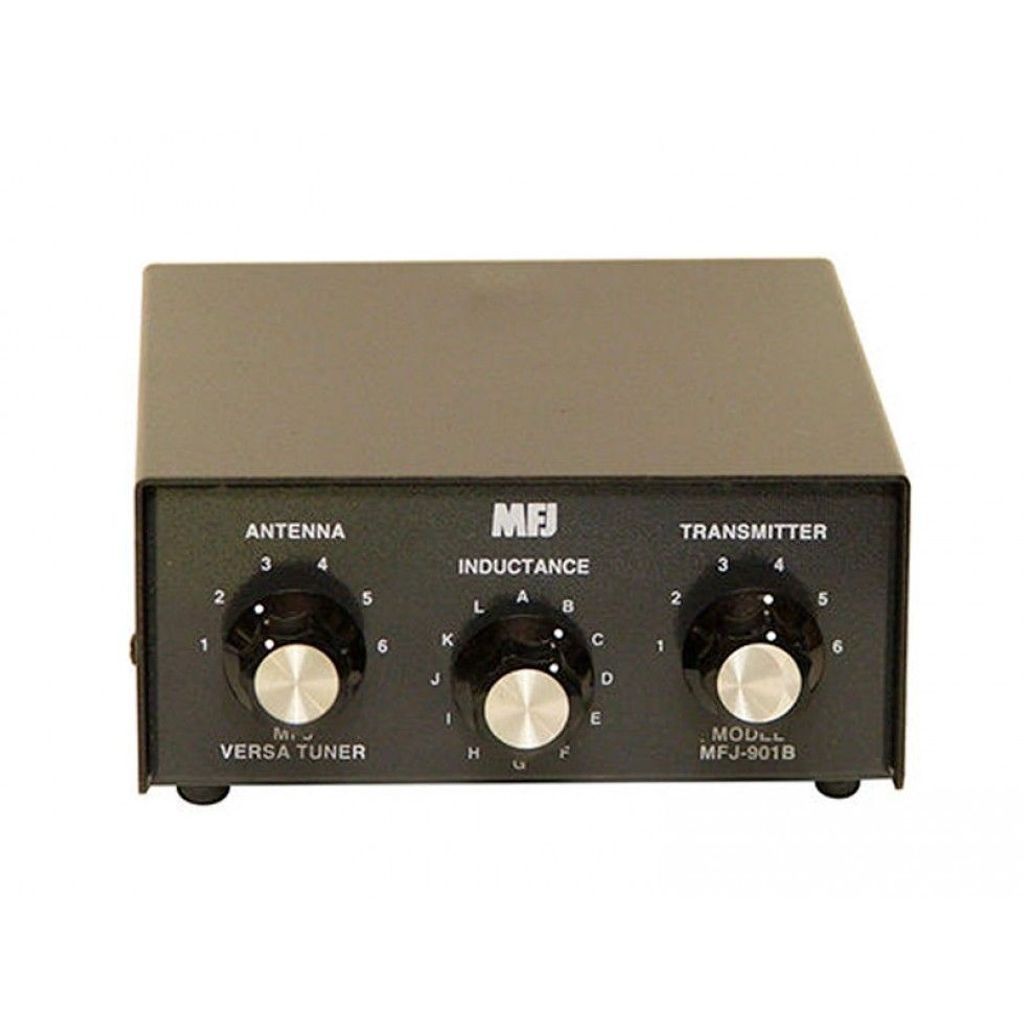

MFJ-901B Antenna Tuner is MFJ's smallest and most affordable 200-Watt PEP Versa Tuner. They're designed to match virtually any transmitter to almost any antenna. This includes dipoles, inverted-Vs, random wires, verticals, mobile whips, beams, and others fed by coax lines or single wire from 160 through 10 Meters.
A 12-position rotary switch lets you select the necessary amount of inductance required to reach resonance, while a pair of air-variable capacitors balances the transmitter and antenna impedances. For antennas that use balanced lines, the MFJ-901Bs have a built-in 4:1 balun. That's versatility!
If you're on a tight budget, but still need a durable 200-watt antenna tuner to move around the ham bands, consider one of these MFJ-901B Antenna Tuners available from Techoman!
Specifications:
- Type: Manual versa tuner
- Frequency: 1.8-30MHz
- Power: 200 Watts
- Size: 135 x 150 x 60mm
- Weight: 760g

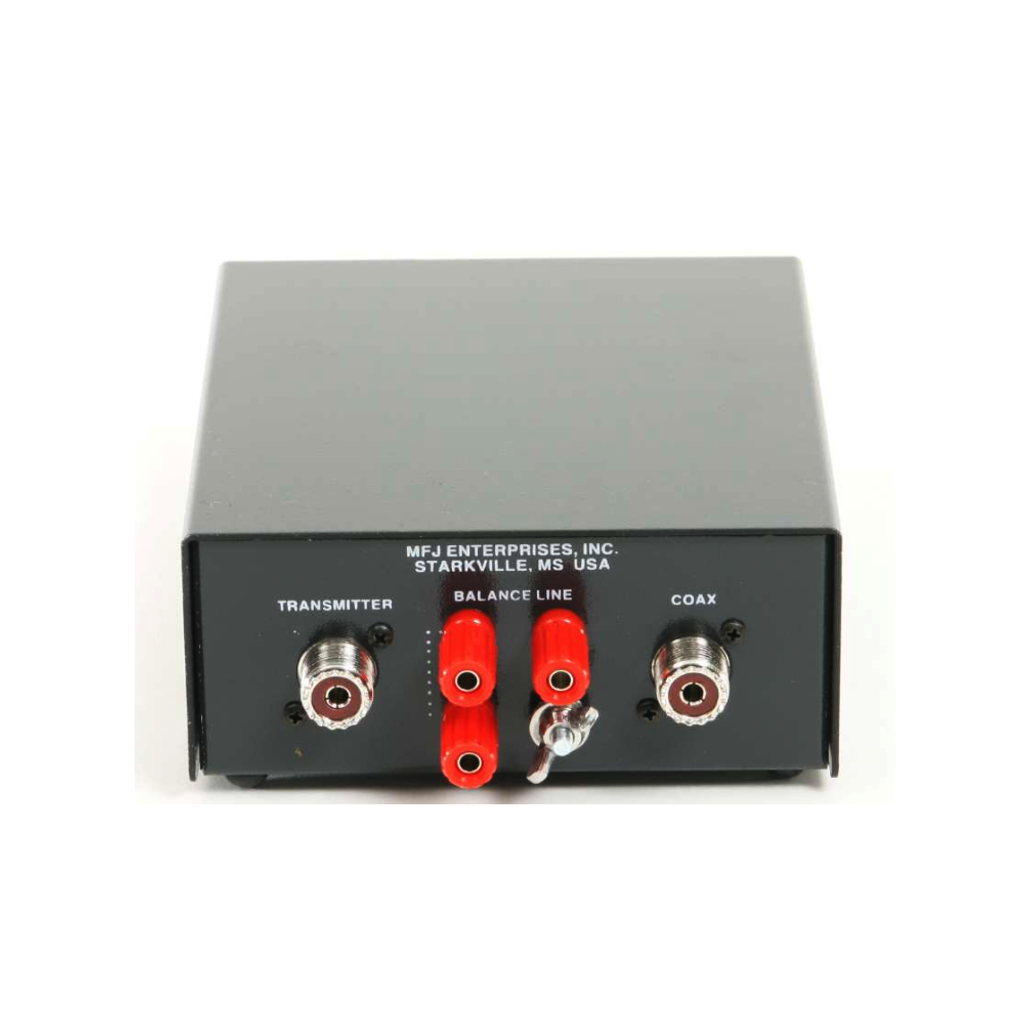

- Sockets: SO239 Terminals for wire and balanced lines
- Internal: 4:1 balun
- Earth connection
- Inductor switch
Package:
1x MFJ-901B 1.8-30 MHz HF Tuner 200 Watt
