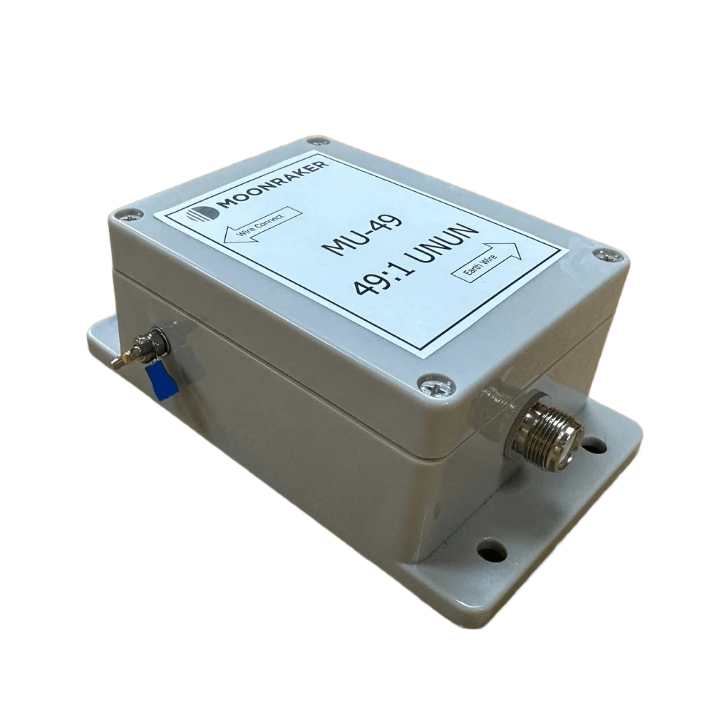

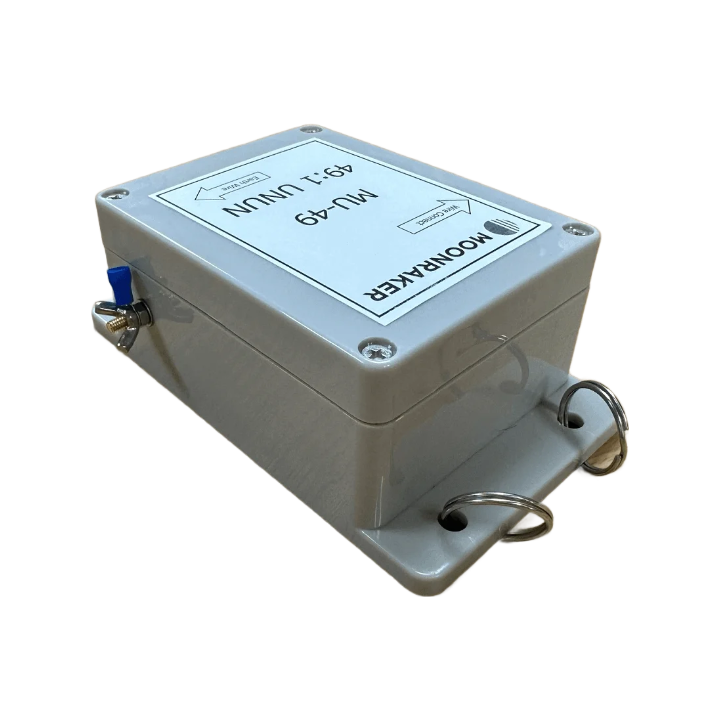

This high power matching transformer is designed for Multi-Band End-Fed Half-Wave antennas, suitable for both home and field use. By simply adding some antenna wire, you can cover multiple bands. For instance, attaching 40m of wire allows for operation on 80, 40, 20, 15, and 10 meters.
Technical Features:
- Type: 49:1 Unun
- Frequencies: 3.5-30 MHz
- Maximum Power: 1KW Power Handling (SSB PEP). Digital Data Modes Maximum 200 watts
- Insertion loss: 0.3 to 1.65 dB depending on frequency
- Connection: SO239
