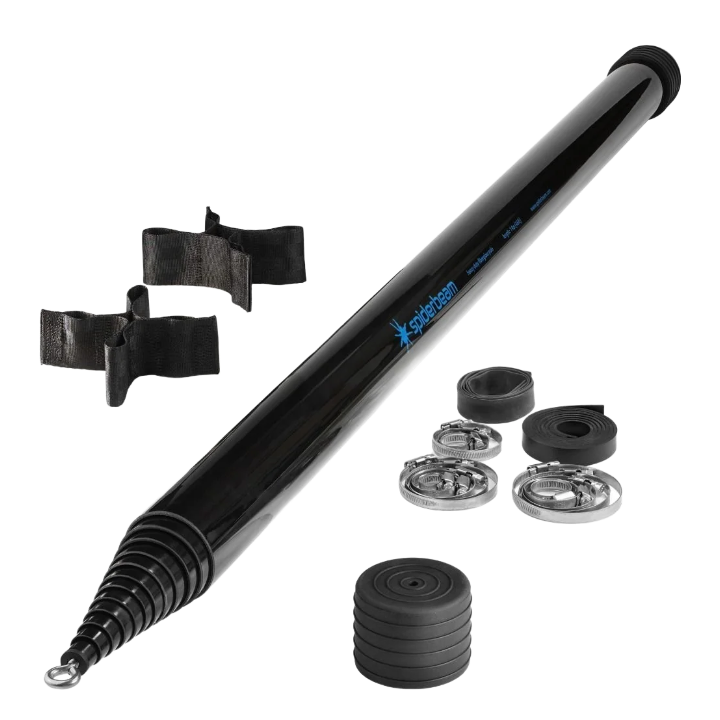

In this SET2 of the new 12m XHD mast the tip here is just under 2cm and is therefore super stable and probably stiffer than all FG telescopic mast tips on the world market.
The enclosed threaded plug with metric M6 metal thread is used in this tip. All possible M6 connectors can now be screwed into the threaded plug (adapter). We supply a matching stainless steel eyebolt as standard. Of course, other connectors like u-bolts, bolts etc with an M6 thread can also be screwed in.
This way an application weighing up to 1 kg can be attached at the very top of this pole. This SET 2 also contains the material to equip the pole with rubberized clamps and the 2 guybelts.
This extra heavy Duty fiberglass pole version (XHD) is perfect for installing small antennas at a height of 12m. A single person can easily erect the mast within a few minutes.
Features
- Full height (length): 12m
- Transport length: 1.19m
- Weight: 4.9kg (with accessories 5,4kg)
- Diameter bottom: 65.5mm (with rubber caps approx. 75mm)
- Diameter of the top segment: 17mm.
- Wall thickness: 1.5mm (top) - 2.2mm (bottom)
- Number of segments: 12
- Material: Fiberglass, black, UV-resistant, multi-layered winding and specially reinforced.
