26m "Skyscraper" This pole puts serious 160m activities into a new perspective
Just add a few top hat wires and enjoy operating with a full size 160m vertical that can be put up within less than an hour.
This pole opens the door to building portable 160m 4-square arrays and other serious low band fun like vertical dipole arrays on 40m, or a 20/15/10m 1 element quad at 20m height above ground, etc.
Installation
- Put the mast together on the ground, but leave the bottom 4 sections retracted.
- Walk up the mast into its vertical position and loosely tighten the guy lines.
- Push the telescopic sections always approximately 50cm up until the guy lines are tight, and fasten the clamp so the segment doesn't slide down anymore.
- Loosen one or two guy lines a little bit again.
- Push the segment again approximately 0.5m up until the guy lines are tight, and fasten the clamp.
- Repeat these steps until all 4 bottom segments are fully extended.
- Fix / align the guy lines and you are done.

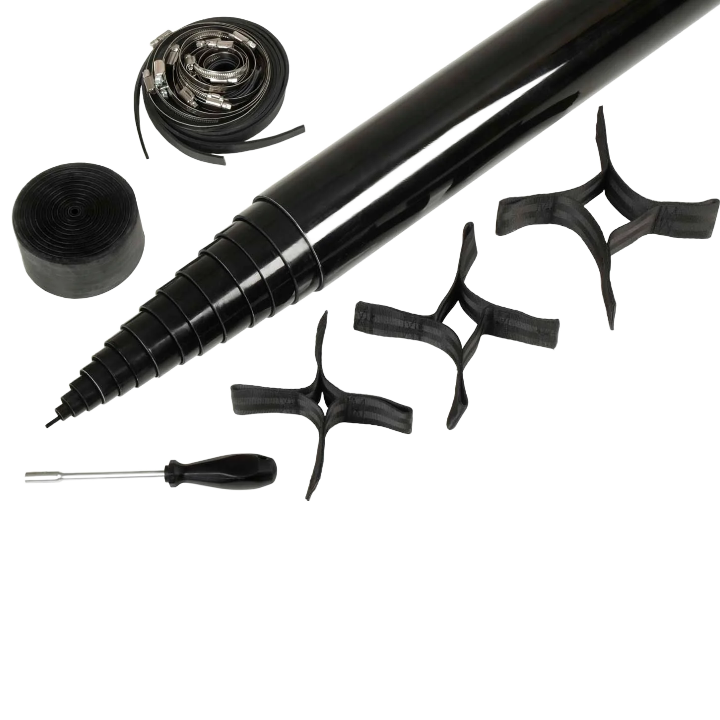

The pole comes complete with a set of 14 rubber padded stainless steel clamps and 3 guy rings made from strong belts, for guying the mast above the 4th segment, above the 7th segment, and above the 11th segment.
The best suitable rope for the lower two guy lines (above segment nr. 4 and 7) is 2mm Kevlar/Mastrant rope. For the upper guy line (above segment nr. 11), 1mm is suited best.
