Spiderbeam 5
The portable Spiderbeam is a DXpeditioner's dream antenna.
It is a fullsize 5-band yagi, consisting of 5 interlaced monobanders, in a lightweight and durable construction made of fiberglass and wire. All parts are made from high quality materials resistant to weather, UV rays and corrosion.

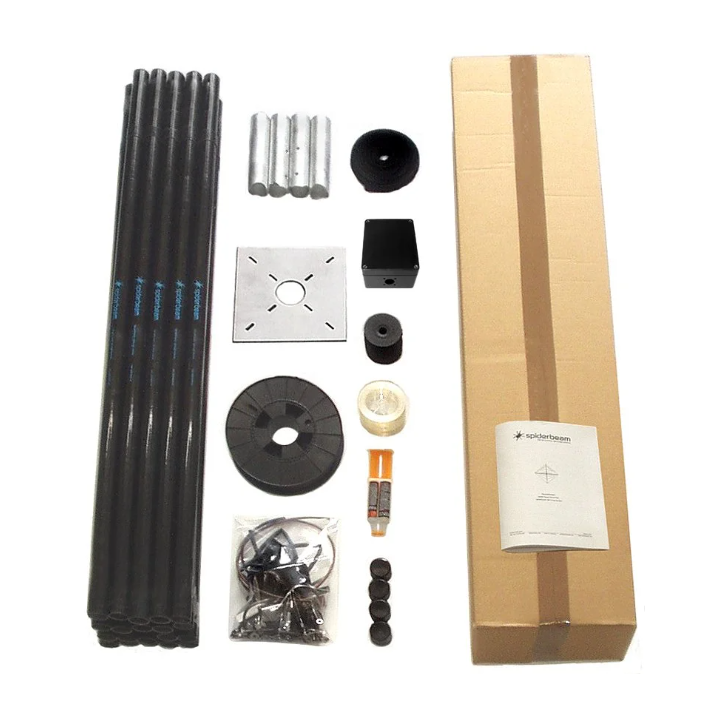

Putting together this antenna kit will be a fun and educational project. It contains all the necessary parts to make a 100% complete antenna (exactly as described in the construction guide - including some prefabricated parts). Nothing beats the satisfaction of cracking pile-ups with an antenna you built with your own hands.
Specification
| 20m | 17m | 15m | 12m | 10m | |
| No of Elements: | 3 | 2 | 3 | 2 | 4 |
| Forward Gain @10m height [dBi] | 11.7 | 10.5 | 12.3 | 10.5 | 12.6 |
| Front/Back Ratio [dB] | 15-20 | 20-25 | 20-25 | 10-12 | 18-22 |
| SWR | <1.5 | <1.5 | <2 | <1.5 | <2 |
| Max Power: | 2000W - Balun included |
| Impedance: | 50 Ohm - single feedline |
| Boom Length: | 10m (33ft) |
| Turning Radius: | 5m (16ft) |
| Wind Load Area: | 0.35 sqm (3.8 sqft) |
| Weight: | 7.5Kg (16lbs) |
| Transport Size: | 120x27x18cm (47x11x7") |
