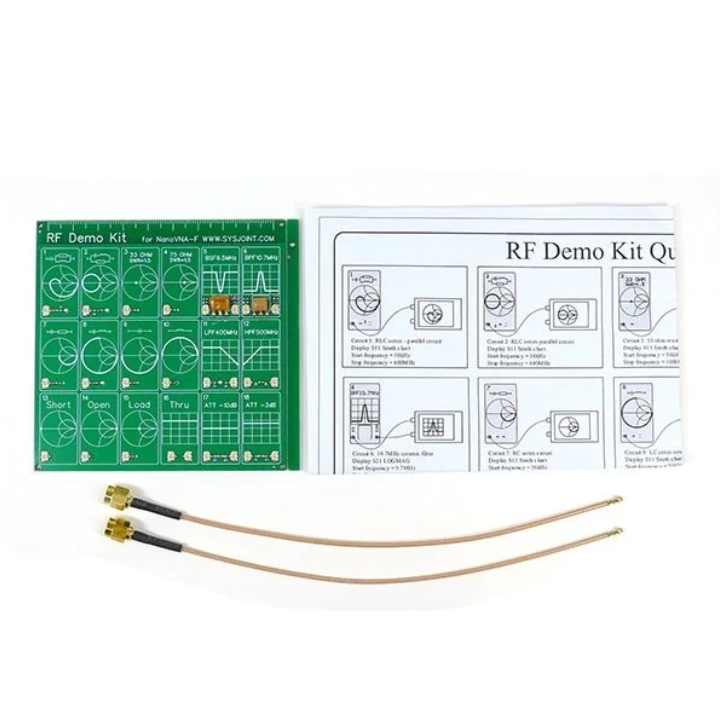

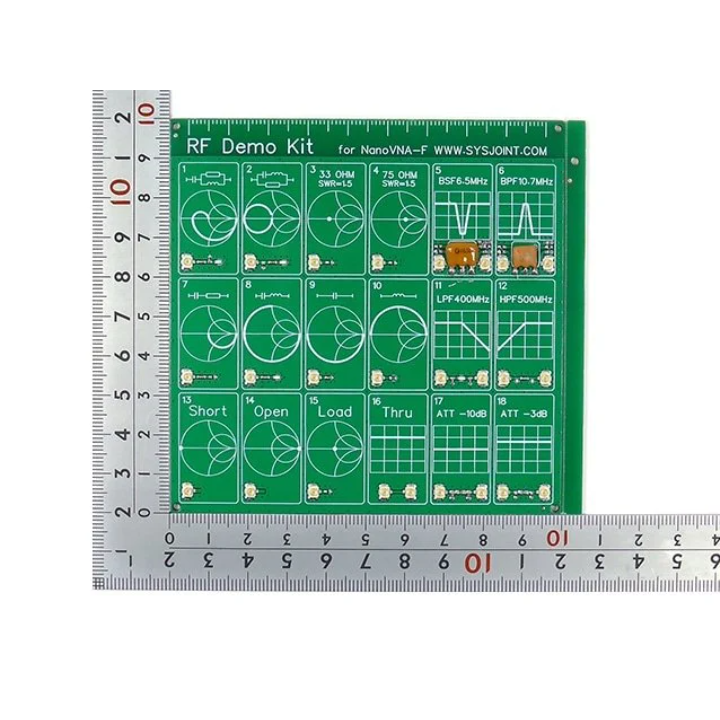

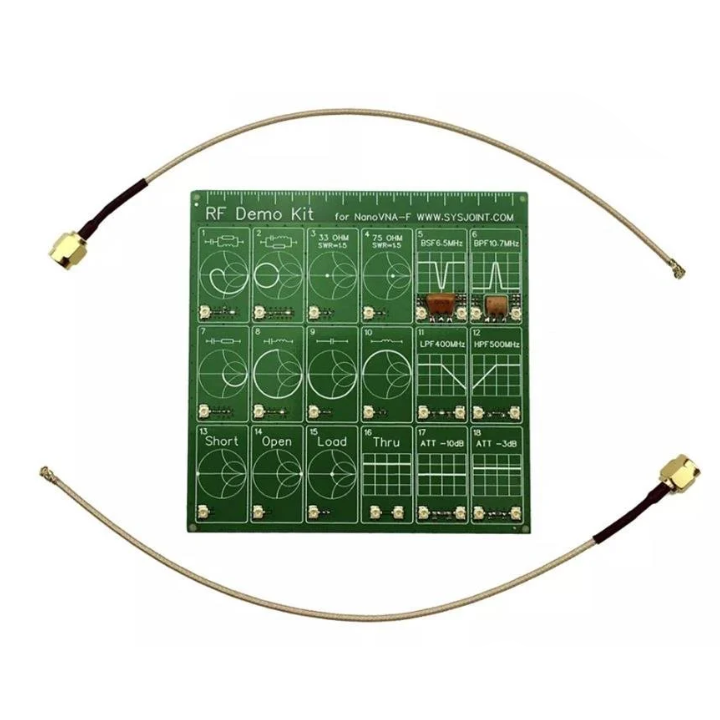

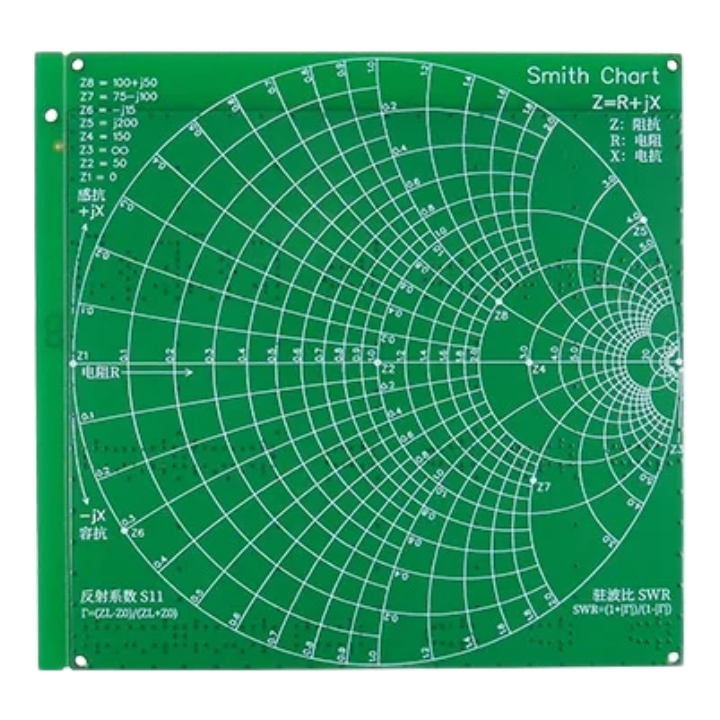

This CHELEGANCE RF Demo Kit for VNA is a PCB test board and learning tool for use with a Vector Network Analyzers, such as the Chelegance NanoVNA-F. This helpful demo kit includes two 6.8 in. RG178 coaxial cables with IPX to SMA male connectors to connect to one of the sample circuits on the 3.9 x 3.9 in. test board to your VNA. These boards add another dimension to understanding VNA's and for testing your VNA and building practical experience.
"Chelegance Quality - Made by Hams, for Hams".

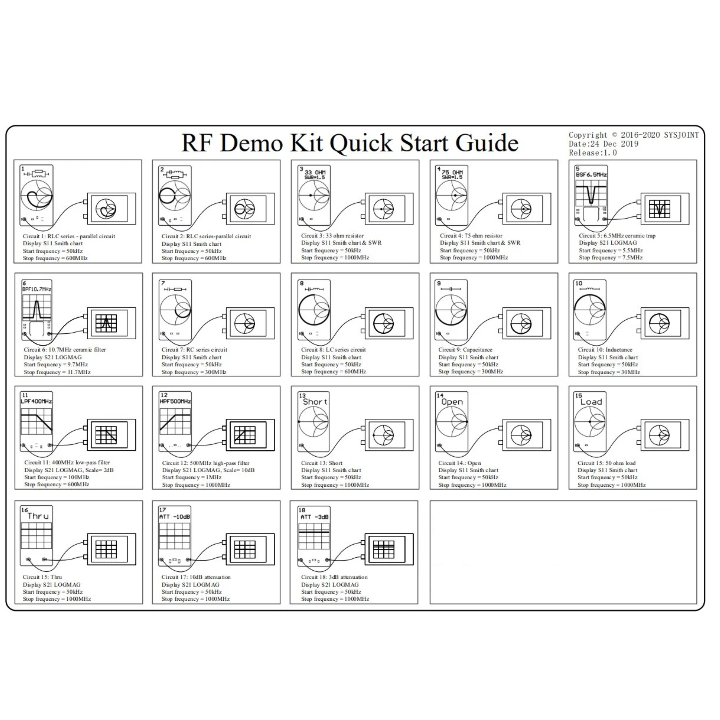

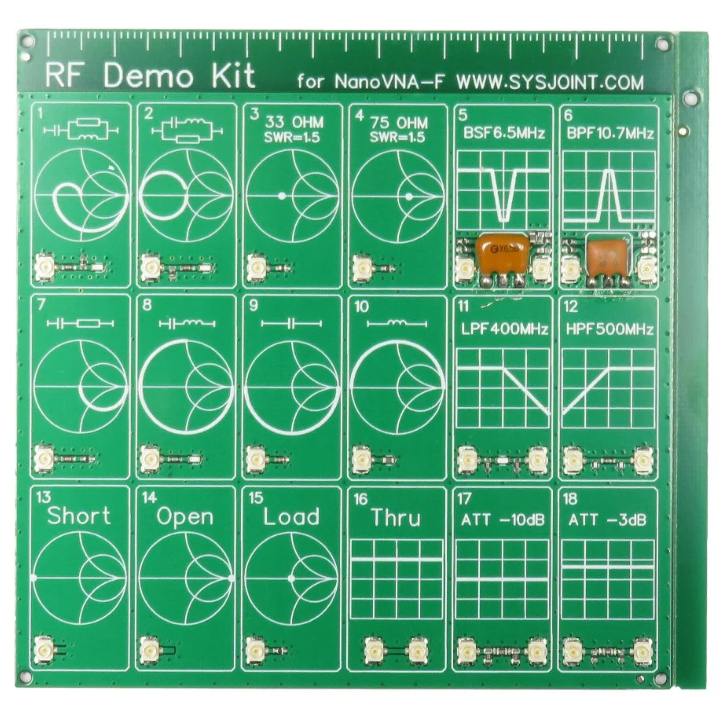

It features the following 18 RF circuits to demonstrate how each appears on the display when using a vector network analyzer:

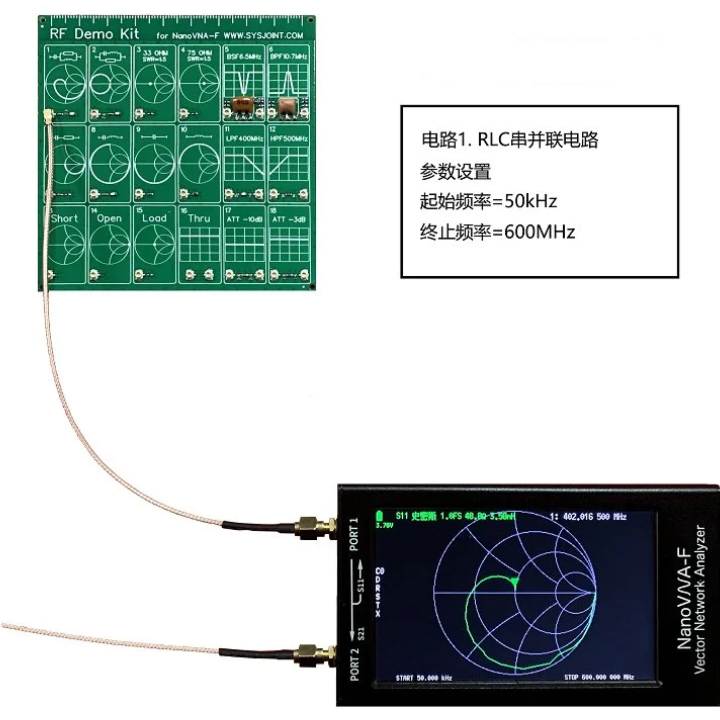

- RLC circuit

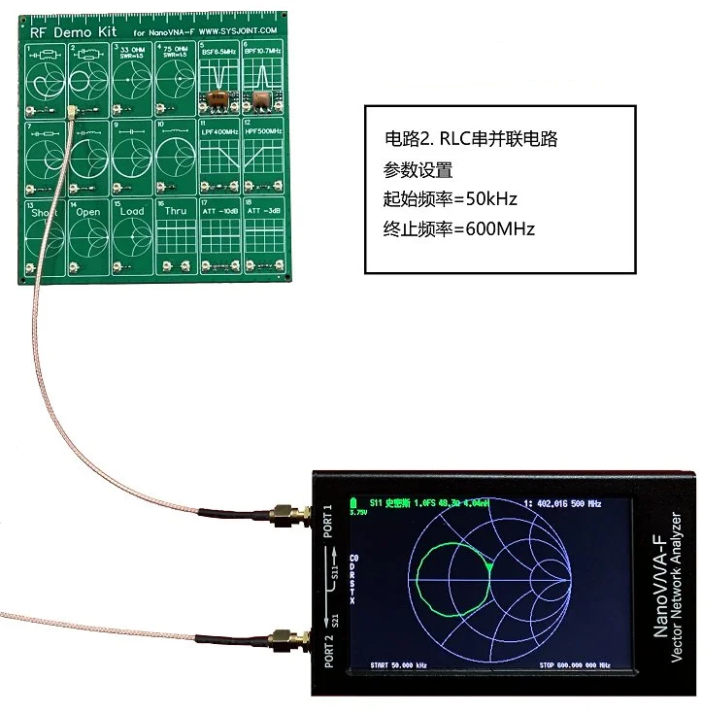

- RLC circuit

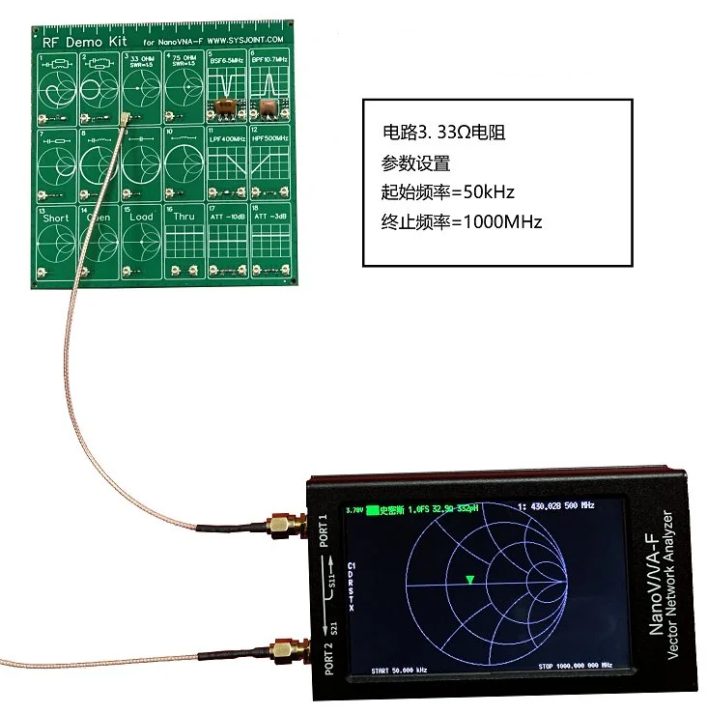

- 33 ohm resistance, SWR=1.5

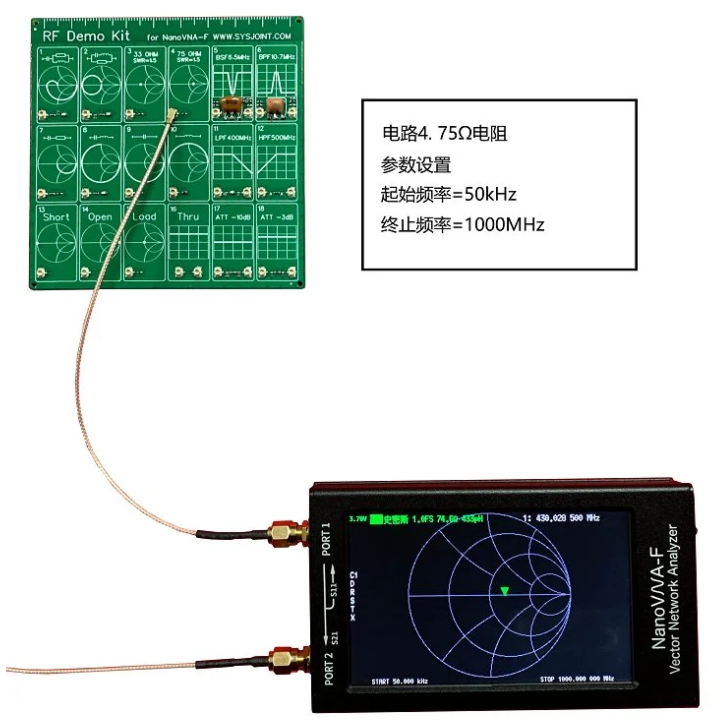

- 75 ohm resistance, SWR=1.5

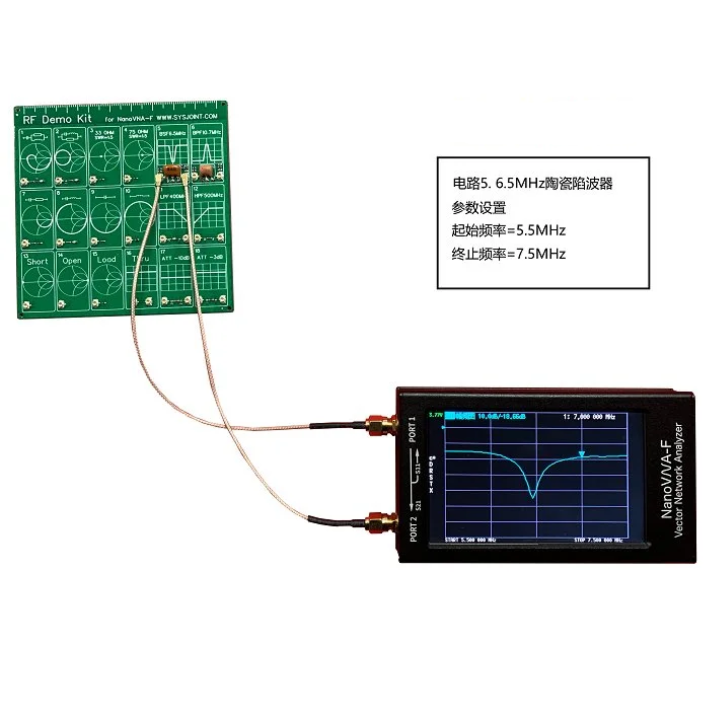

- Band-Stop Notch Filter, Ceramic, Centre Frequency = 6.5MHz

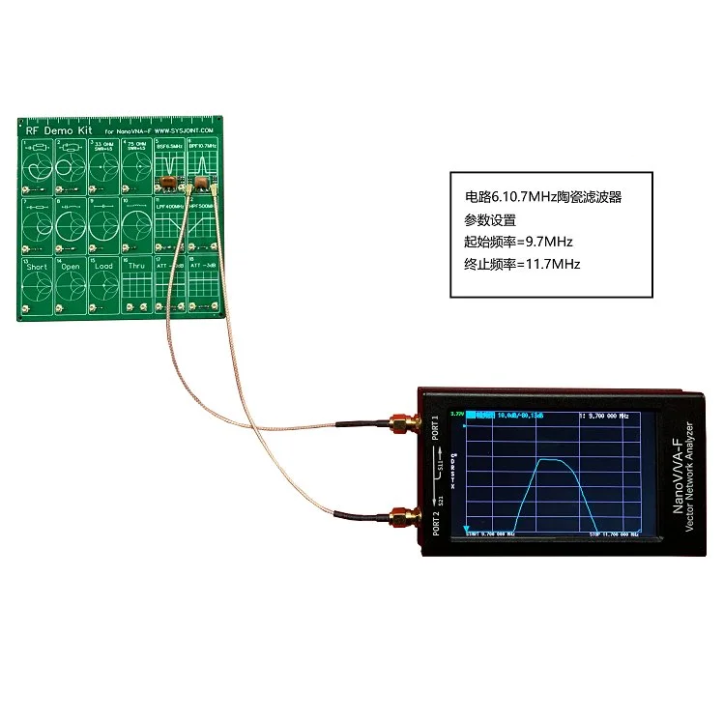

- Band-Pass Filter, Ceramic, Centre Frequency = 10.7MHz

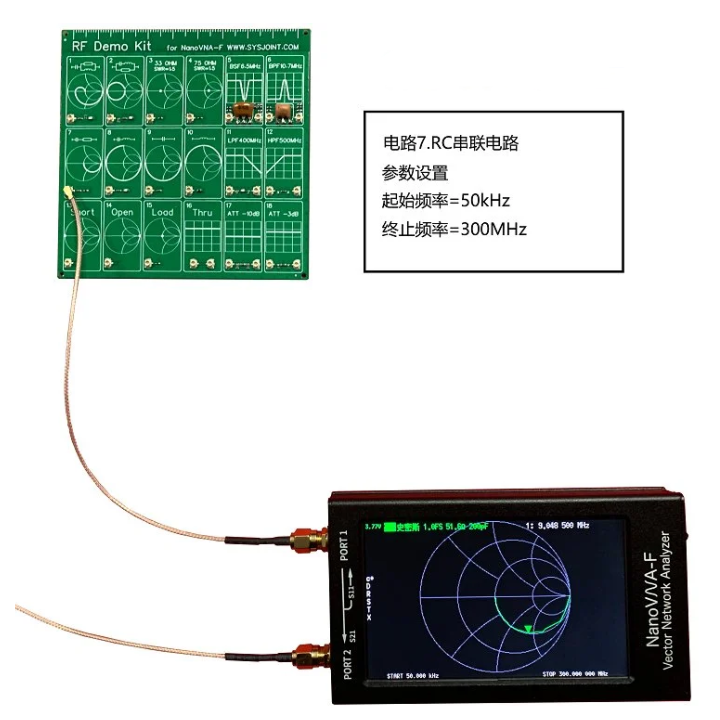

- RC series circuit

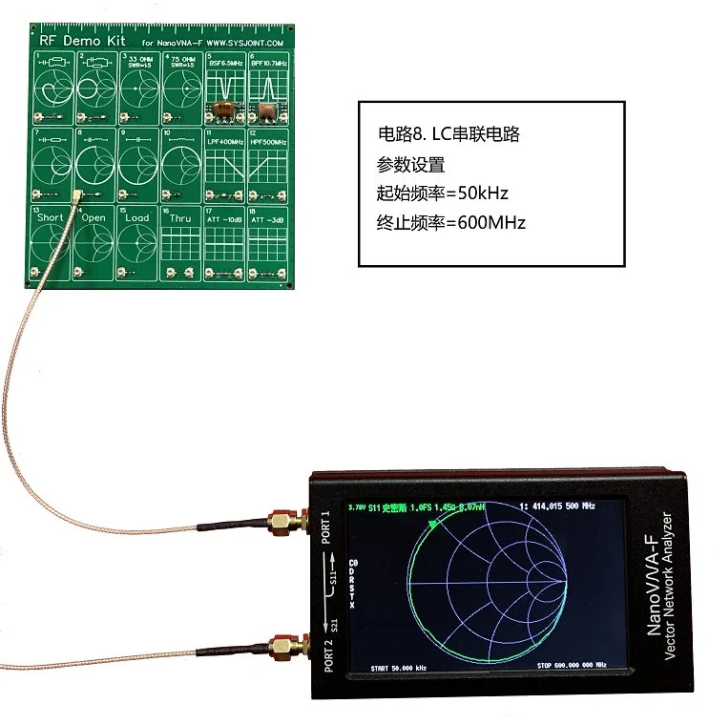

- LC series circuit

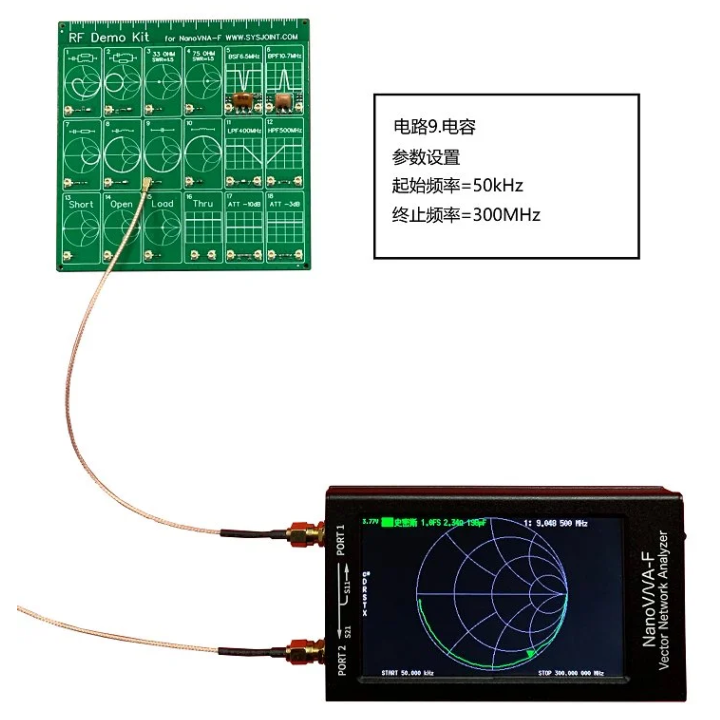

- Single capacitance

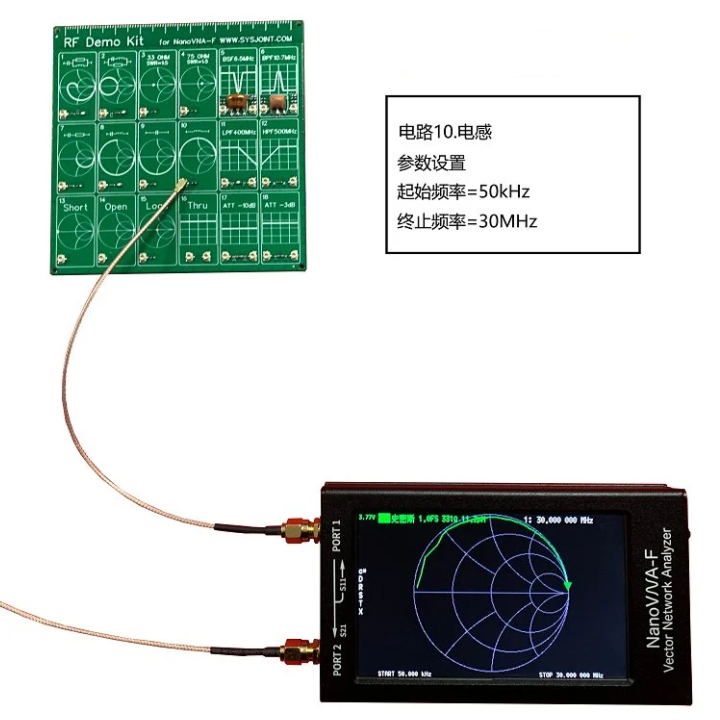

- Single inductance

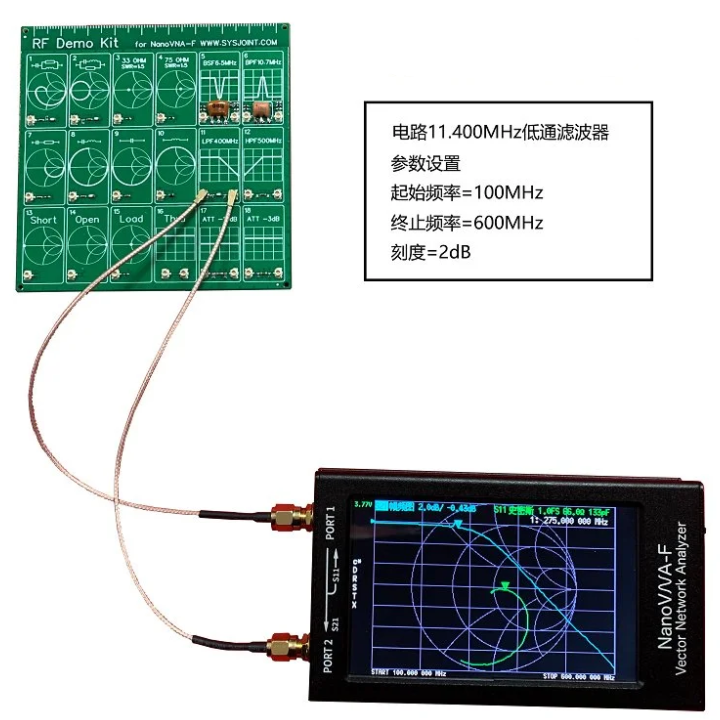

- Homemade low-pass filter, 3dB bandwidth 400MHz

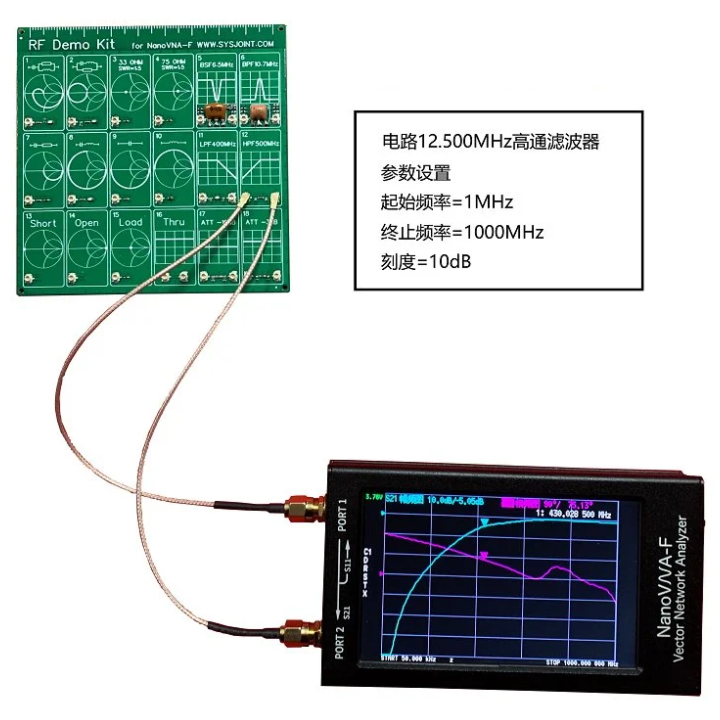

- Homemade high-pass filter, 3dB bandwidth 500MHz

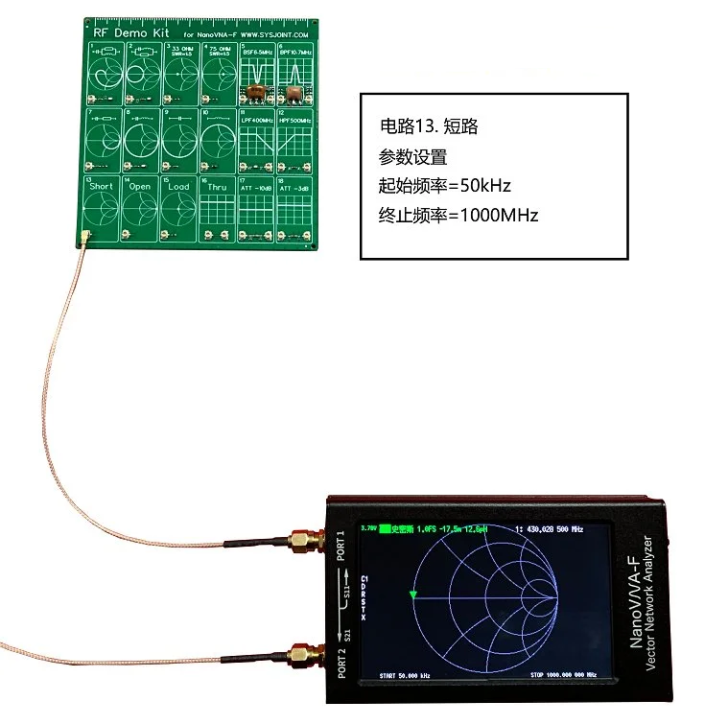

- Short Circuit

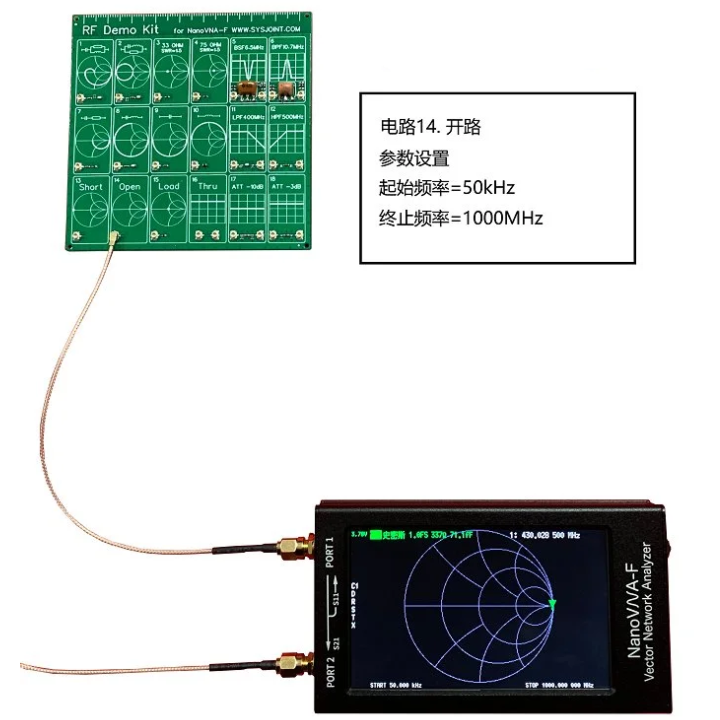

- Open Circuit

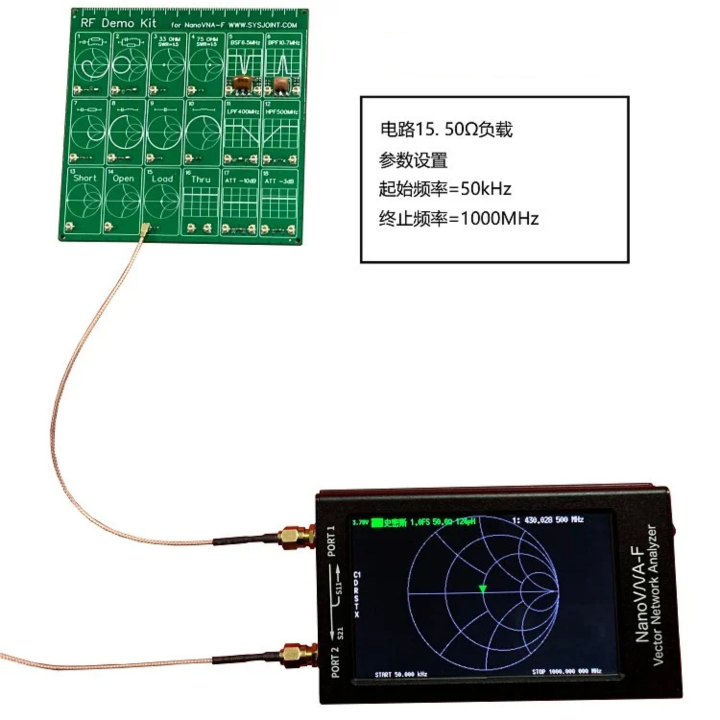

- 50 ohm Circuit

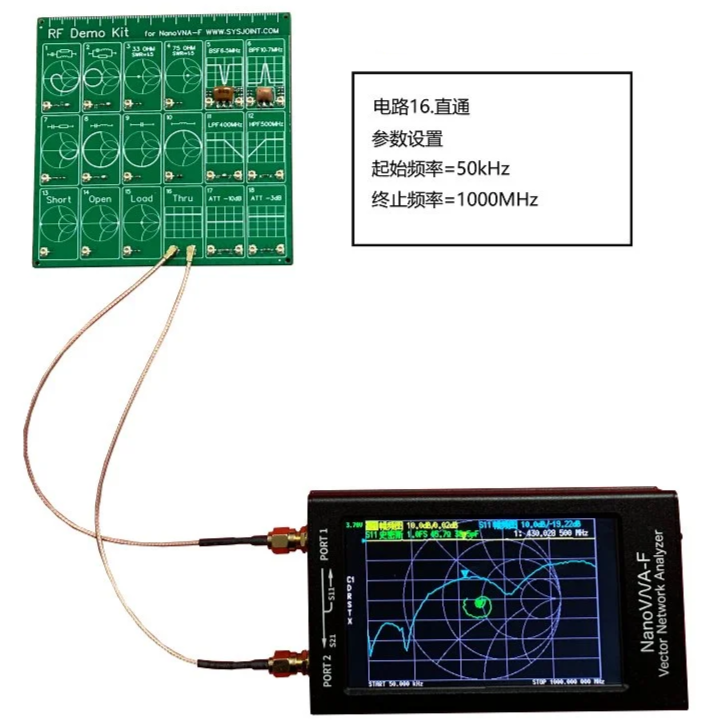

- Through Circuit

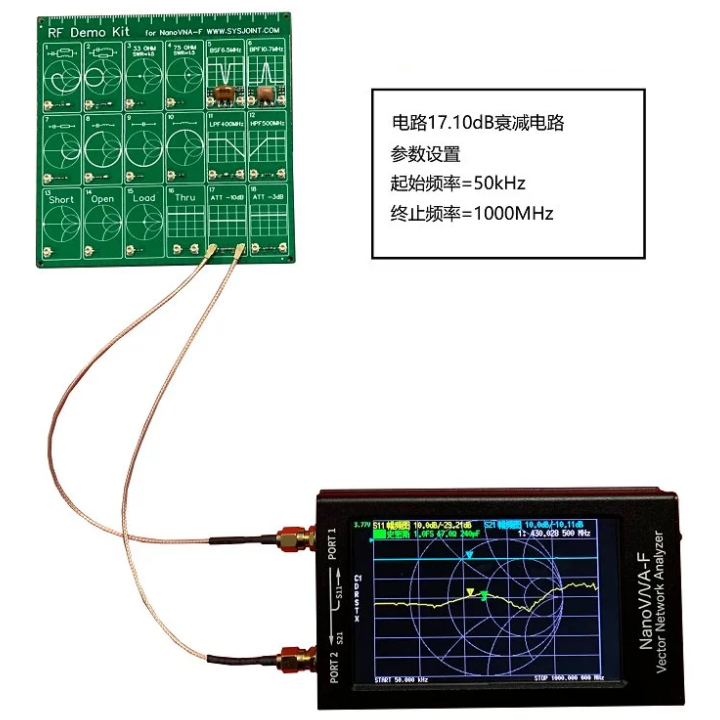

- 10dB attenuation circuit

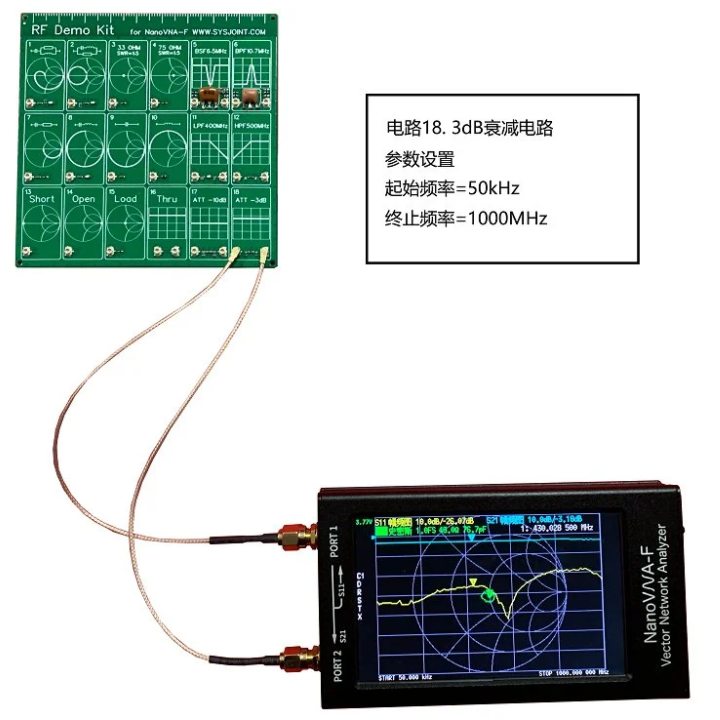

- 3dB attenuation circuit
