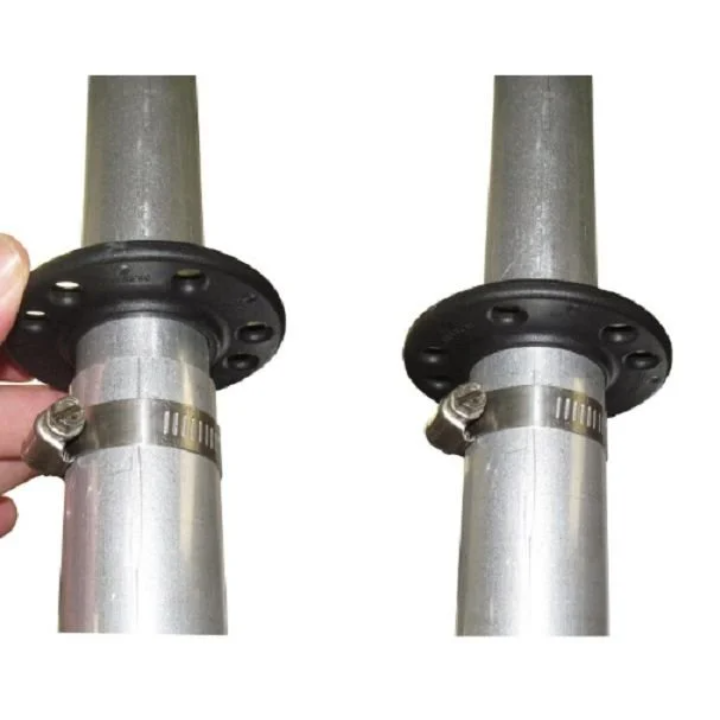

Guy Rings advance the art of stabilizing vertical rigid telescopic tubing. These newly engineered and incredibly strong Guy Rings are intended for rope guying DX Engineering, Hustler, and all brands of aluminium tubing vertical antennas, as well as the DX Engineering Telescoping Fiberglass and Aluminium Tubing Kits.
The Guy Rings have smoothed holes with no sharp edges, protecting your directly threaded ropes. Six 5/16 in. diameter attachment holes allow guy ropes to be properly spaced for three or four way guying systems.
Available as a set of 5 or individually.

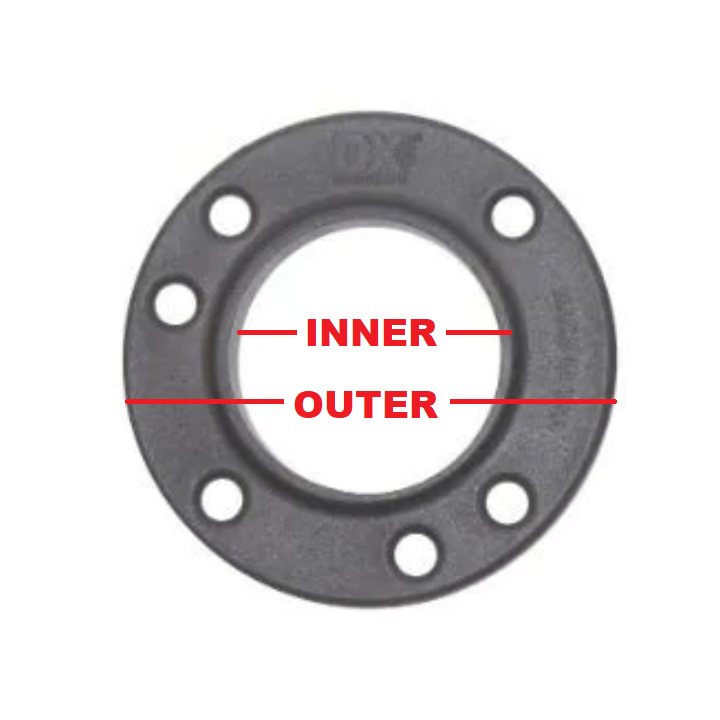

Guy Ring Centre Hole Fits Tubing Size (the Inside Size) and Outer Diameter of Guy Ring

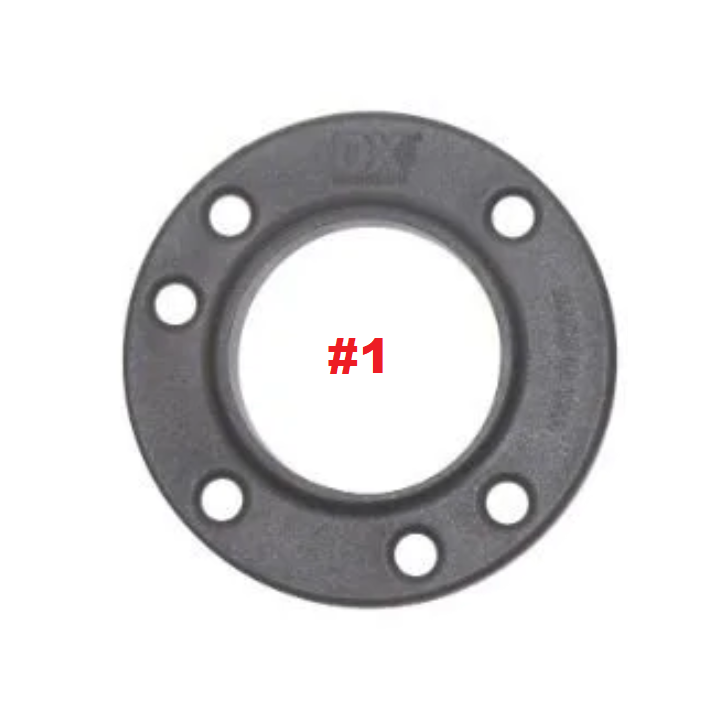

- #1 Inside 2.000 inches, Outside 3.750 inches. (Inside 50.8mm, Outside 95.3mm)

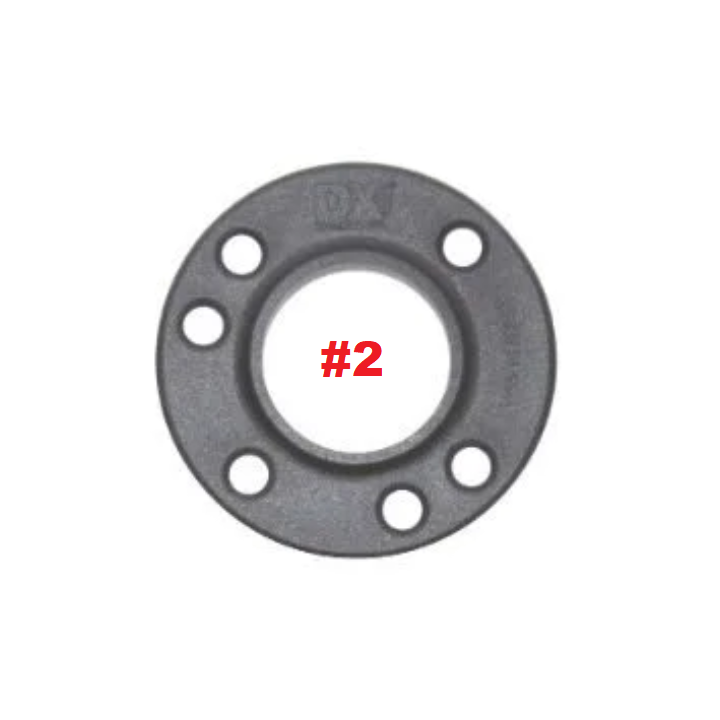

- #2 Inside 1.500 inches, Outside 3.250 inches. (Inside 38.1mm, Outside 82.5mm)

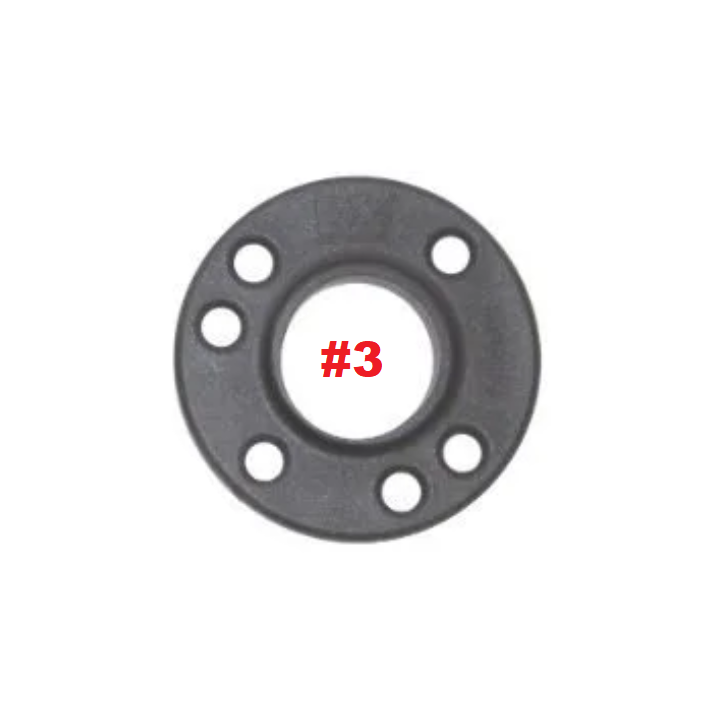

- #3 Inside 1.250 inches, Outside 3.000 inches. (Inside 31.7mm, Outside 31.7mm)

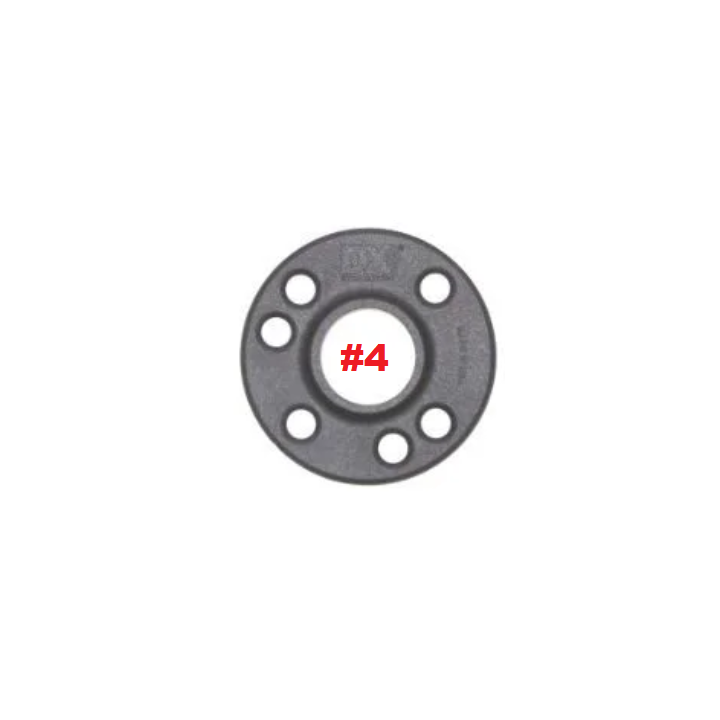

- #4 Inside 1.000 inches, Outside 2.750 inches. (Inside 25.4mm, Outside 69.8mm)

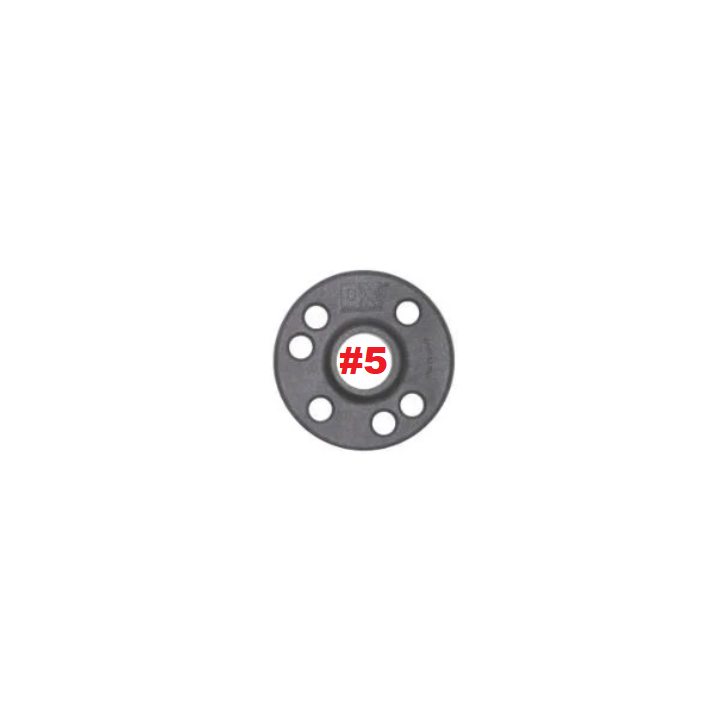

- #5 Inside 0.750 inches, Outside 2.500 inches. (Inside 19.0mm, Outside 63.5mm)
