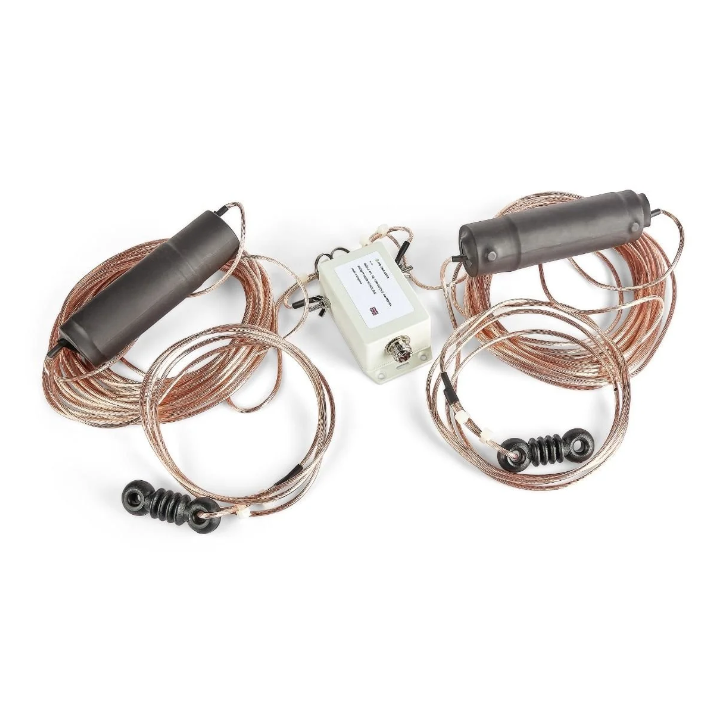

Three band loaded dipole for 15m, 40m and 80m (only loaded on 80m). SWR below 1.5 throughout the whole 15m band, below 2 throughout the 40m band (7.0 - 7.2MHz) and resonant at 3.650MHz +-100khz on the 80m band (SSB portion).

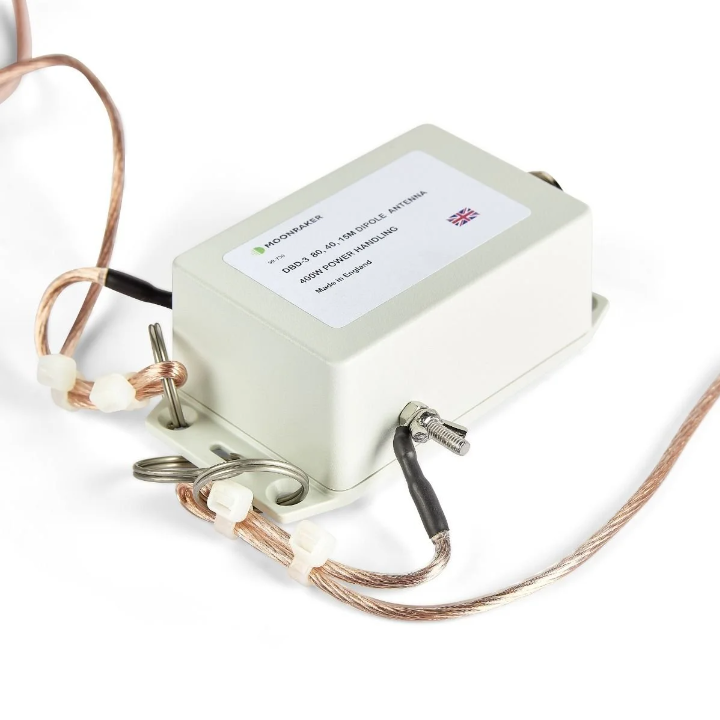

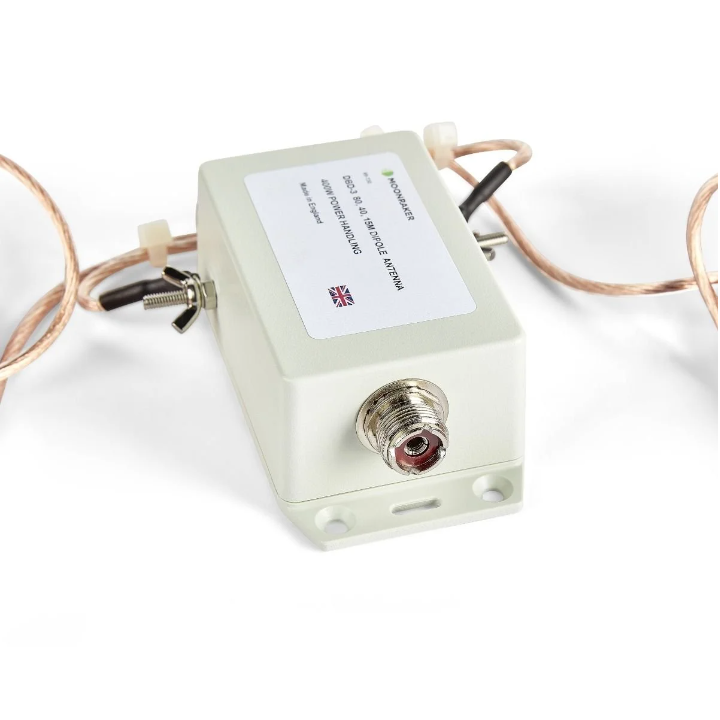

This is fitted with a M0CVO 1:1 BALUN at the feedpoint and can be fed with standard 50ohm coax.
Overall length is just 24m so will even fit in small gardens and can be dog-legged or bent with little change in performance.
Specifications:
- Length: 24m Bands: 15 / 40m / 80m
- Max Power: 400W CW, 550W SSB
