Features:
- Quality Components for Long Lifetime Commercial Installations
- Advanced switch-mode technology
- Reliable power with minimum weight and size
- Circuit innovations minimize output voltage ripple and RFI
- C-Tick Approved
- 2 Year warranty
Applications:
- Two way radio base stations
- Communications systems
- Test equipment
- Automotive & Marine displays
- 12 Volt lighting systems
Technical Specifications:
- Input Voltage: 115-230 VAC, 50 - 60Hz
- Output Voltage: 13,8 VDC ±1%
- Output Ripple & Noise: <120 mV Peak – Peak
- Output Current: Continuous 9.5 Amp
- Current Limiting: 10 Amp
- Cooling Temp.: Convection Only (No Fan)
- Protections:
- Short circuit: Yes
- Overload: Yes
- Reverse polarity: Yes
- Over Temperature: Yes

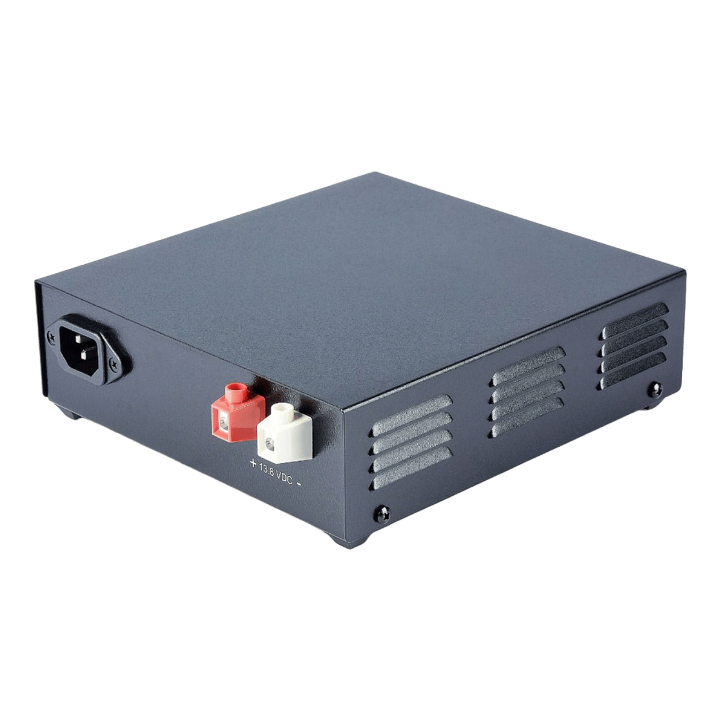

- Connections:
- AC Input: Detachable power cord with IEC socket
- DC Output: Terminals with tubular hole (5mm) with set screw
- Operating Temperature: 0 - 40 ºC
- Dimensions (L x W x H): 190 x 180 x 60 mm
- Weight: 1,45 Kgs
- Standards:
- EN 61000-6-3
- EN 61000-6-2
- EN 61000-3-2
- EN 61000-3-3
- EN 60950
- Safety Standards:
- UL60950-1
- EN60950-1 (ETL)
- EMI Standards:
- EN55032 class B
- EN61000-3-2,3
- EMS Standard: EN61000-4-2,3,4,5,6,8,11
- C-Tick: AU/NZS CISPR32 class B
Package:

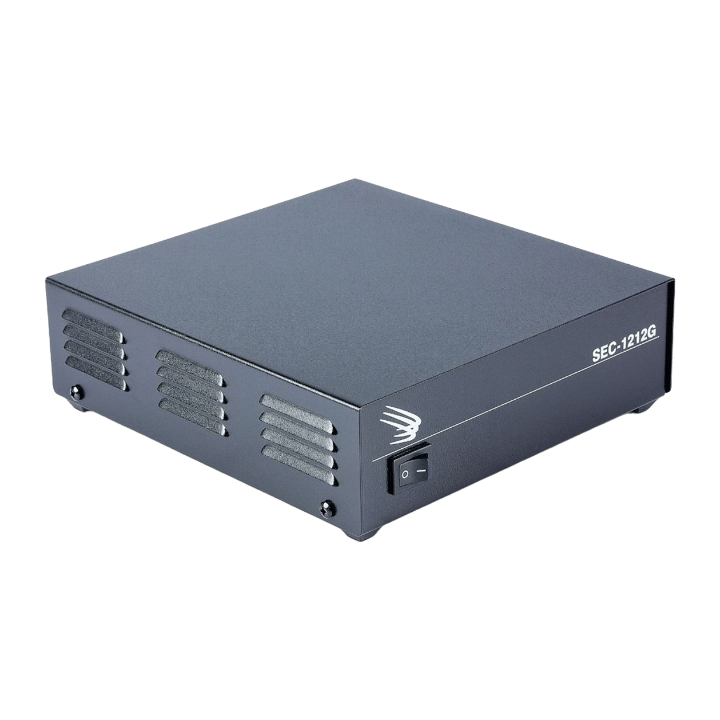

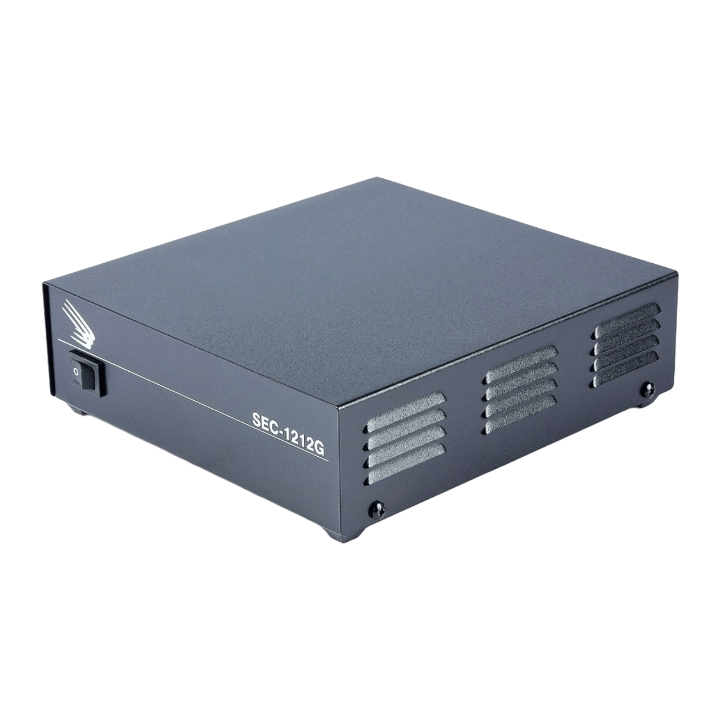

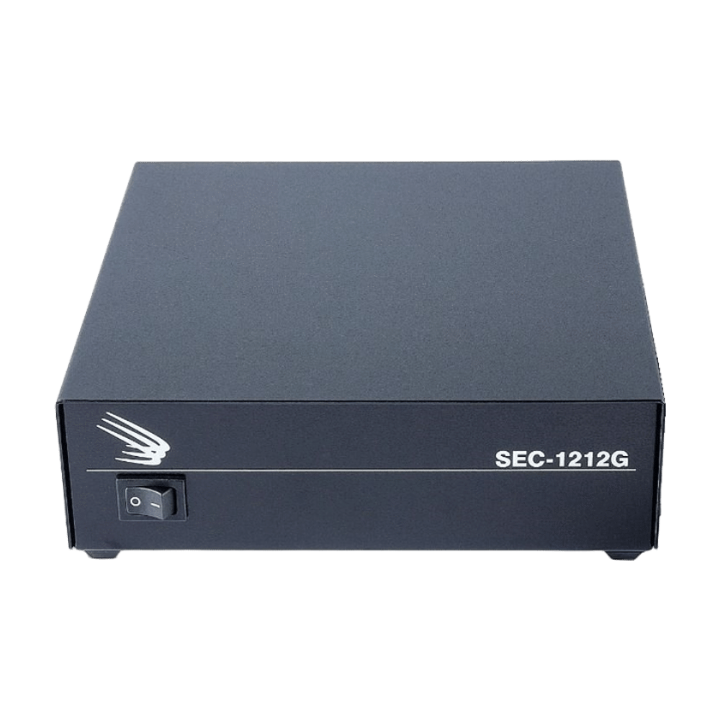

1x SEC-1212G Power Supply
1x New Zealand Power Cord
1x User Manual in English
