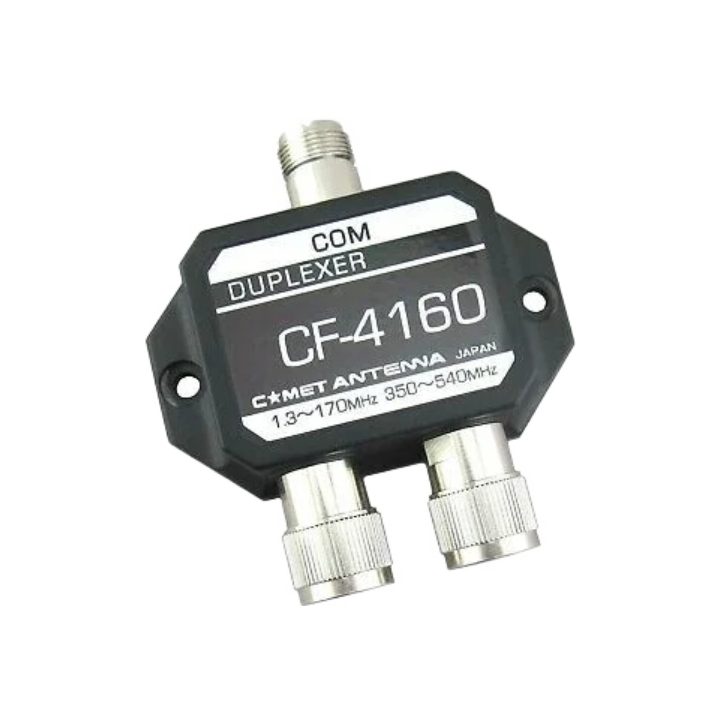

COMET CF-4160A Duplexer for 1.3-170 and 350-540 MHz W/MJ-MP/MP

$145.90
$145.90
$153.60
Up to 3 Weeks for Delivery
GST included, where applicable. Shipping calculated at checkout.

Comet CF-4160A – Duplexer with very good parameters, low attenuation, with popular M connectors (UC1, PL259) enabling operation also with high power.

Technical Specifications:

  • Frequency Bands: 1.3-170 / 350-540 MHz
  • Connectors: M (UC1 female) / M (UC1 male) - M (UC1 male)
  • Impedance: 50 Ohms
  • Bandpass Frequency & Input Loss: 1.3-170 MHz - <0.1 dB; 350-540 MHz - <0.2 dB
  • VSWR: <1: 1.2
  • Max. Power: 1.3-170 MHz - 800 W (PEP); 350-540 MHz - 500 W (PEP)
  • Attenuation Between Inputs: >60 dB
