Features, Functions and Specifications

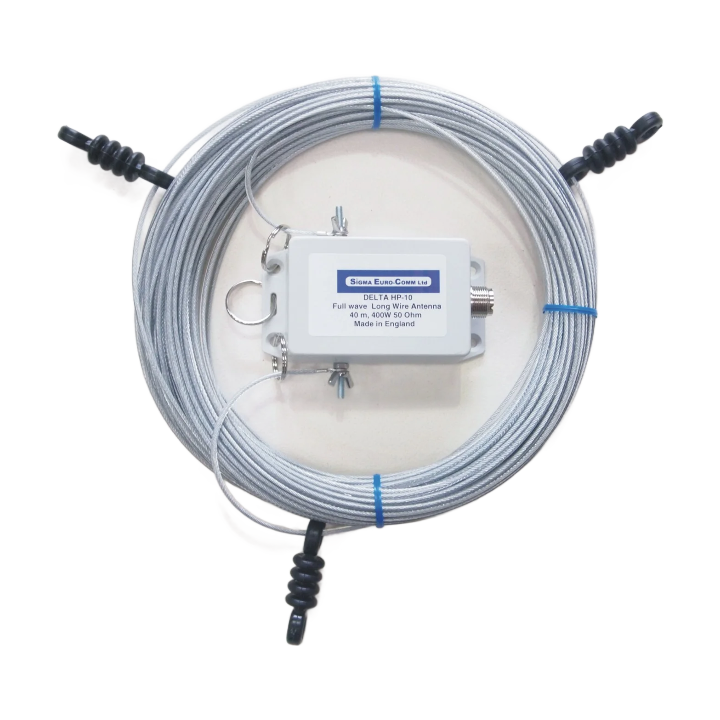

The DELTA 10-HP is a Full Wave Loop designed to operate on 10 m (28 MHz) without an ATU and other bands with an ATU. There is a 4:1 balun at the feedpoint enabling it to be fed directly with 50 ohm Coax.
The Loop comes complete with Three Insulations to provide anchor points.

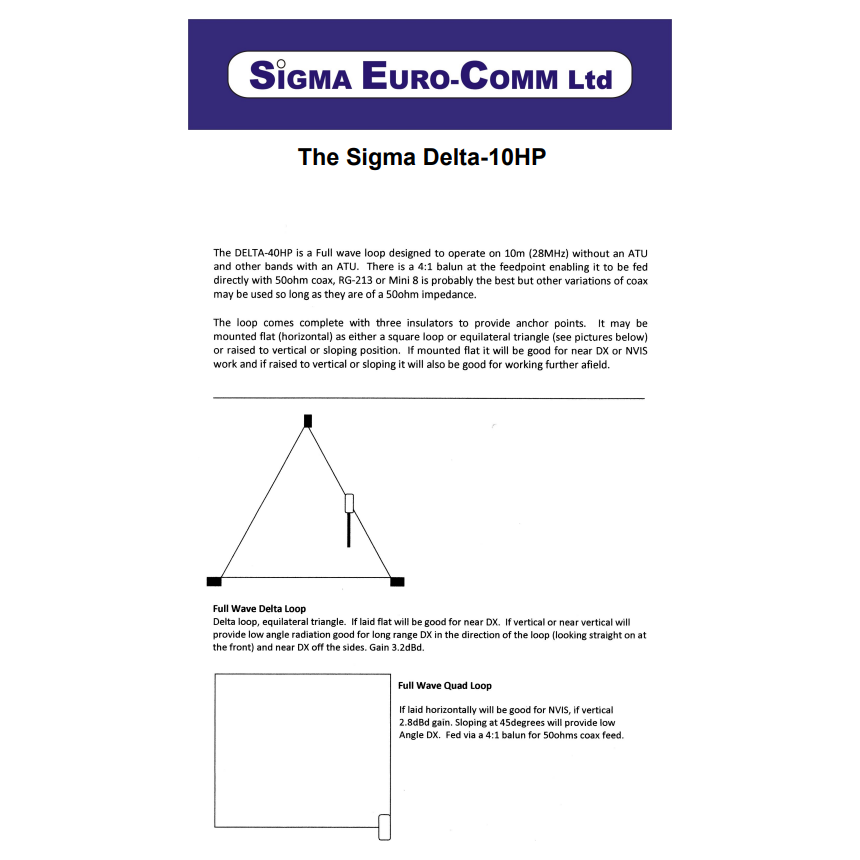

Configured as a delta loop or equilateral triangle, if laid flat will be good for near DX. If vertical, will provide low angle radiation which is good for long range DX in the direction of the loop (looking straight on at the front) and near DX off the sides. Gain 3.2dBd. If laid horizontally will be good for NVIS (Near Vertical Incidence Skywave), if vertical 2.8dBd gain. Sloping at 45 degrees will provide low angle DX.
- End Fed Wire Antenna, Delta Loop
- Frequency Range: 28 MHz, use ATU for other bands
- Band: 10M Band
- Max Power: 400 Watts CW, 500 Watts PEP (SSB), 100 watts Data ICAS.
- Antenna Type: Directional
- Antenna Whip: Wire
- Connector: UHF-Female
Package Includes
1x Antenna
3x Insulators
1x User Manual in English
