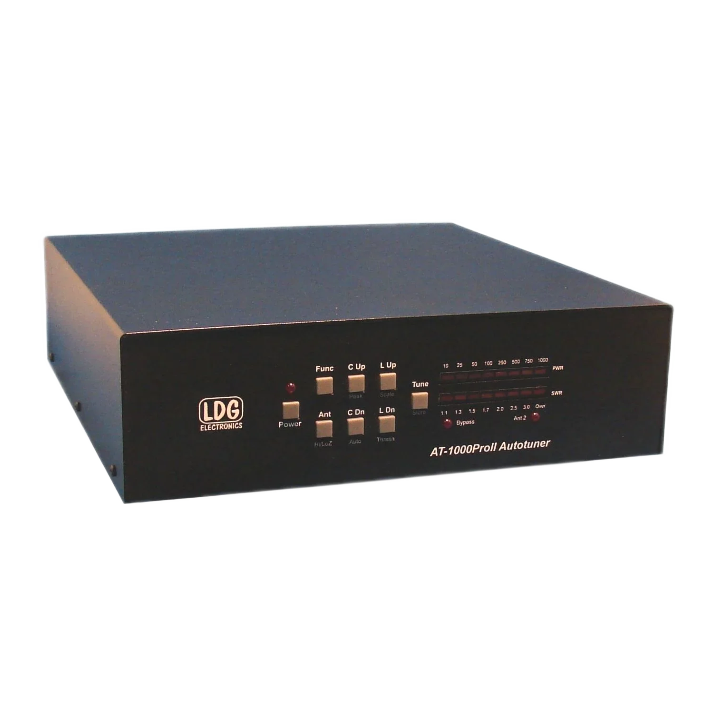

The new AT-1000ProII keeps many of the same features of the previous model, but simplifies the operation.
With the two position antenna switch there are 2,000 memories that store tuning parameters for almost instantaneous memory recall whenever you transmit on or near a frequency you've used before. Just key and it tunes!
The AT-1000ProII will operate at any power level between 5 and 1,000 watts peak RF input.
The AT-1000ProII has a large, easy to read bar graph with two selectable scale ranges (100 and 1,000 watts) as well as SWR meter.
The AT-1000ProII will interface with many popular transceivers, enabling their TUNE button to control the AT-1000ProII's operation.
The AT-1000ProII will tune from 1.8 to 54.0 MHz continuously, and will match an amazing range of antennas, from Yagis and dipoles to inverted-Vs and slopers; virtually any coax-fed antenna from 6 to 1000 ohms impedance (16 - 150 ohms on 6 meters).
Tuning time is usually under 10 seconds.
Longwires or antennas fed with ladder line require an external balun.
Features/Specification
- High Power Microprocessor controlled Switched L tuning network
- Two position antenna switch with 2000 memories for each position
- Continuous coverage 1.8 to 54 MHz
- Power rating HF (1.8 to 30 MHz): 1000 Watts Single Side Band 750 Watts CW 500
- Watts Digital (RTTY, Packet, etc) 6 meters: 250 Watts (any mode)
- Dual meter scale 100/1000 watts and SWR
- Tuning power: 5 to 125 watts maximum
- Relay protection software prevents tuning when RF power is high
- Optional External 4.5" analog, LED backlit Meter, 6.7w x 4.0d x 4.0h
- Includes 6 foot power cable 5.5 x 2.5 mm
- Enclosure size: W-10 x D-11 x H-3 inches
- Weight: 3 kg
| Conn. A | Conn. B | Tuner | Radio | Function | |
|---|---|---|---|---|---|
| LDG-Y-ACC | 3.5 mm, Stereo | 3.5 mm, Stereo | Z-11Pro2, Z-100+, AT-100pro2, AT-200pro2, AT-600pro2, AT-1000pro2 |
FT-100, FT-710, FT-857, FT-897, FT-891, FT-991/A | Tune |
| LDG-Y-ACC2 | 10pin MiniDIN | 3.5 mm, Stereo | Z-11Pro2, Z-100+, AT-100pro2, AT-200pro2, AT-600pro2, AT-1000pro2 |
FT-450/D, FT-950, FT-DX10, FT-DX1200 | Tune |
| LDG-Y-ACC3 | 15pin SubD | 3.5 mm, Stereo | Z-11Pro2, Z-100+, AT-100pro2, AT-200pro2, AT-600pro2, AT-1000pro2 |
FT-DX101D/MP, FT-DX3000 | Tune |
| LDG-Y-CAT | 8-pin MiniDIN | 8-pin MiniDIN | Z-817, AT-897+, YT-100 | FT-100, FT-857, FT-897 | Tune + Power |
| LDG-I-ACC | Icom Tuner | 3.5mm + DC | Z11-Pro2, Z-100Plus, AT-100Pro2, AT-200Pro2, AT-600Pro2, AT-1000Pro2 |
all Icom w/ Tuner conn. | Tune + Power |
| LDG-I7-ACC | Icom Tuner | 6-pin MiniDIN | IT-100 | all Icom w/ Tuner conn. | Tune + Power |
