The Z-100A features LDG’s famous 10:1 SWR tuning range that matches dipoles, verticals, end-fed wires, G5RVs or even an off-centre-fed Windom. Easy integration means plug and play operation; installation could not be simpler.

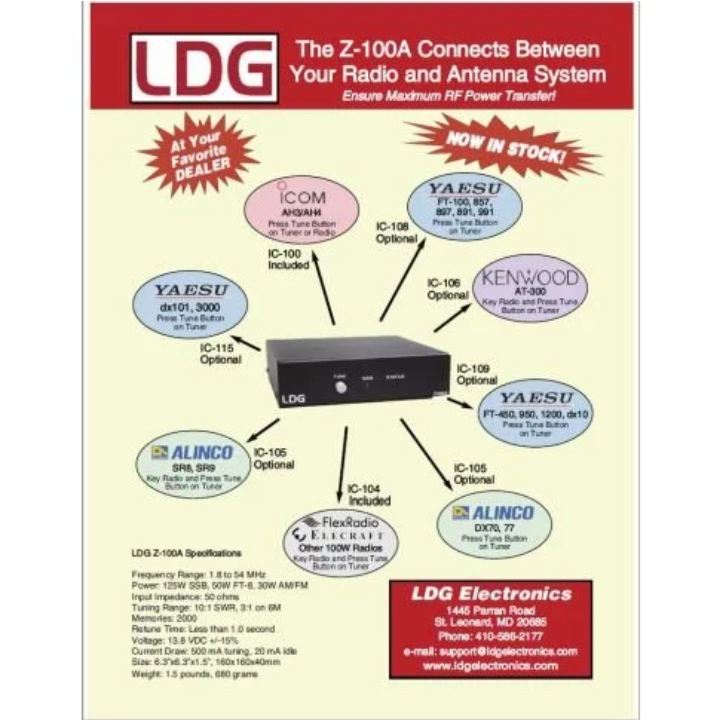

It works with all modern HF radios including Icom (except IC705), Yaesu, Alinco, Kenwood and more. Included in the box is the IC-104 DC power cable and a complete set of radio interface cables.
Features
- 2000 memories for instantaneous band changing
- Supplied with leads for all compatible radios
- For dipoles, verticals, VS, beams, or any coax-fed antenna
- Includes Icom interface cable. Ready to use out of the box
- Small size enclosure
- Built-in frequency sensor
Specification
- 0.1 to 125 Watt SSB/CW, 30W Digital
- Tuning time: 0.1 to 6 seconds full tune, 0.1 seconds memory tune
- Frequency Range: 1.8 to 54 MHz
- Input Impedance: 50 ohms
- Tuning Range: 10:1 SWR, 3:1 on 6M
- Tunes 4 to 800 Ohm loads (16 to 150 on 6M)
- Memories: 2000
- Retune Time: Less than 1.0 second
- Voltage: 13.8 VDC +/-15%
- Current Draw: 500 mA tuning, 20 mA idle
- Dimensions: L-160mm x W-160mm x D-40mm
- Weight: 650g
