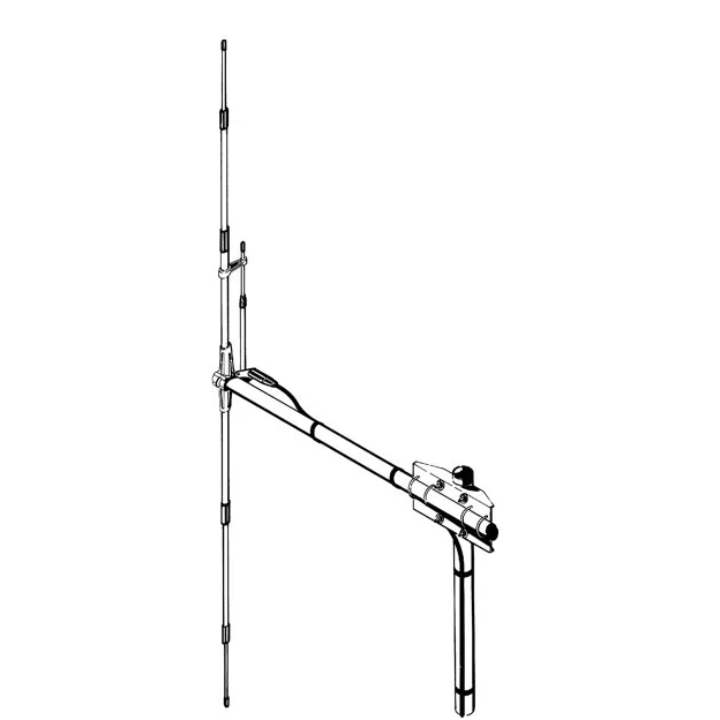

CB and 10 meter band dipole. High power handling. Tuneable between 26.5 - 30.0 MHz.

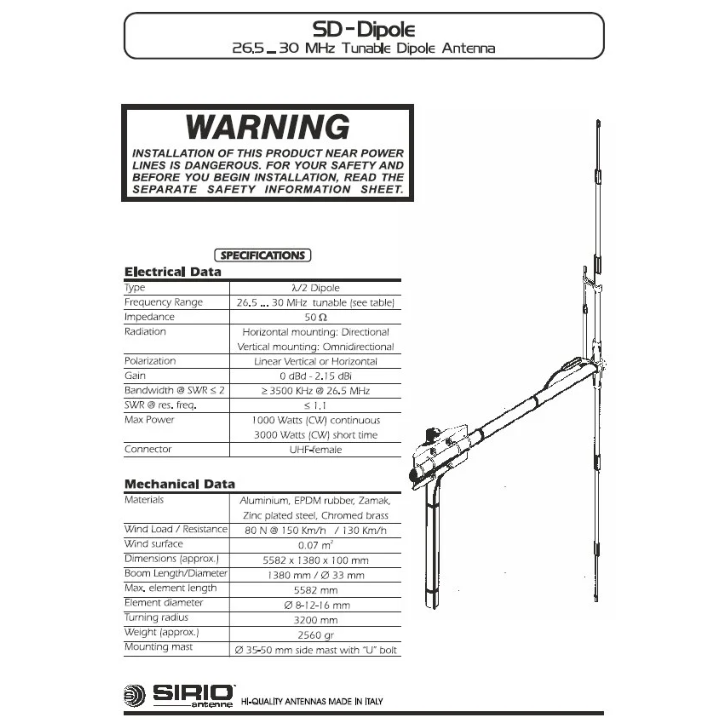

Specifications:
- Type: 1/2 λ
- Radiation: Omnidirectional
- Polarization: Linear vertical
- Frequency range: 26.5 ... 30 MHz Tuneable
- Systems: 10m-HAM
- Gain: 2.15 dBi
- Bandwidth :≥ 3.5MHz @ SWR ≤ 2Max
- Power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
- Connector: UHF-female (SO-239)
- Materials: Aluminium, Galvanized steel, Zamak
- Height (approximate): 5582 mm / 18.31 ft
- Weight (approximate): 2560 gr / 5.64 lb
- Mounting type: On-Mast
- Mounting mast: Ø 35-50 mm
