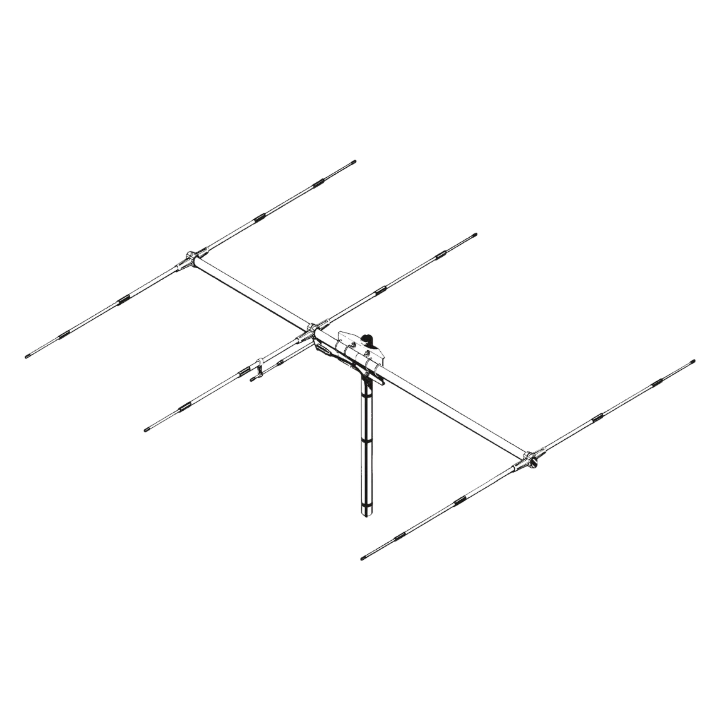

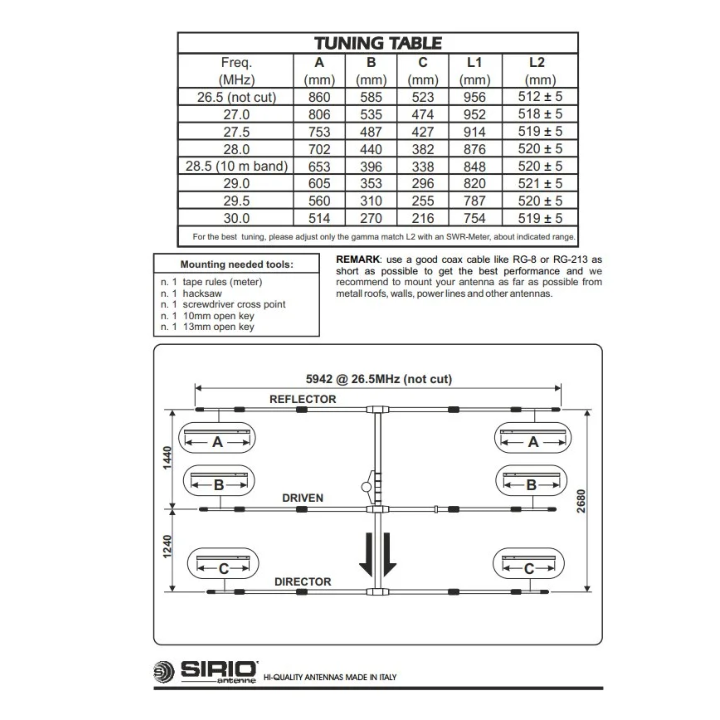

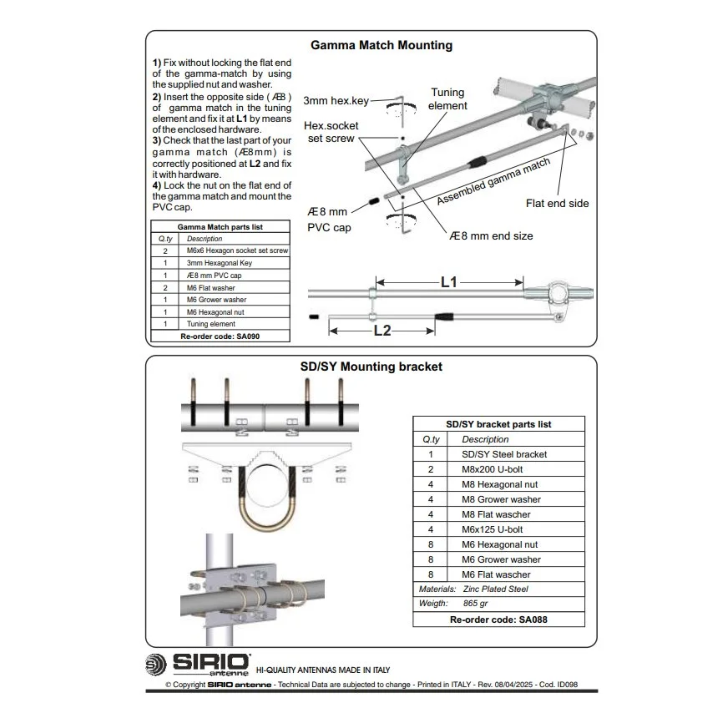

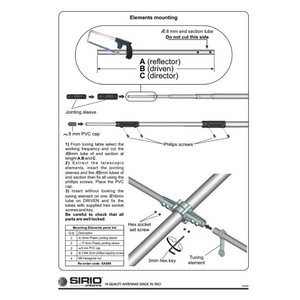

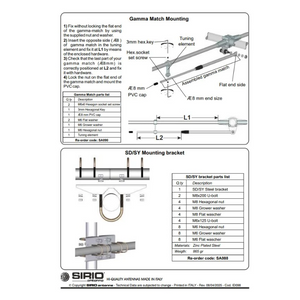

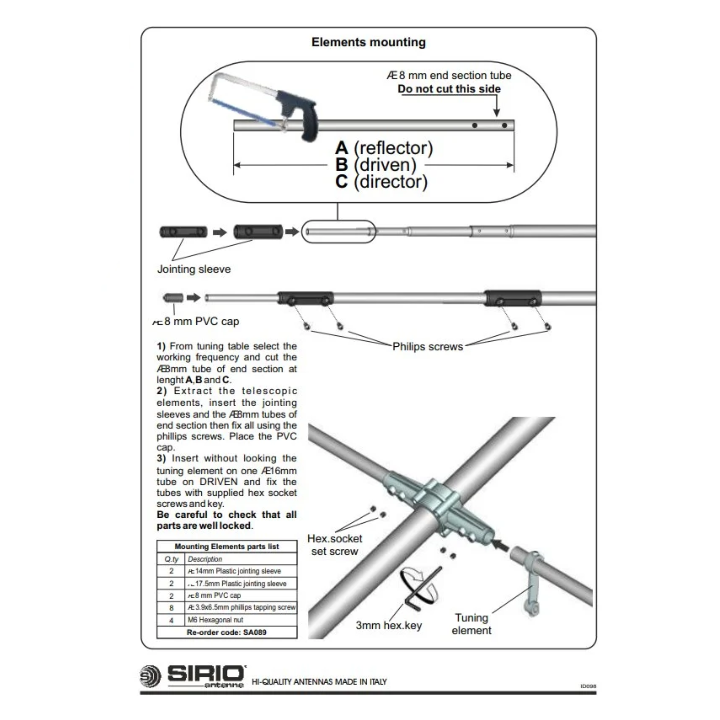

The Sirio SY 27-3 is a high quality, light weight, low priced 3 element beam tuneable (see instructions included in the photos) to cover 26.5 to 30MHz. and can be easily made to work on the 28 MHz Amateur Band.
They are incredible value for money and with good band conditions, you can work the world with ease and put out a big signal with these high gain antennas. It's Sirio build quality too, for a very happy and long life.

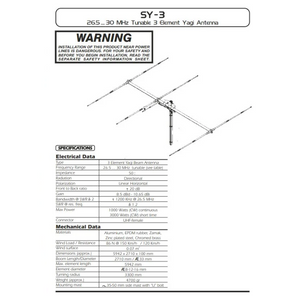

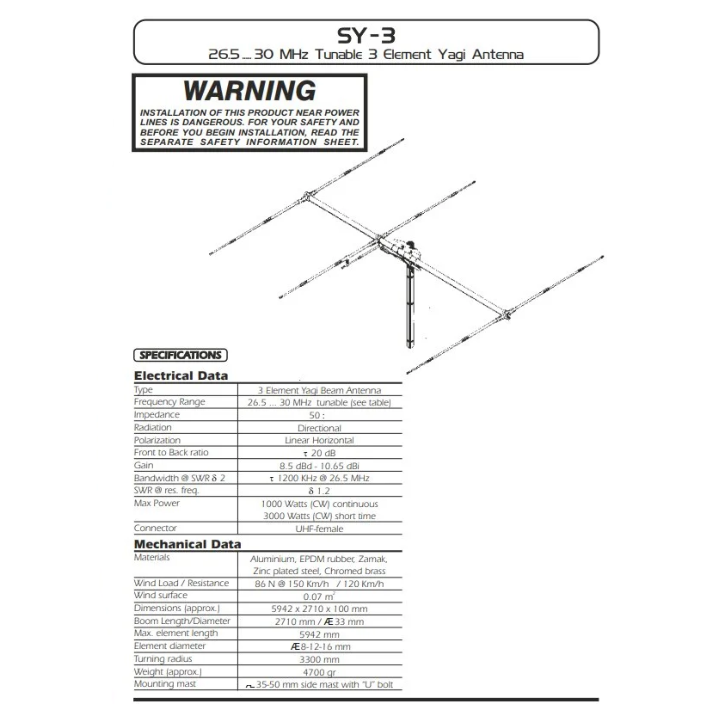

Features/Specifications:

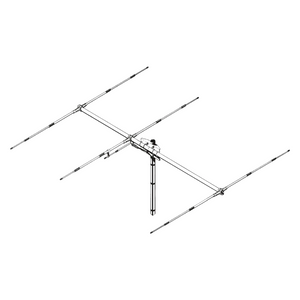

- Type: 3 elements Yagi
- Radiation: Directional
- Polarization: Linear Horizontal
- Frequency range: 26.5 to 30 MHz Tuneable (see instructions included in the photos)
- Systems: 26/27 MHz CB and 10 metre HAM band
- Gain: 8.5 dBd, 10.65 dBi
- Bandwidth: ≥ 1.2MHz @ SWR ≤ 2
- Max Power: 1000 Watts (CW) continuous, 3000 Watts (CW) short time
- Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
- Connector: UHF-female (SO-239)
- Materials: Aluminium, Galvanized steel, Zamak
- Dimensions (approximately): 5942 x 2710 x 100 mm / 19.49 x 8.89 x 0.33 ft
- Weight (approximately): 4700 gr / 10.36 lb (packaged 6.45kg)

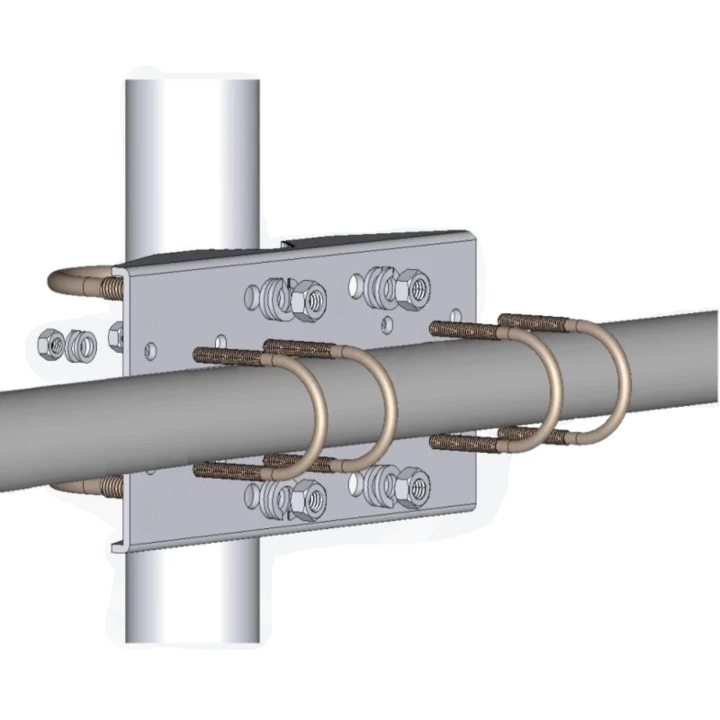

- Mounting type: On-Mast 35-50 mm
- Wind load: 86 N at 150 Km/h
- Wind resistance: 120 Km/h
- Wind surface: 0.07 m²
