The NanoVNA-F V3 6G is a portable network analyzer engineered for versatility and high performance, covering a wide frequency range from 1 MHz to 6 GHz across MF, HF, VHF, UHF, and SHF bands. It is ideal for testing antennas, filters, amplifiers, attenuators, cables, duplexers, and couplers. The device features a 4.3-inch IPS LCD display for clear visibility in any environment and durable SMA connectors to ensure stable and reliable connections.
Powered by a 4500mAh Li-ion battery, it offers up to 5 hours of operation on a single charge, with convenient USB Type-C charging recommended at 5V/1A. The NanoVNA-F V3 6G includes Time Domain Reflector (TDR) functionality for accurate cable length measurement and fault detection, and it comes with feature-rich desktop software for advanced analysis and control, providing comprehensive capabilities in a compact, portable design.
Features/ Technical Specifications:
- Dimensions: 125x75x20mm
- Frequency Range: 1MHz-6GHz
- RF Output Power: -10dBm (Max)
- RF interface: 0dBm (Max), DC<5V
- Frequency Accuracy: ±1ppm
- Stepped Frequency: 10kHz (Min)
- S21 Dynamic Range: 65dB (3GHz), 60dB (6GHz)
- S11 Dynamic Range: 50dB (3GHz), 40dB (6GHz)

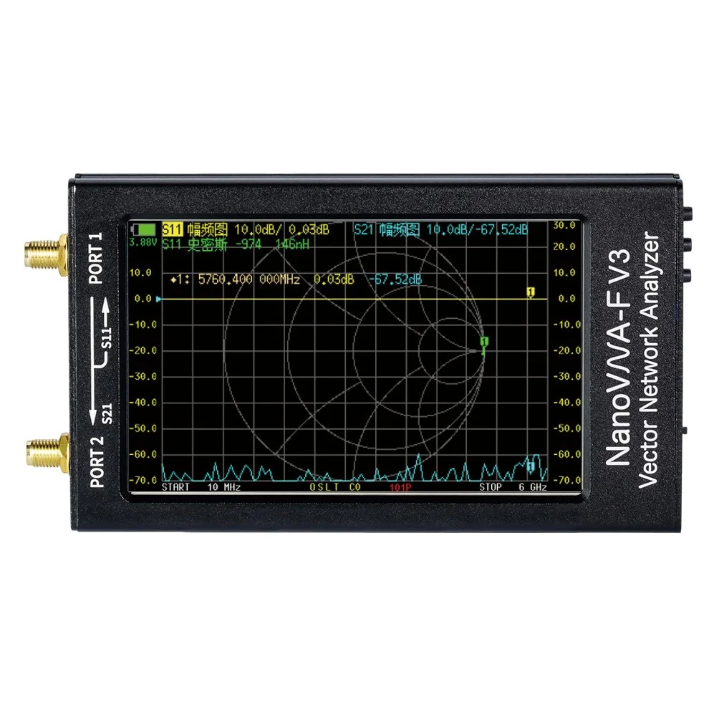

- Screen: 4.3″” IPS TFT (800×480)
- USB-A Power out: 5V/1A

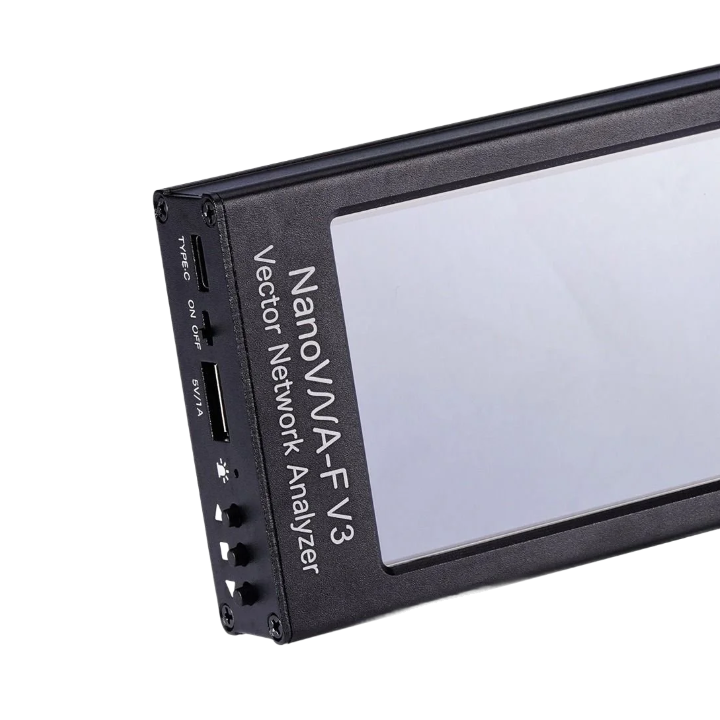

- Charge/Data: USB Type-C
- Li-Battery: 3.7V 14500mAh
- Battery Life: 5 hours
- Calibration points: 801
- Scan Point: 101~801
- Traces: 4
- Markers: 4
- Calibration Result Storage: 12
- Sweep Speed: 200 pts/s
