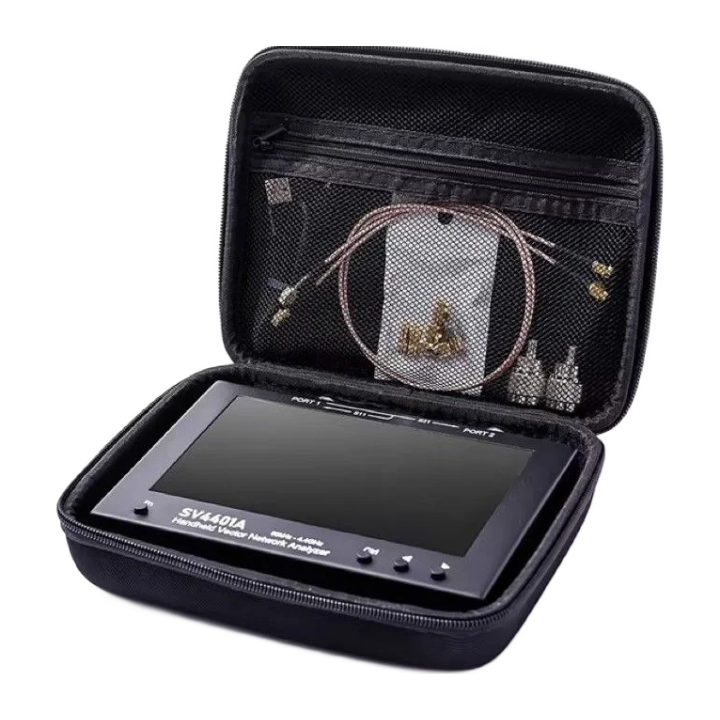

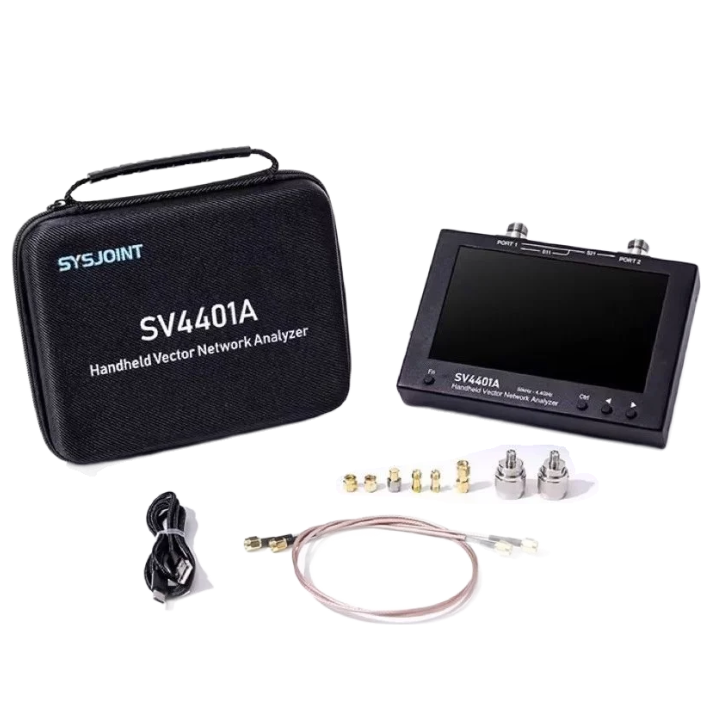

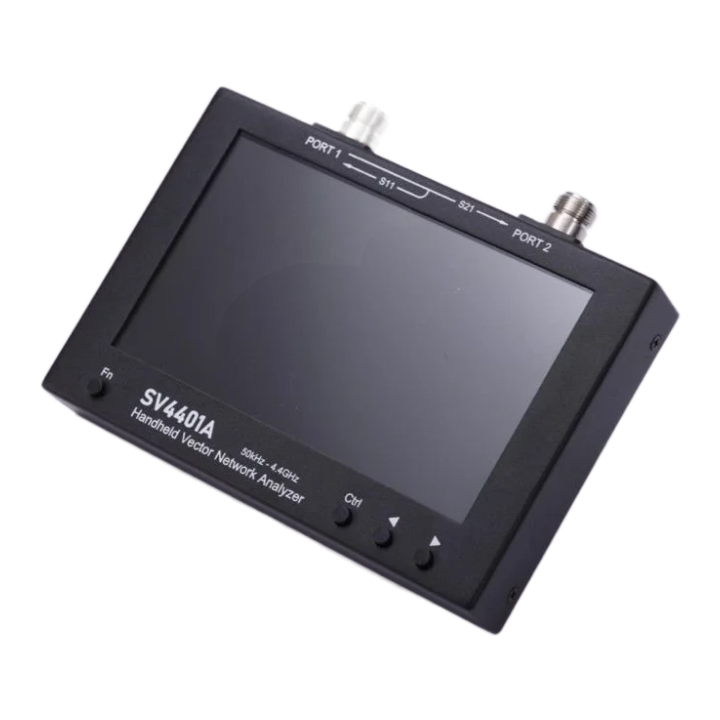

The SV4401A is a handheld Vector Network Analyzer (VNA) covering a frequency range of 50 kHz to 4.4 GHz, designed for accurate S11 and S21 measurements. It offers a dynamic range of 75 dB for S21 and 50 dB for S11, providing reliable performance for a wide range of RF testing applications.
The SV4401A supports advanced measurements including VSWR, Smith chart, LogMag, phase, delay, Q factor, polar, and linear analysis, making it suitable for testing antennas, cables, amplifiers, duplexers, filters, and other RF components. Compact and portable, this VNA is ideal for both field and lab use.
Note: The SV4401A requires a USB-A to USB-C cable for charging; cables with USB-C connectors on both ends may not be compatible.
Features/ Technical Specifications:
- Frequency range: 50kHz ~ 4.4GHz
- Touch Screen: Capactive
- Power consumption: 5W
- Battery: Built-in 2x18650, 3.6V/3350mAh×2, 4 hours with 50% screen light
- Charging/Data port: USB Type-C
- Charging voltage: 4.7V ~ 5.5V a 5V/2A powersource is recommended
- Power output: USB 5V/1A
- Dimensions: 190mmx130mmx30mm
- Shell material: Iron
- Weight: 1.15kg - Device
- Operating temperature: 0℃-45℃
For more information please refer the user manual
