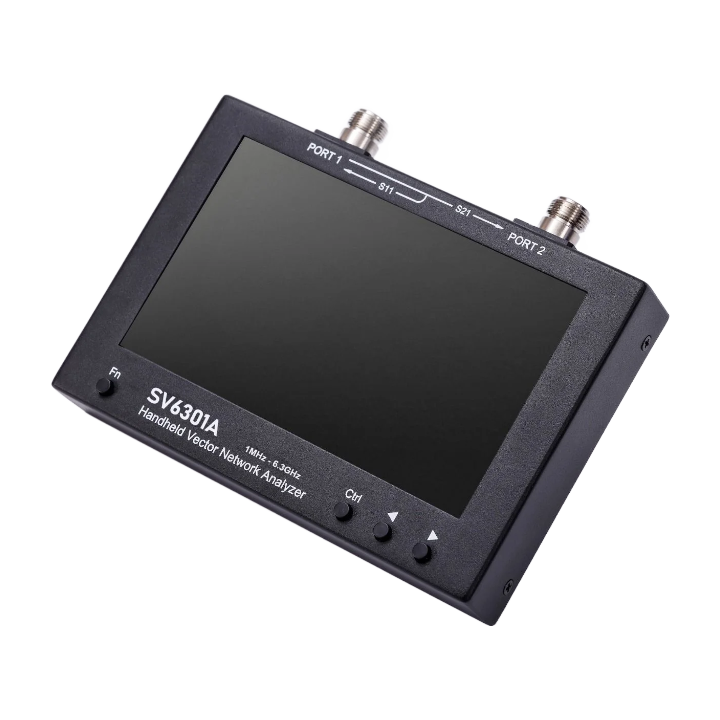

The SV6301A is a handheld Vector Network Analyzer (VNA) designed for SHF applications, offering a frequency range of 1 MHz to 6.3 GHz for precise S11 and S21 measurements. CE, FCC, and RoHS certified, it ensures reliable, high-quality performance. Featuring an N-type female RF connector with included N-to-SMA adapters, it delivers RF output from -40 dBm to -10 dBm and a maximum input sensitivity of -100 dBm.
The SV6301A supports sweep speeds of 500 points per second, up to 1001 sweep points, and dynamic ranges of up to 75 dB for S21 (<3 GHz) and 50 dB for S11 (<3 GHz). It performs advanced measurements such as VSWR, Smith chart, LogMag, phase, delay, Q factor, and more, making it ideal for antennas, cables, amplifiers, filters, and duplexers.

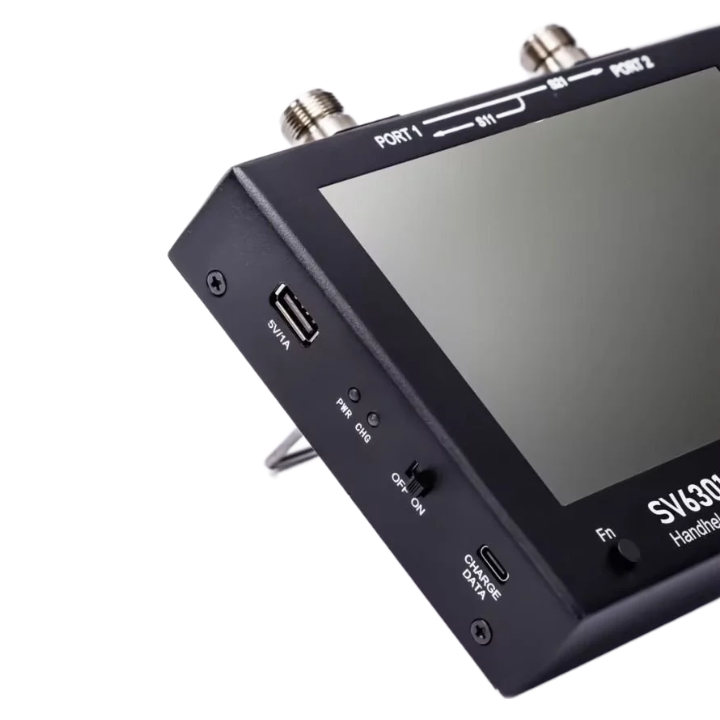

The device features a 7-inch IPS touchscreen with physical buttons, seven data traces, eight markers, and 18 calibration states stored on its 8 GB memory. Powered by dual 18650 batteries, it offers around three hours of operation and charges via USB Type-C. Housed in a durable iron shell, the SV6301A is compact, portable, and perfect for field or lab use.
NOTE: A USB-A to USB-C cable is required for charging; USB-C to USB-C cables may not work.
Features/ Technical Specifications:
- Frequency range: 1MHz ~ 6.3GHz
- RF power out: -40dBm ~ -10dBm, step：1dB

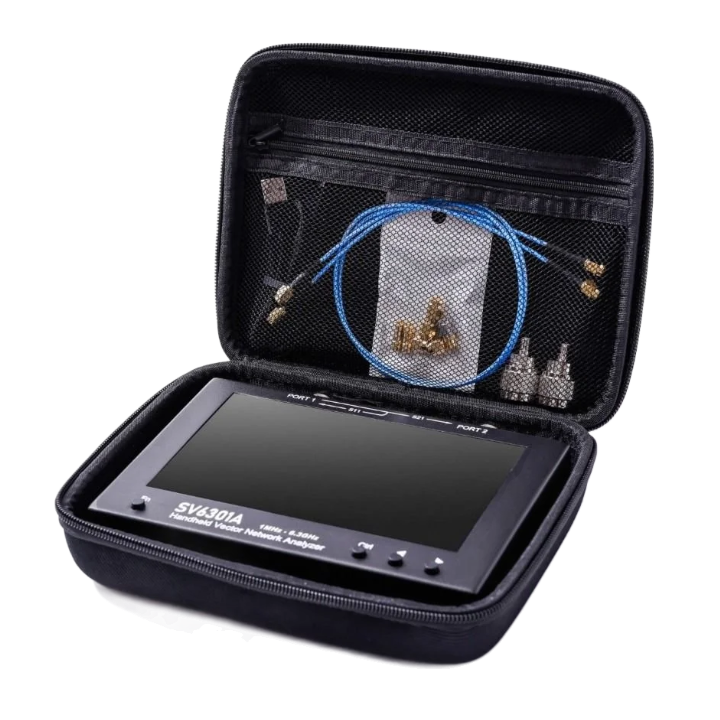

- RF connectors: N-type female, Come with N-to-SMA adapters
- RF power in: -100dBm (Max), DC < 5V
- Battery: 18650 lithium battery, 3.6V/3350mAh×2
- Charge/data port: USB Type-C
- Charge voltage: 4.7V ~ 5.5V, 5V/2A is recommended
- USB power output: 5V/1A
- Dimensions: 190mmx130mmx30mm, RF connector not included
- Shell material: Iron
- Weight: 1.2kg
- Operating temperature: 0℃-45℃
