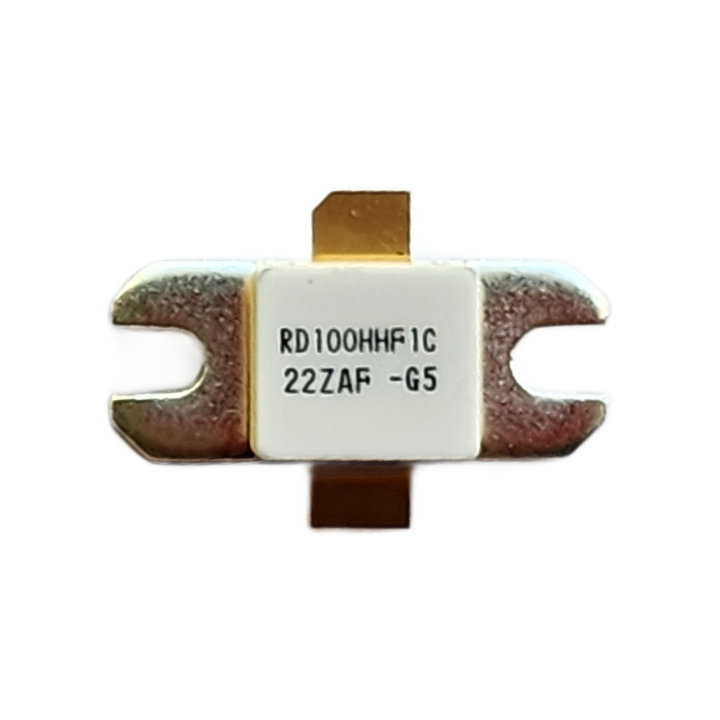

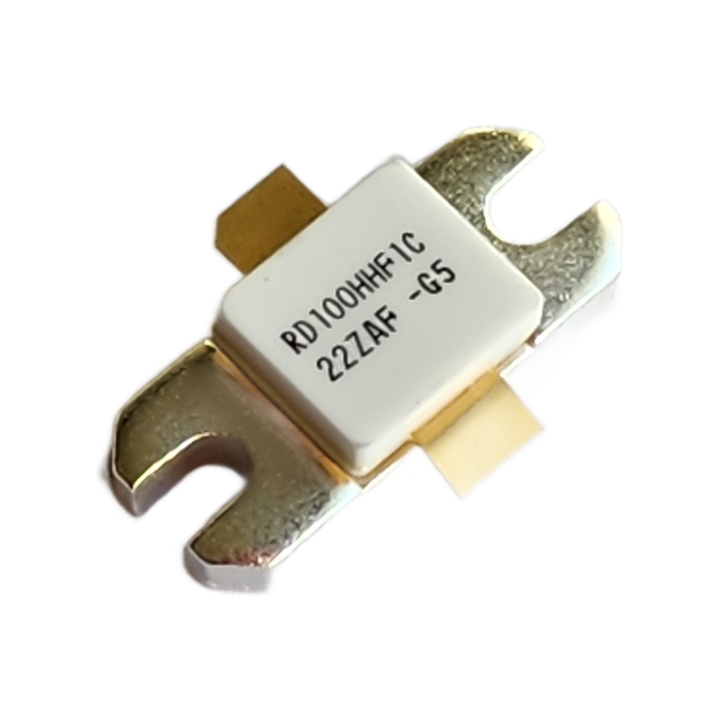

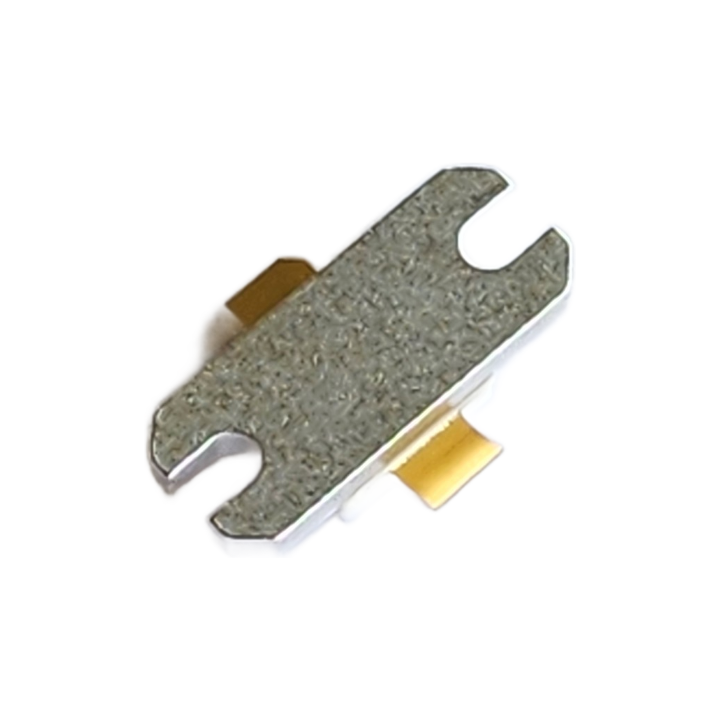

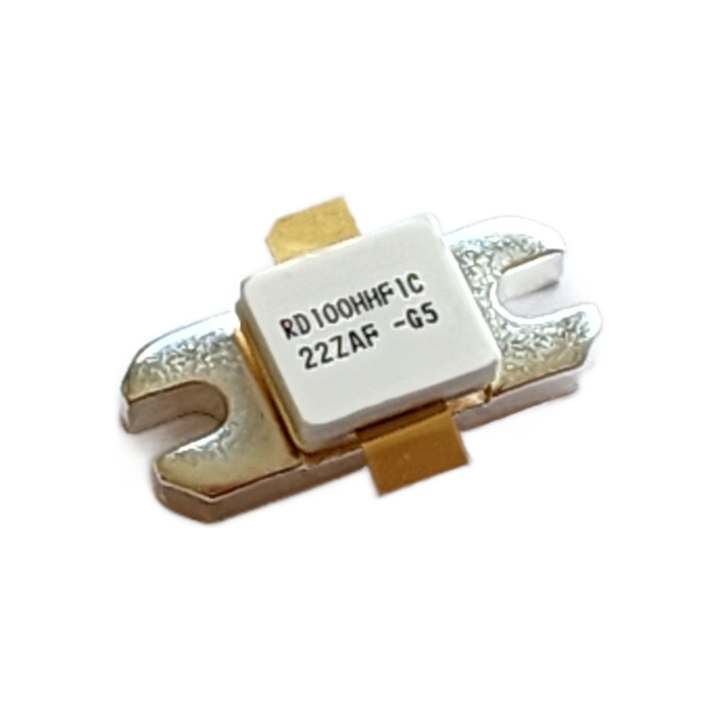

Original replacement Power Transistor for the XIEGU XPA125B Linear Amplifier - Mitsubishi RD100HHF1C Output Transistors. The XPA125B has 2 of these in the output stage.
Specifications According to the RD100HHF1C datasheet from Mitsubishi Electric:
- Transistor type: MOSFET
- Frequency: Up to 30 MHz
- Supply voltage (VDD): 12.5 V
- Output power (Pout): 100 W (typical 110 W)
- Input power (Pin): 7 W (typical)
- Drain efficiency: 55% minimum
- Gate threshold voltage (VTH): 1.5–4.5 V
- Package: Ceramic (large)
- Features: Integrated gate protection diode, high power gain, and high efficiency.

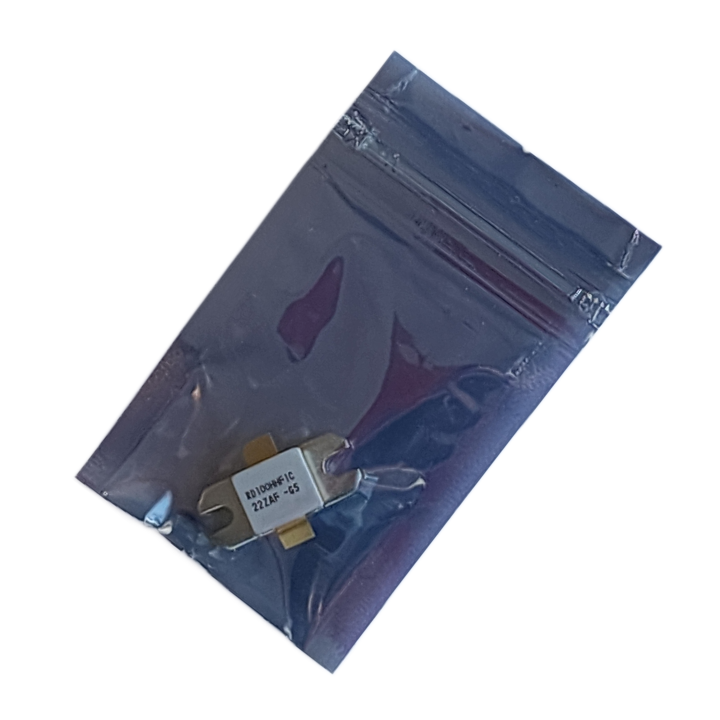

Package:
1x Replacement Power Transistor Mitsubishi RD100HHF1C
