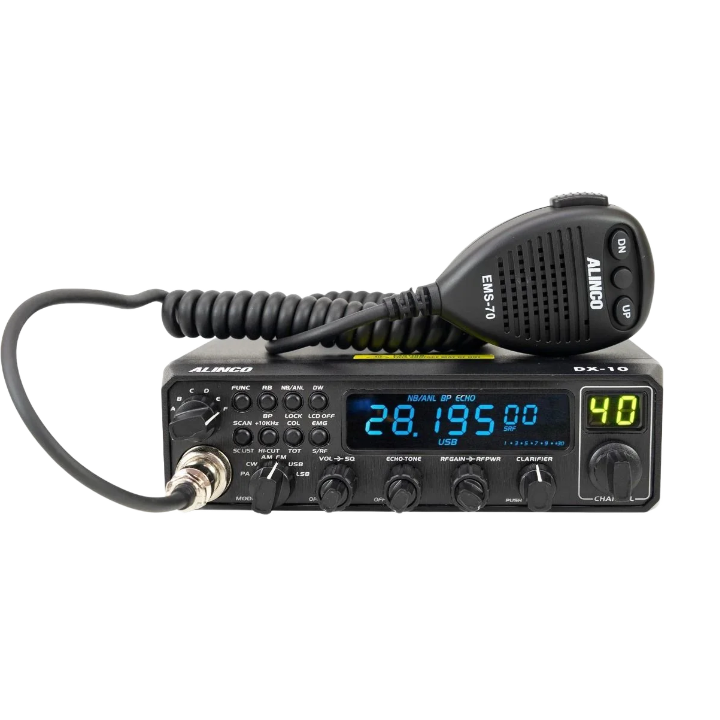

Alinco DX-10 (DR-135UK) 10m Multimode Transceiver - A really great value 29 MHz (10m) all mode AM/FM/SSB mobile transceiver from Alinco. Work the world on this amazing band, makes the perfect mobile station or add a suitable power supply and use at home.
For export customers, the DX-10 ( DR-135UK ) can also be PC programmable from 25 - 29.7 MHz
** RSM Licenced to Supply Unrestricted Radios # 259612 - Callsign ZL3TOO **
THIS UNIT WILL ONLY BE SOLD TO QUALIFIED AMATEUR RADIO OPERATORS AND MUST ONLY TRANSMIT ON AMATEUR FREQUENCIES. THE PURCHASER MUST PROVIDE PROOF OF THEIR AMATEUR RADIO QUALIFICATION. IF YOU DON'T HAVE AN AMATEUR RADIO (HAM) LICENCE PLEASE DON'T PURCHASE OTHERWISE WE WILL REFUND YOUR PURCHASE.
More information on gaining your Amateur Radio Licence.
Specifications:
- Frequency range (default): 28.000 - 29.700 MHz
- Max Frequency range: 25.000-29.90 MHz (programmable)
- Power Output: 1-12 watts FM/FM/CW 0-25 watts USB/LSB
- Operating mode: AM/CW/FM/LSB/USB
- Current: Transmit 6A max. Receive: 800mA (Max) 400 mA (squelched)
- Channel spacing: 10 Hz/100 Hz / 1 kHz / 10 kHz
- Memory: 40ch per band (up to 60 per band are programmable via optional software)
Features:
- Multi-colour display (7 selectable colours or rainbow mode) with backlight
- RF gain
- LCD S-meter
- SWR meter
- NB Noise Blanker and ANL function
- Clarifier for fine tuning
- PC programmable settings
- +10 KHz offset button
- Scanning features
- Dual Watch function
- External speaker socket (3.5mm)
- Jack for CW key
- CW Sidetone: 300Hz-3kHz in 10 adjustable steps
- Hi-Cut function (RX tone)
- Keypad lock
- Programmable time-out timer
- Over-voltage protection
- PA facility
- Microphone connector: 6-pin
- Antenna connector: PL-259 (SO239)
- Power requirements: 13.8 VDC + / -15%
- Dimensions: W-173 x H-51 x D-238 mm
- Weight: 1.5 kg
- The DX-10 can be programmed from your computer with the optional ERW-10 USB cable and software disk.
