Chelegance JHEX-6 HF 6-Band Hex Beam Antennas are a robust, high-performance, and user-friendly multi-band HF antenna, perfectly suited for amateur radio enthusiasts who demand superior performance.
These Chelegance JHEX-6 HF 6-Band Hex Beam Antennas are powerful, full-size 6-band Hex Beam antennas built for hams who want serious performance - whether you're into contesting, chasing DX, or talking with fellow hams around the globe. Covering the 20, 17, 15, 12, 10, and 6-meter bands, and rated for 2000 watts PEP, the JHEX-6 is ideal for DXing and high-duty-cycle operation.

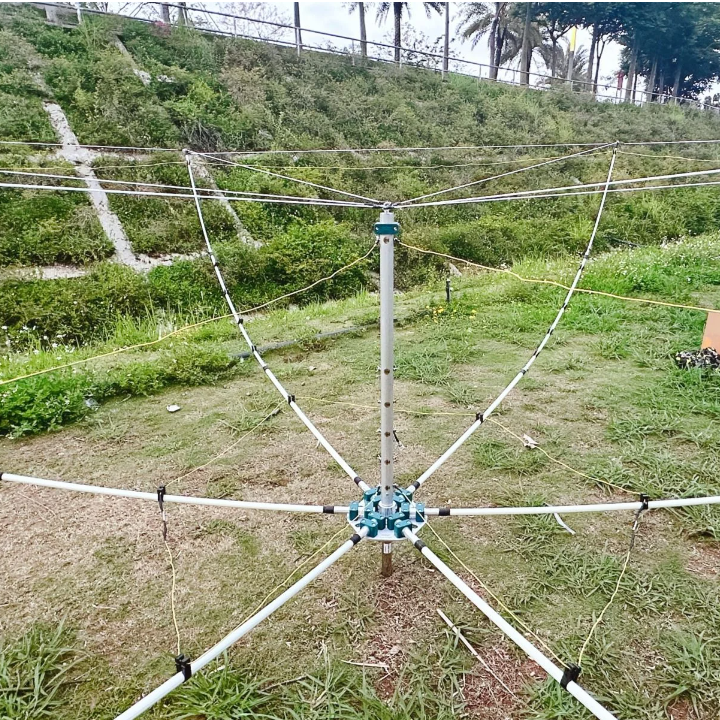

The JHEX-6 is engineered for rapid deployment, featuring a modular, tool-free design that allows for quick assembly and effortless installation by a single operator - ideal for stationary home installations, field operations, and solo deployments.
With full-size elements on each band, it delivers exceptional gain and directivity, making it a top-tier choice for demanding operators. A 1:1 balun ensures optimal feedline performance, while its lightweight construction - weighing just 12 kg - enhances portability and ease of setup.

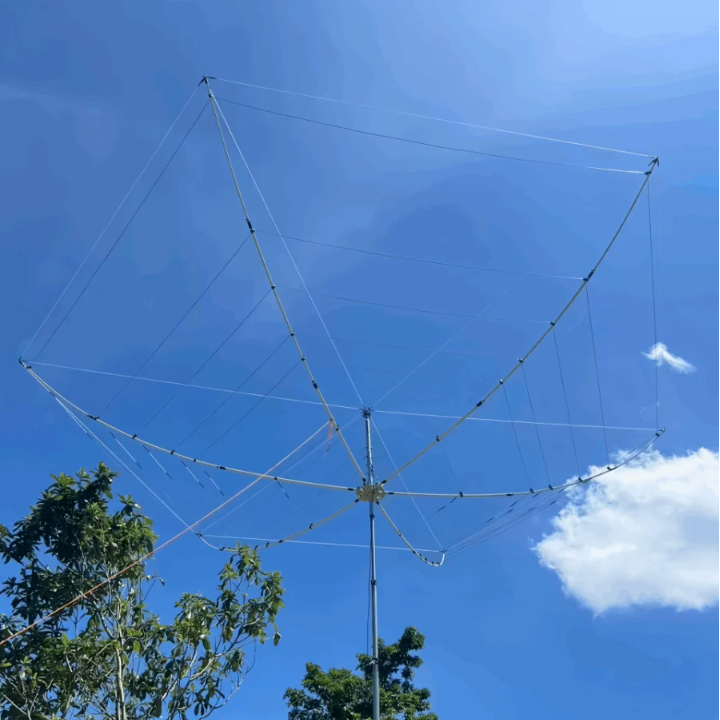

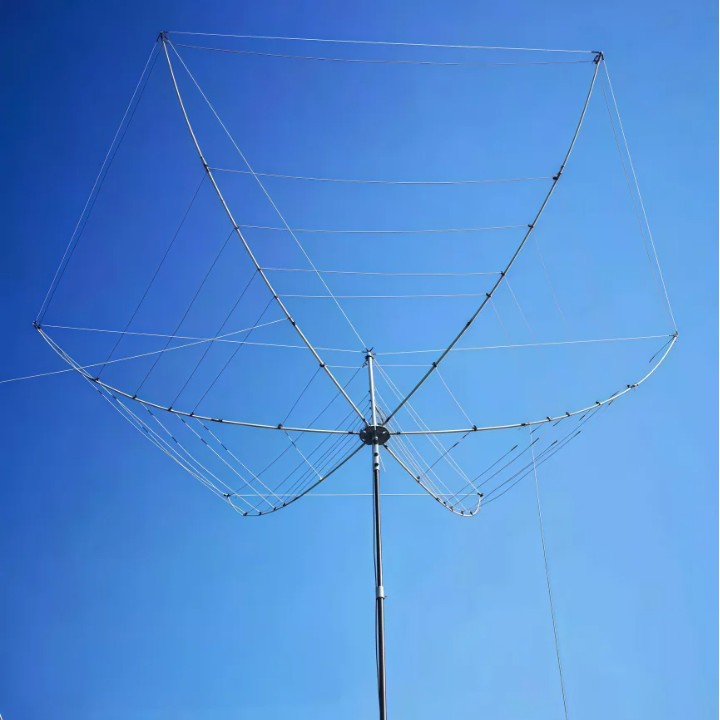

While it is shaped like a hexagon and technically classified as a hex beam, it is electrically a 2-element Yagi (featuring a driven element and a reflector) that has been bent inwards to save space.

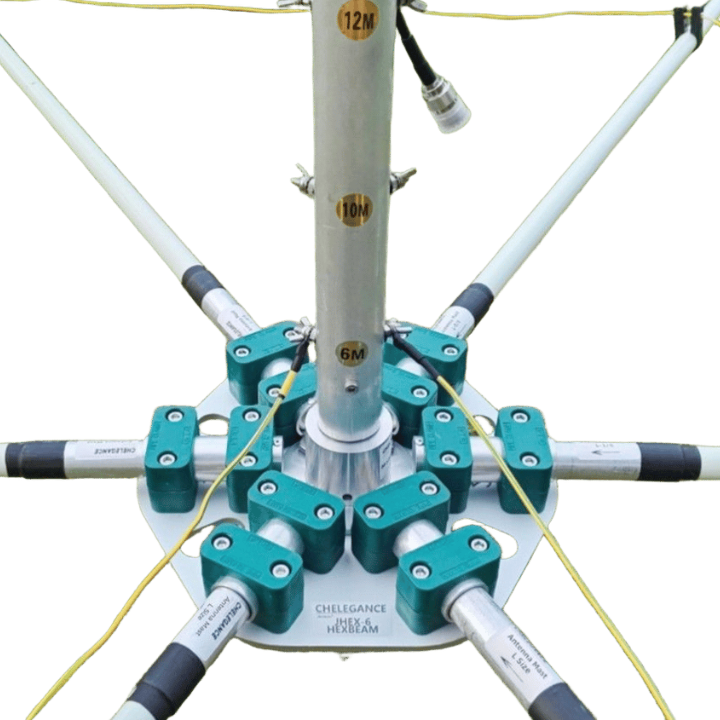

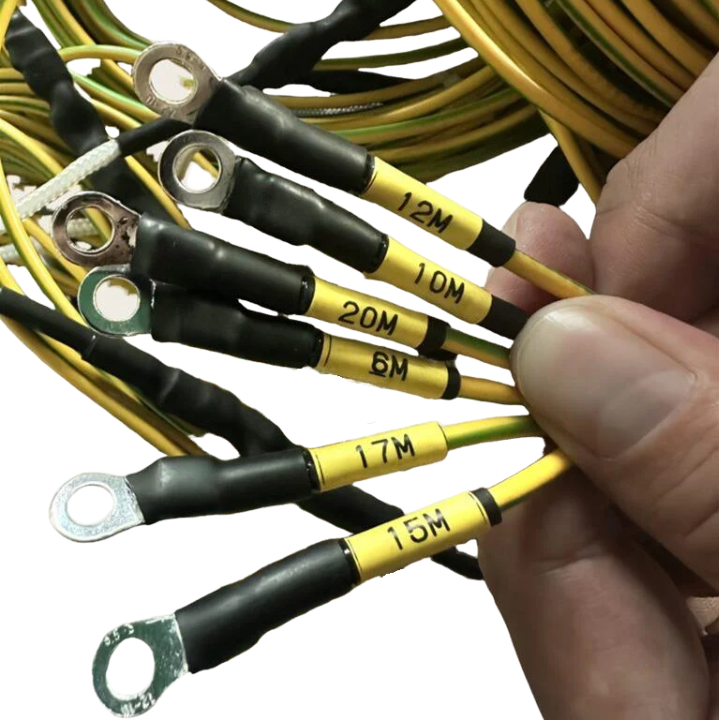

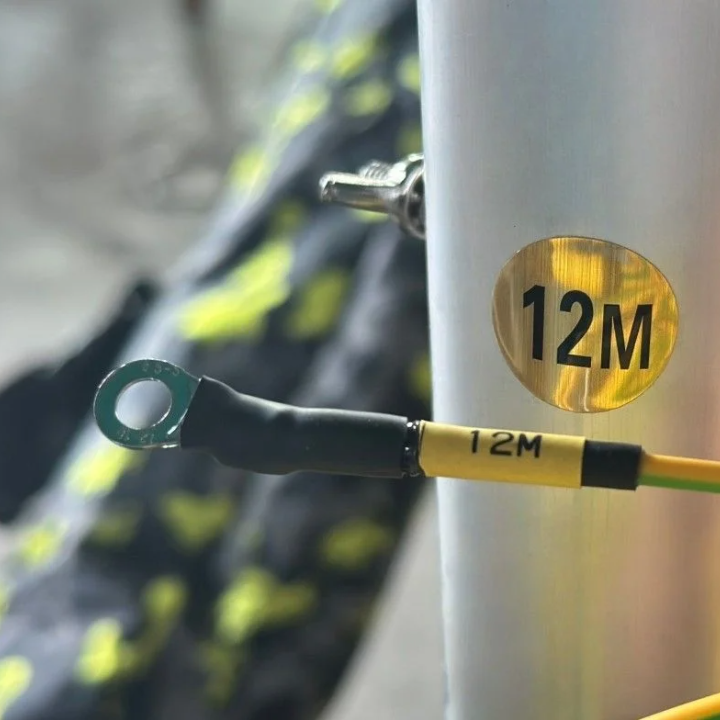

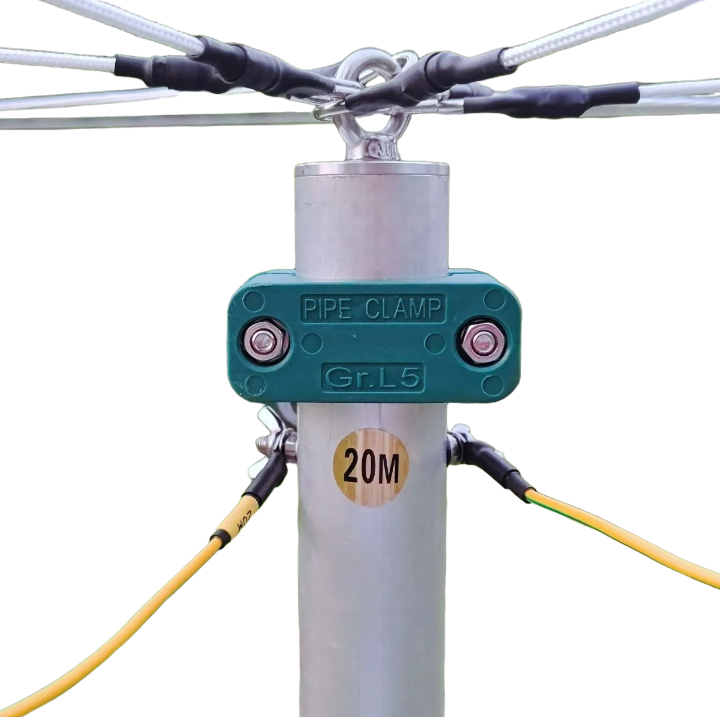

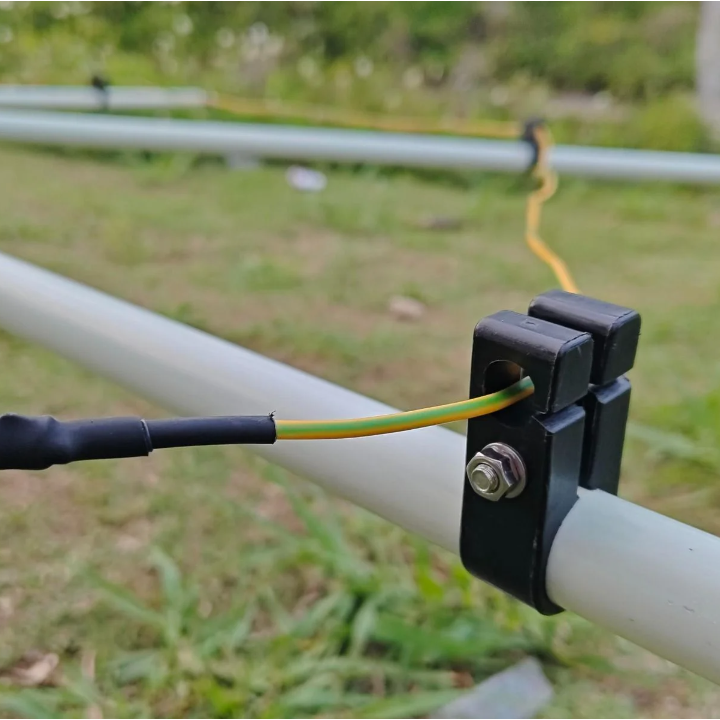

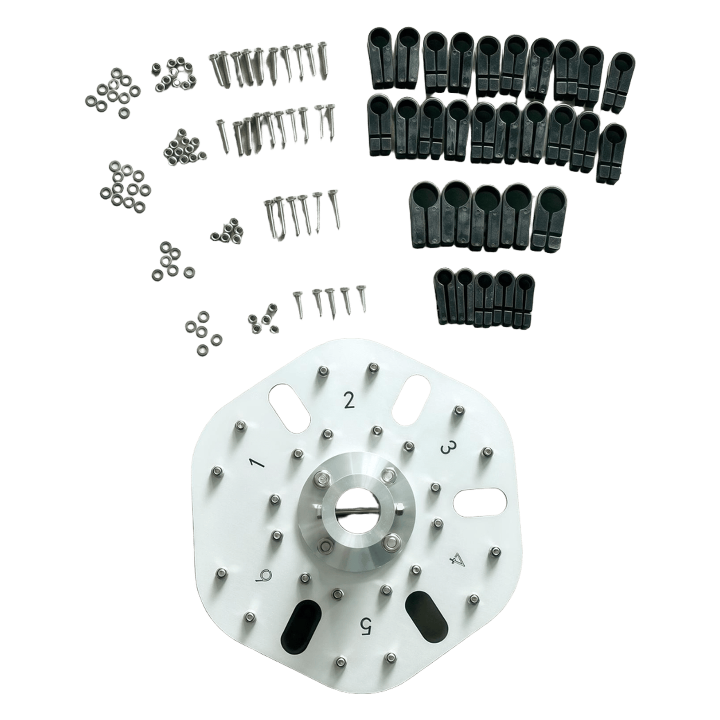

Built for long-term reliability, the JHEX-6 incorporates precision-molded cable lugs, a robust beam structure, and aluminium-reinforced plug-in joints with butterfly screw connections for fast, secure assembly. Its rugged 35mm 304 stainless steel base tube provides a dependable mast mounting solution, even in harsh environmental conditions.
Key Features:
- Band Coverage: Experience full-size performance across 6 Bands (20/17/15/12/10/6M).
- Forward Gain: 5 dBi
- Front-to-Back Ratio（F/B): 12–19 dB
- Power Handling: Built to withstand 2000 Watts PEP - ideal for DX'ing and high-duty-cycle operation.

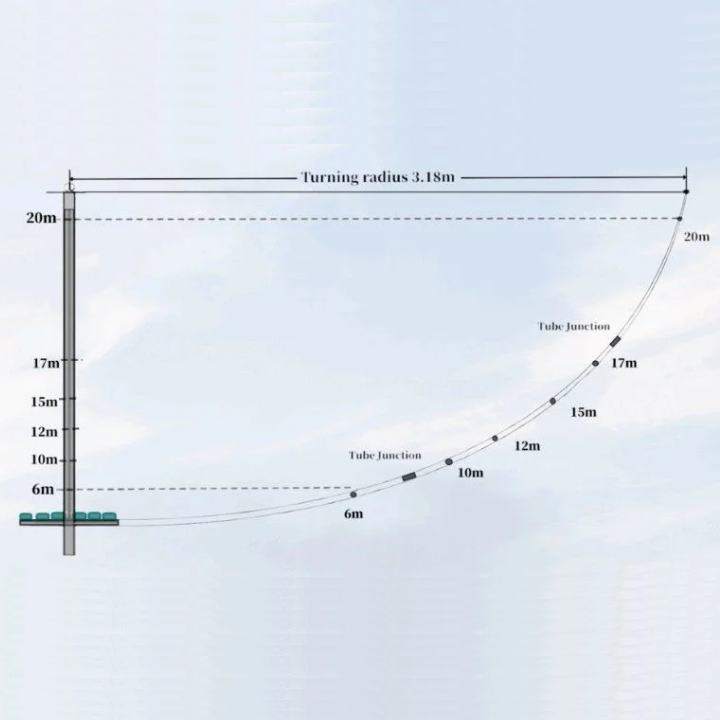

- Turning Radius & Overall Diameter: Tuning radius of the antenna when erected is 3.18 metres, resulting in an overall diameter of 6.4 metres when fully assembled.

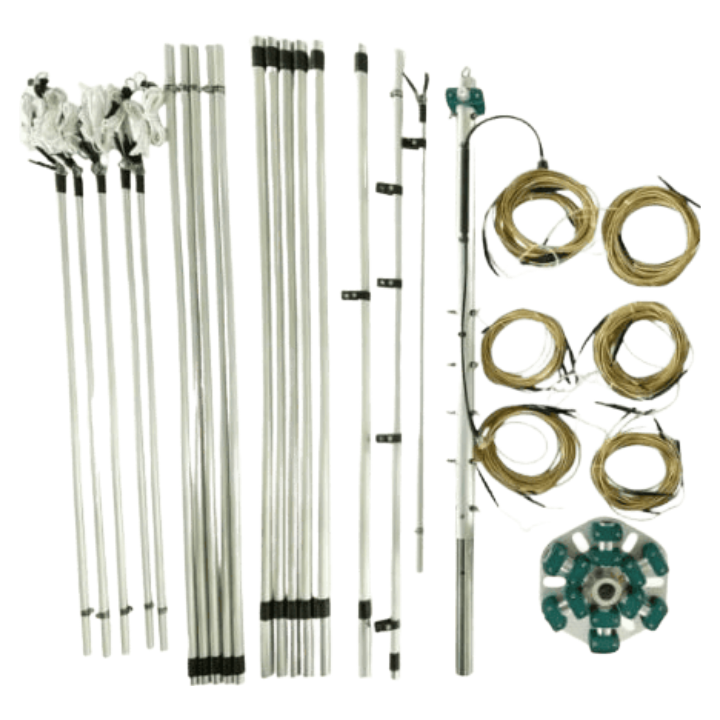

- Tool-Free Assembly: The innovative modular design assembles by hand, eliminating the need for any tools while maintaining stability.
Additional Features and Specifications:
- HF Beam Antenna Type: Hexagonal Directonal
- Band Coverage: Full-Size Elements for 20/17/15/12/10/6M
- Power Rating: 2000 Watts PEP
- Balun: 1:1 (Included)
- Feedline Connection: SO239 Female Socket
- Turning Radius: ≈ 3.18m
- Overall Diameter: ≈ 6.40m
- Full Height of Main Support: 1.29m
- Beam Height: 1.05m (from mounting base to top of main support after assembly)

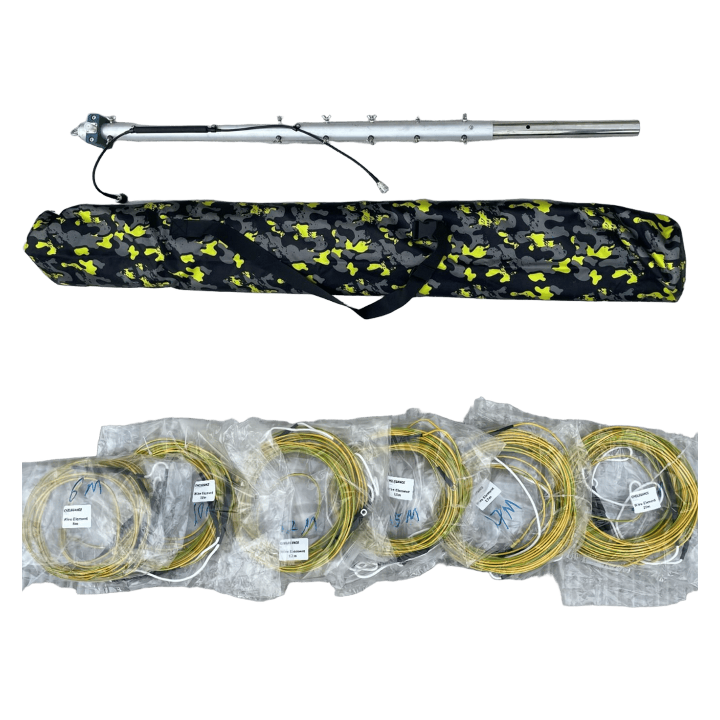

- Packaging Dimensions: 1x 1.4m x 0.16m x 0.16m, 1x 0.3m x 0.3m x 0.2m
- Weight: 12kg
