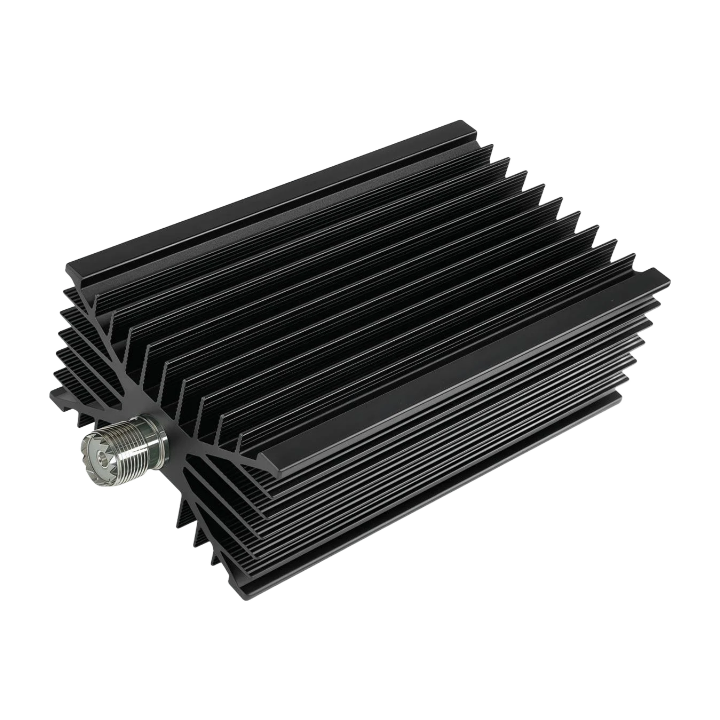

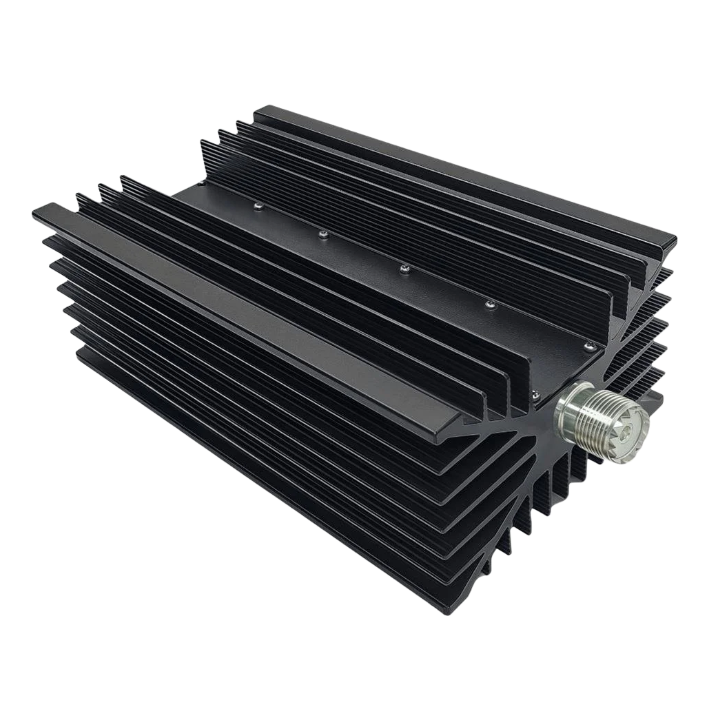

This JNC RADIO JLoad-200 is a high-power, passive air-cooled RF dummy load designed for the serious amateur radio operator or commercial communication service technician.
It serves as a 50-ohm electrical substitute for an antenna, allowing you to test a transceiver's power output and performance without actually radiating a signal over the air.
Are they build solid? Oh, YES, they're built to last! "JNC Radio Quality - Made by Hams, for Hams".
Key Features and Capabilities:
- Wide Frequency Range: Operates effectively from DC up to 520 MHz, making it an ideal tool for HF, VHF, and UHF applications.
- High Power Handling: Supports a maximum power input of 200 Watts, providing ample headroom for testing most modern desktop and mobile transceivers.
- Precision Impedance: Maintains a consistent 50-ohm load, ensuring accurate power output measurements and protecting your equipment from high SWR during testing.
- Efficient Thermal Management: Utilizes a specialized air-cooling design to dissipate heat effectively during bench testing sessions.
Common Applications:
- Equipment Verification: Safely measure your radio's actual power output and verify internal meter accuracy.
- Troubleshooting: Isolate issues by determining if a high SWR is caused by the radio/patch cable or the external antenna system.
- Transmitter Tuning: Perform necessary adjustments and "burn-in" tests without causing interference to other operators on the band.
Features and Specifications:
- Frequency Range: 0-520MHz
- Power Rating: 200 Watts (Continuous)
- Impedance: 50 ohm
- VSWR <1.2

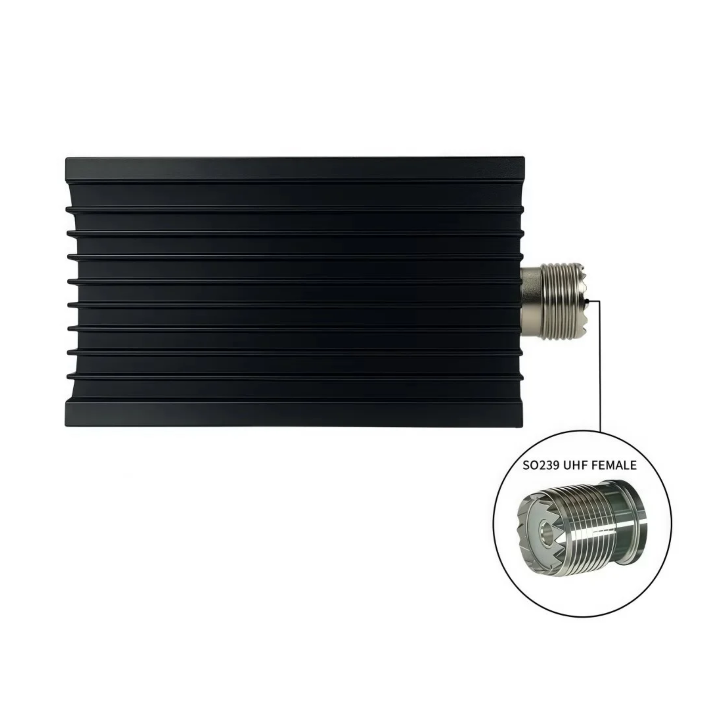

- Connector Type: SO-239
- Cooling: Passive Air cooled

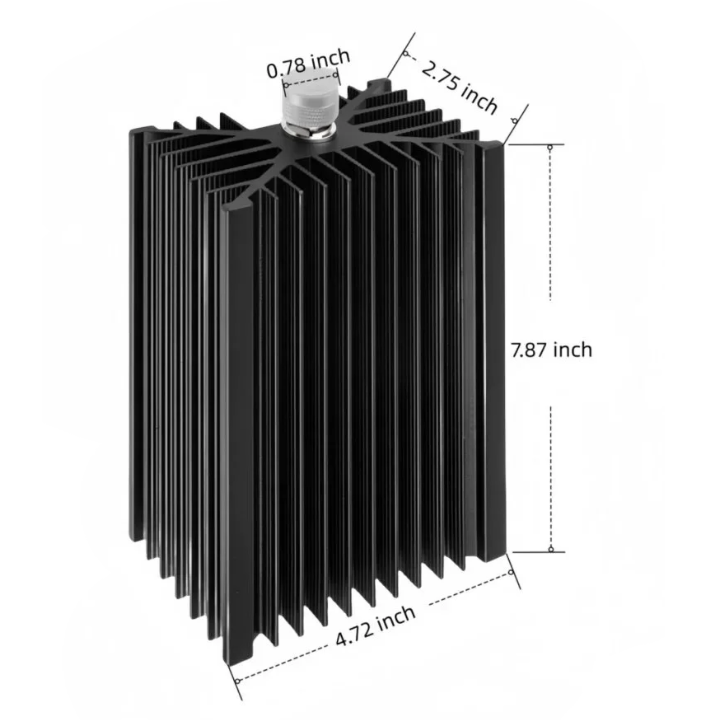

- Dimensions: 8.84 in. x 4.72 in. x 2.76 in.B
