The Komunica PWR-WD-230 is a broadband HF wire dipole antenna designed for broad frequency coverage without the strict need for an antenna tuner across its specified range.

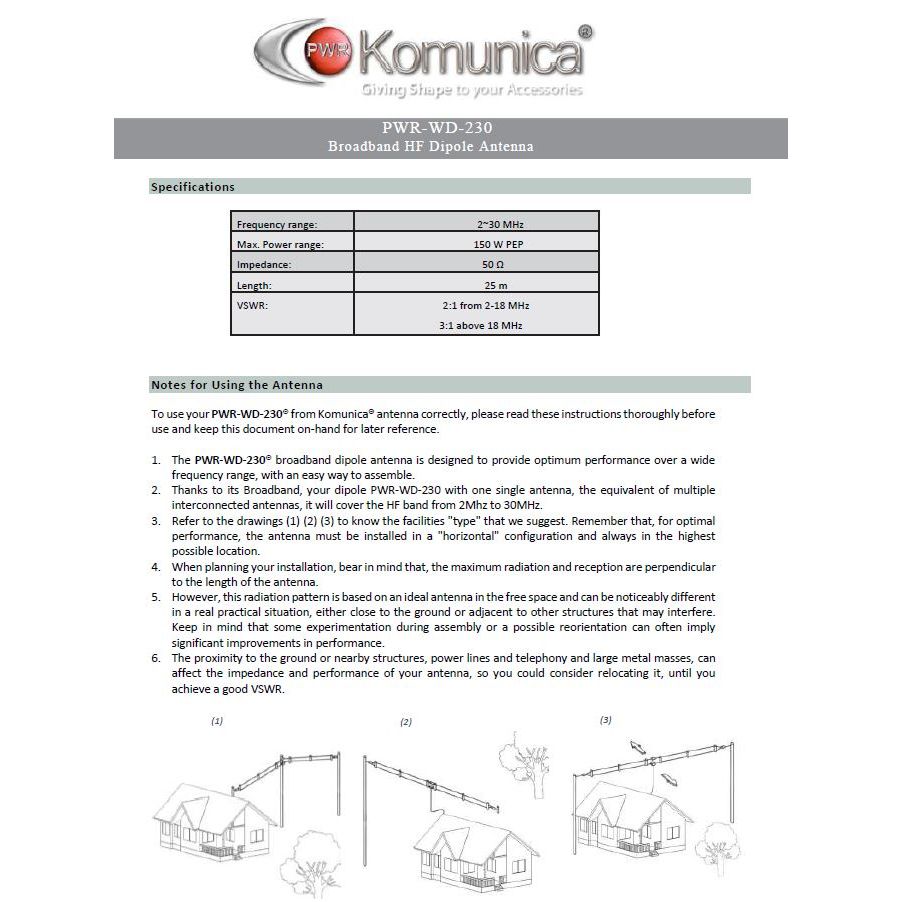

Specifications:
- Antenna Type: Broadband HF Folded Dipole
- Frequency Range: 2 MHz to 30 MHz
- Power Rating: 150 W PEP (Peak Envelope Power)
- Input Impedance: 50 ohm

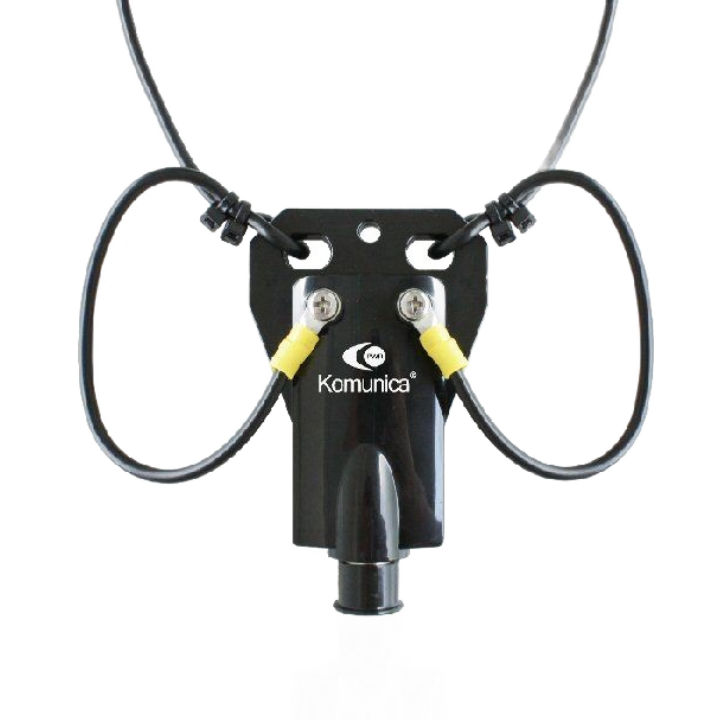

- Connector Type: UHF-Female (SO-239)
- Voltage Standing Wave Ratio (VSWR):
- 2 to 18 MHz: <2:1
- 18 MHz: <3:1
- Total Length: 25 meters
- Weight: Approx 3.1 kg
Package:
1x KOMUNICA PWR-WD-230 2 - 30 MHz Dipole Antenna
