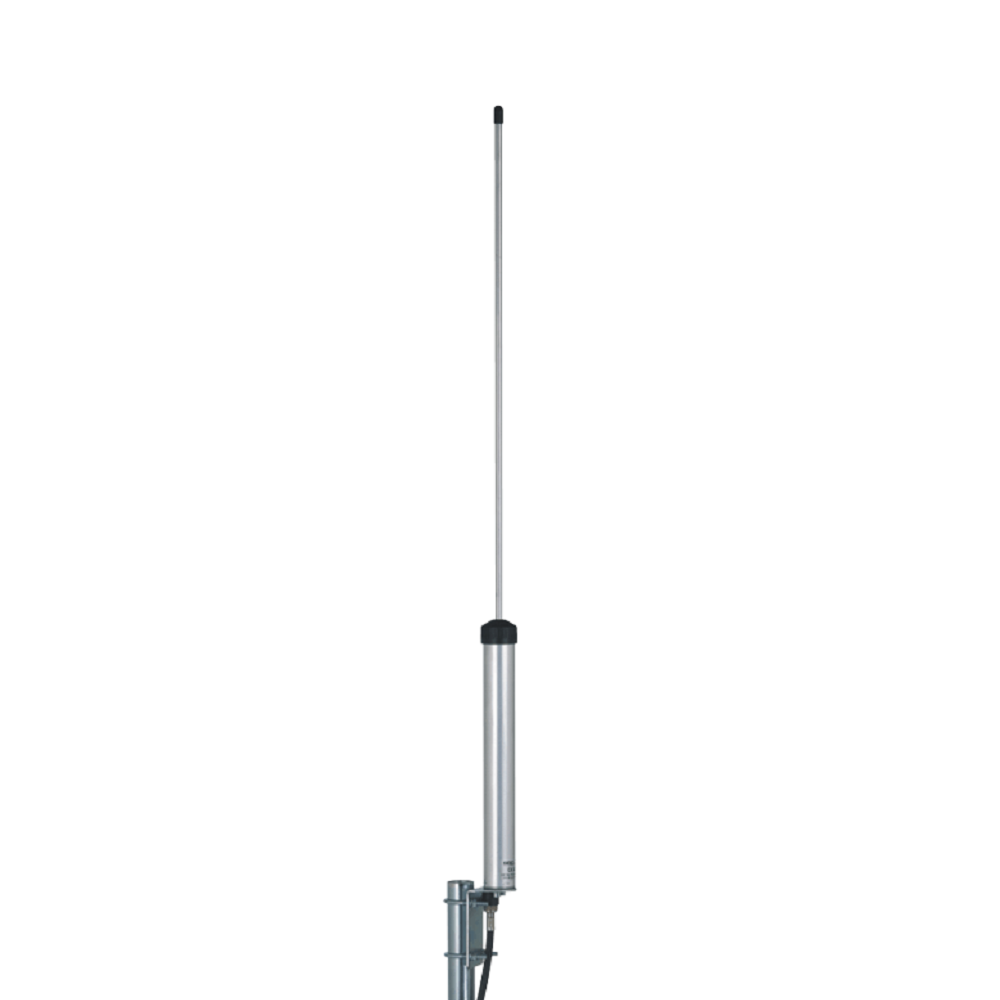

The Sirio CX168U is an ideal high quality base station antenna for marine or commercial bands.
Specifications:
- Type: 3/4 λ coaxial J-pole
- Radiation: Omnidirectional
- Polarization: Linear vertical
- Systems: 168 - 172 MHz
- Gain: 4.15 dBi
- SWR: 168 - 172 MHz ≤ 1.5
-
Max Power: 250 W (CW)
- Grounding protection: DC-Ground

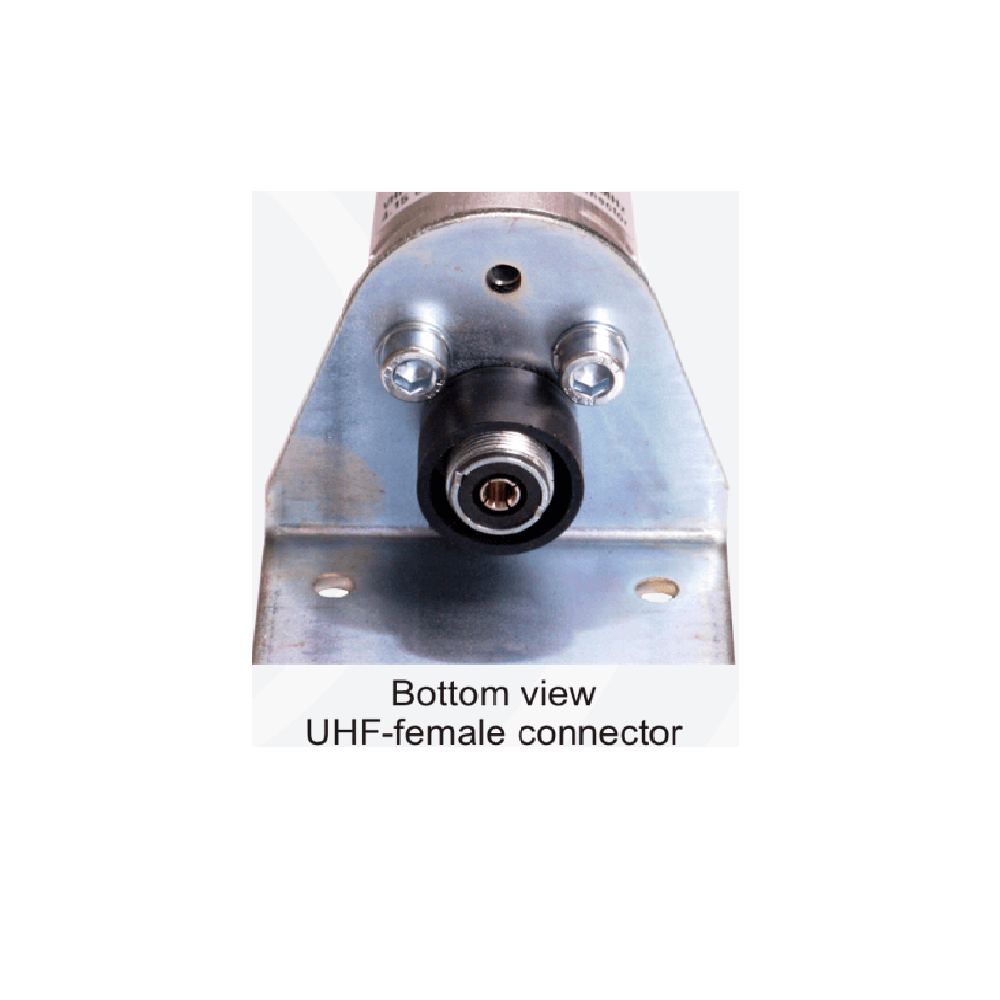

- Connector: UHF-female (SO-239)
- Materials: Aluminium, Brass, Stainless steel, Nylon
- Height (approx): 1.395 metres
- Weight (approx): 0.810 Kg
- Mounting type: Mast up to 45mm pipe diameter
Package:
1x SIRIO CX168U 168 - 172 MHz 3/4λ 4.5dBi Omnidirectional Coaxial J-pole
