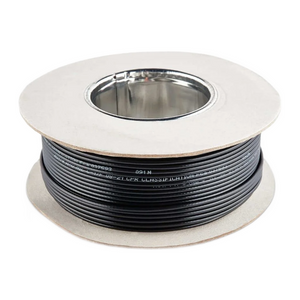

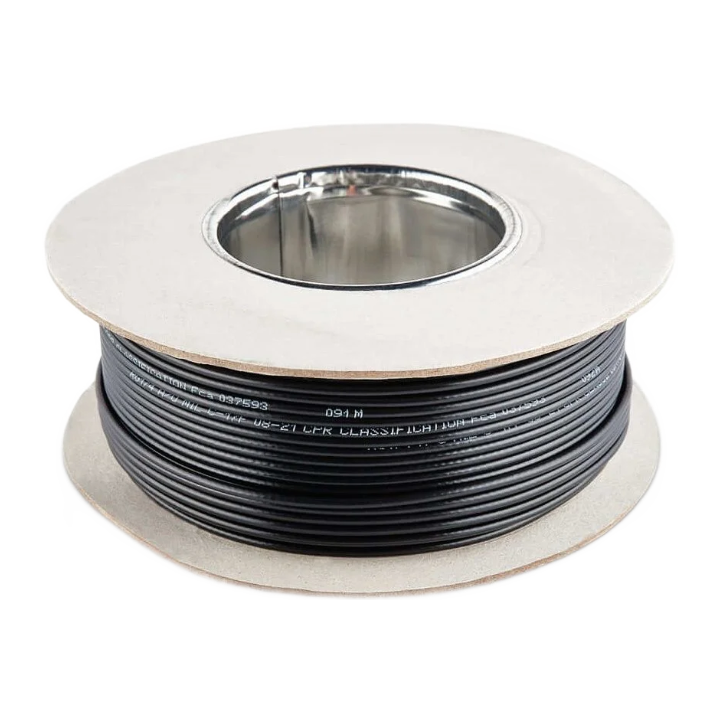

TECHOMAN Per Metre High Quality Precut Antenna RG174 / RG-174 Coaxial Cable. Super thin super quality miniature coax - ideal for discreet installations
Key Features/Specifications:
- Cable Diameter: 2.8mm nominal
- Rated Temperature: 70°C
- Conductor Resistance: ≤337Ω /km
- Insulation Resistance: >10,000MΩkm
- Nominal Velocity Ratio: 67%
- Capacitance: <105pF/m
- Impedance: 50 ±3Ω
- Attenuation: (dB per 100 metres @ 20°C ±10%)
- 10MHz < 9.5
- 50MHz < 18
- 100MHz < 27
- 200MHz < 40
- 400MHz < 59
- 1,000MHz < 98.5
Package:
1 Metre Antenna Coaxial Cable (ordering 12x will be 12 metres)
