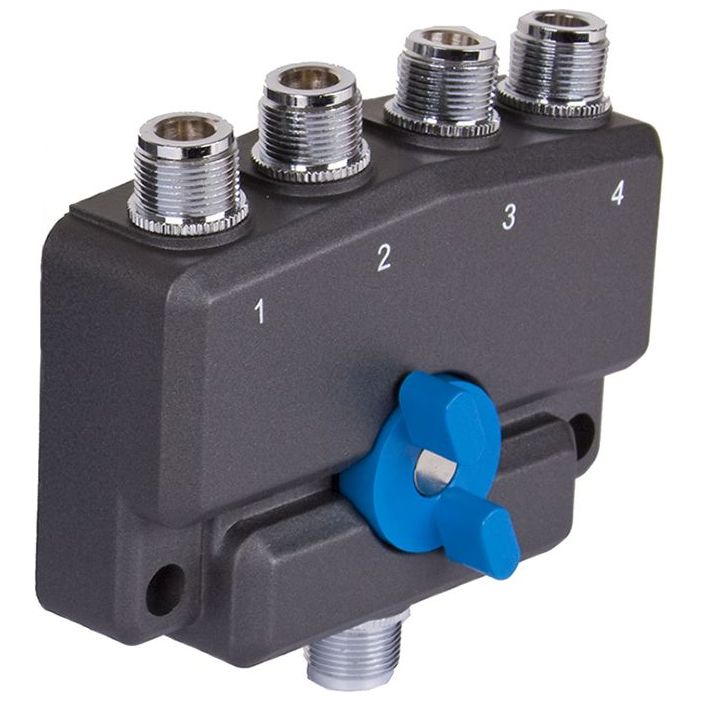

The Watson CX-SW4N is a premium 4-way coaxial switch with precision N-Type connectors, designed for switching between multiple antennas or radios with minimal signal loss and excellent isolation. Covering DC to 1500 MHz, it is ideal for HF, VHF, and UHF operators who demand reliable, high-performance RF switching.
Key Features/Specifications:
- Connection: N-Type sockets – 1 input, 4 outputs
- Frequency Range: DC to 1500 MHz
- VSWR: < 1.1:1 (DC–500 MHz), < 1.2:1 (500–1500 MHz)
- Insertion Loss: < 0.1 dB (DC–500 MHz), < 0.2 dB (500–1500 MHz)
- Isolation: > 60 dB (DC–500 MHz), > 50 dB (500–1500 MHz)
- Max Power Rating: 1.5 kW (DC–30 MHz), 1 kW (30–150 MHz), 500 W (150–500 MHz), 250 W (500–1000 MHz), 150 W (1000–1500 MHz)
- Type: 5 x N sockets
- Weight: 913g
