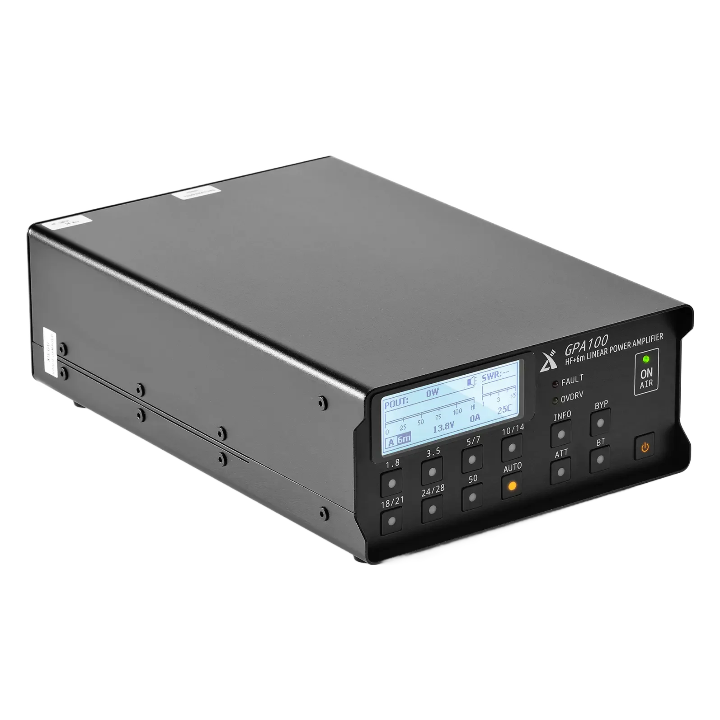

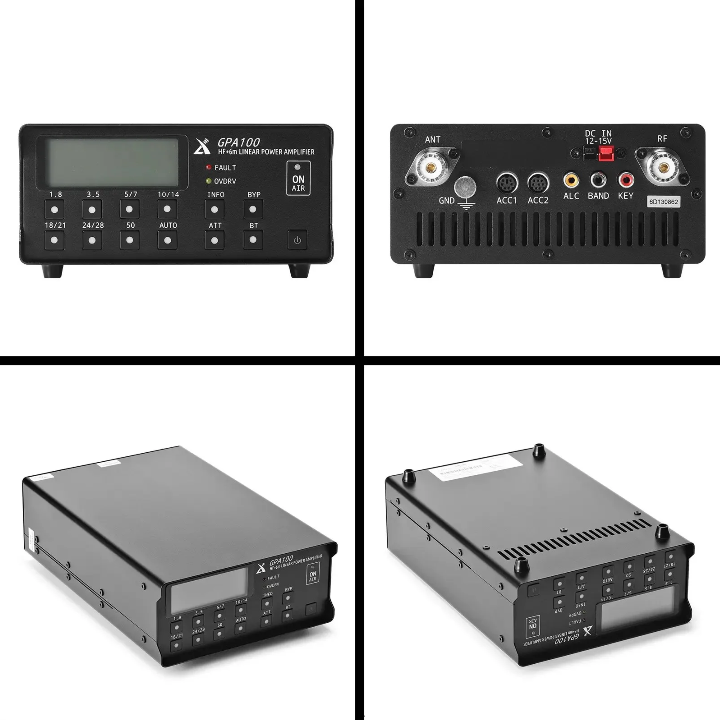

The Xiegu GPA100 is the latest model solid-state linear amplifier from Xiegu that provides up to 100 watts of output power, designed to enhance amateur radio performance with reliable strength and user-friendly operation. It delivers clean, high-quality 100W output (80W on 6 meters) across a broad 1.8–54 MHz frequency range. With its advanced circuitry, the GPA100 offers improved efficiency and reduced distortion, ensuring excellent signal clarity for SSB and digital communications.
** RSM Licenced to Supply Unrestricted Radios # 259612 - Callsign ZL3TOO **
THIS UNIT WILL ONLY BE SOLD TO QUALIFIED AMATEUR RADIO OPERATORS AND MUST ONLY TRANSMIT ON AMATEUR FREQUENCIES. THE PURCHASER MUST PROVIDE PROOF OF THEIR AMATEUR RADIO QUALIFICATION. IF YOU DON'T HAVE AN AMATEUR RADIO (HAM) LICENCE PLEASE DON'T PURCHASE OTHERWISE WE WILL REFUND YOUR PURCHASE.
More information on gaining your Amateur Radio Licence.
Features:
- High-Efficiency Linear Power: Provides a clean and stable 100W output (80W on 6 meters) with excellent efficiency and minimal distortion. Its durable solid-state architecture delivers outstanding signal integrity, making it ideal for SSB and a wide range of digital modes—even under full load.

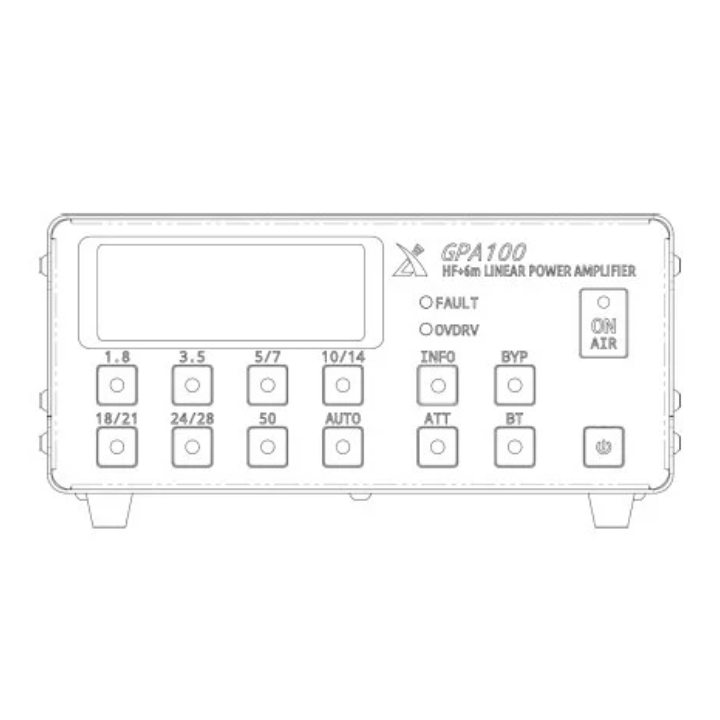

- User-Friendly Band Control: Equipped with dedicated hardware buttons for seven amateur bands (1.8–50 MHz) and clear status LEDs that light up when a band is selected, allowing quick and accurate manual switching. For operators who change frequencies often, AUTO mode enables smooth, automatic band selection.
- Smart Management & Full Protection: An intelligent control system and advanced cooling ensure stable performance. Built-in safeguards protect against high SWR, overheating, overcurrent, overpower, and low efficiency, with clear fault messages shown on the display for peace of mind.

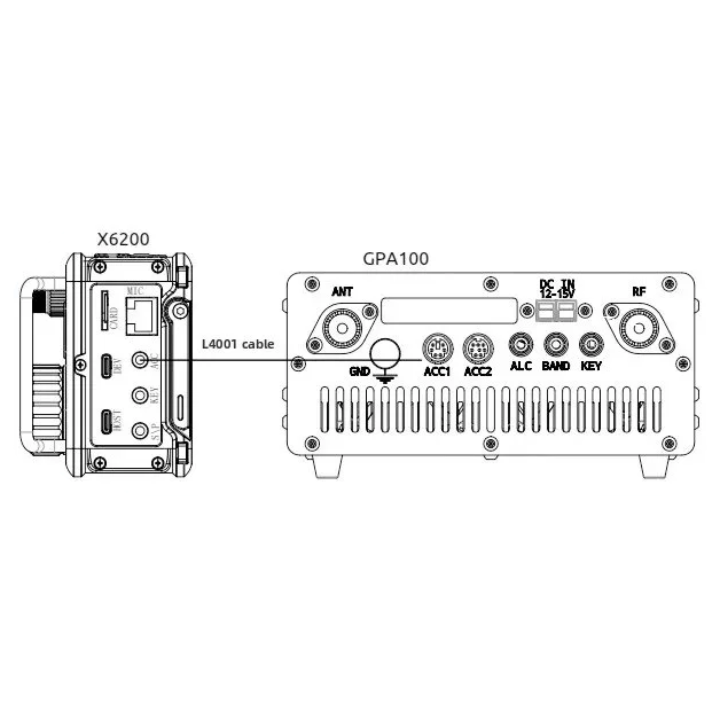

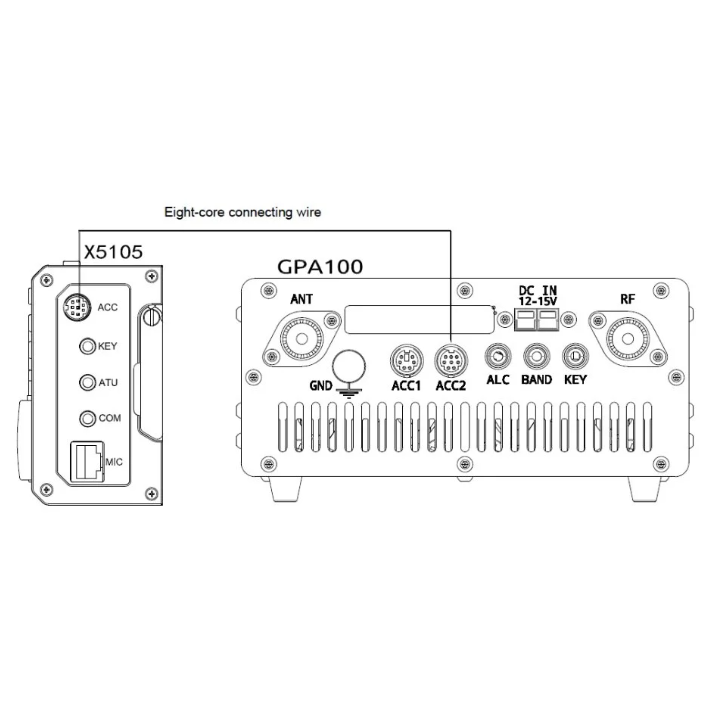

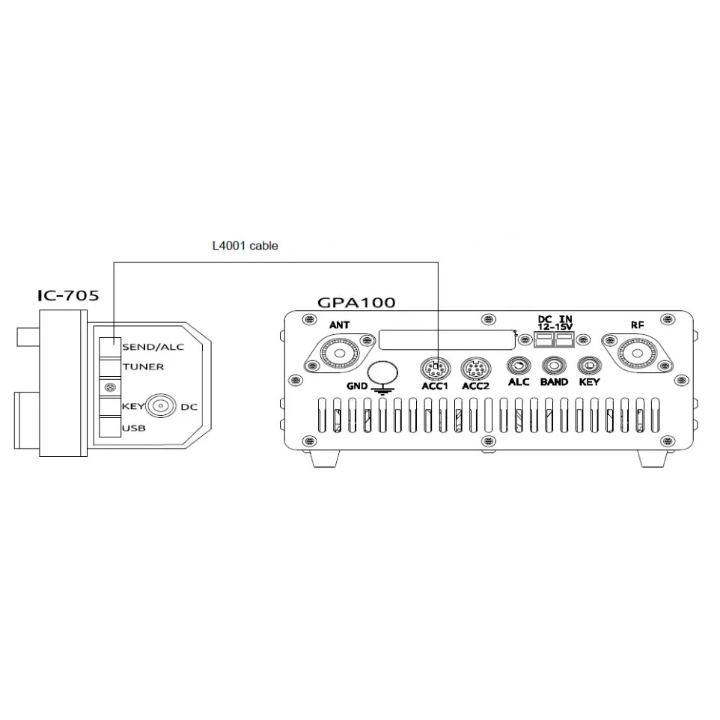

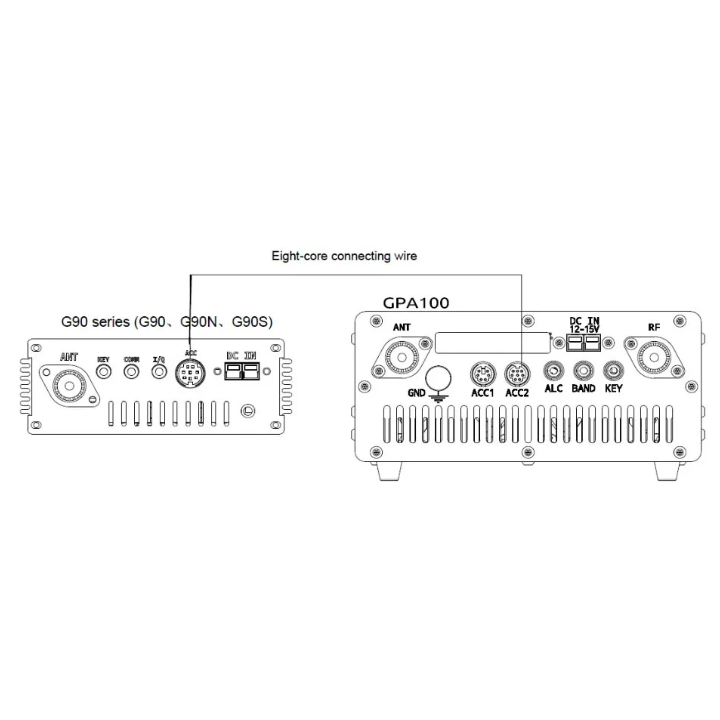

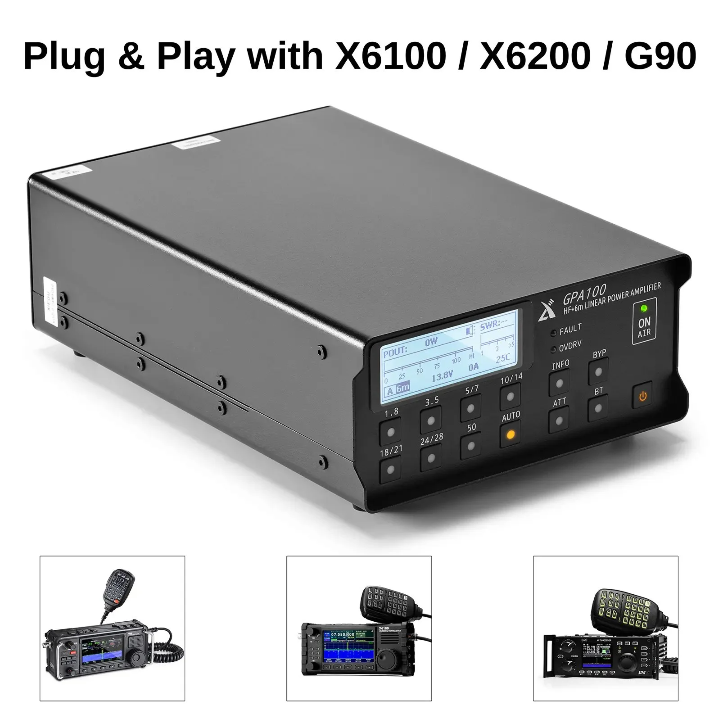

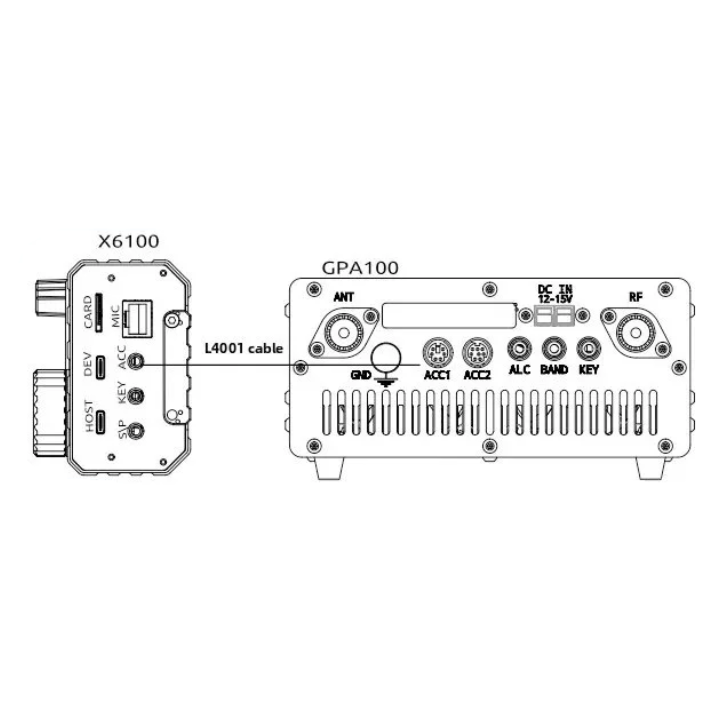

- Seamless Radio Compatibility: Optimized for integration with Xiegu transceivers like the G90, X6100, X6200, and IC-705, as well as other low-power (QRP) rigs. Supports both automatic band switching and ALC (Automatic Level Control) when connected.
- Portable Yet Rugged Design: Engineered with a lightweight, space-efficient build for easy handling and transport. Suitable for permanent shack setups as well as portable and field operations.

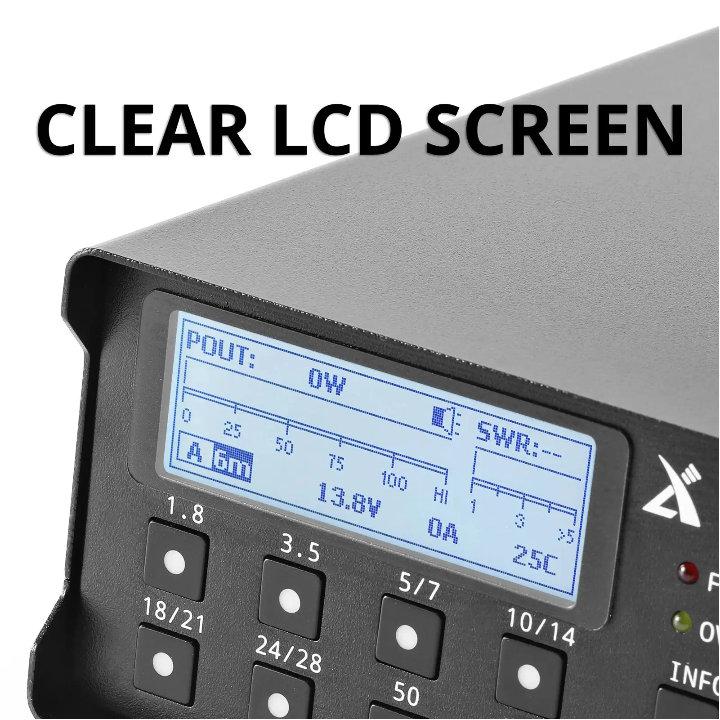

- Comprehensive Status Display: A bright LCD screen provides real-time monitoring of key parameters such as output power, SWR, operating mode (AUTO/MANUAL), selected band, input voltage, current draw, and internal temperature.
Technical Specifications:
- Frequency Range: 1.8 ~ 54.00 MHz
- Maximum RF Output Power: less than 29.7 MHz: 100W (±1dB), 50 ~ 54 MHz: 80W (±1dB)
- Maximum Operating Temperature: ≤55°C
- Overall Gain: less than 29.7 MHz: 14dB (±1dB), 50 ~ 54 MHz: 12dB (±1dB)
- Spurious Suppression: ≥50dB
- Supply Voltage: 12.0 ~ 15.0V DC (Negative ground)
- Current Parameters: Standby - 300mA (Max), Emission - 25A (Max)

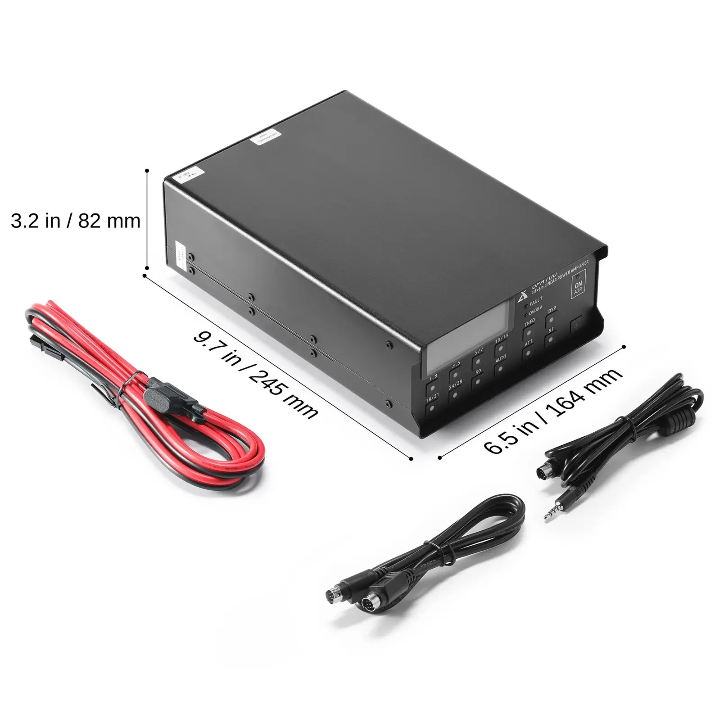

- Body Size: Approx. 9.65 x 6.46 x 3.23 inches | 245 x 164 x 82 mm (L x W x H, excluding protrusions)
- Weight: Approx. 5.73 lbs | 2600g
